The best science fair circuit projects teach real concepts by testing one variable at a time and measuring what changes. Strong choices include resistor experiments, battery-voltage comparisons, timed-output circuits, and sensor investigations because students can collect data, graph results, and explain the circuit behavior clearly.
Last updated: July 3, 2026.
Why some circuit fair projects feel weak
A lot of circuit science fair ideas look interesting but do not actually function as fair projects. Students build something that lights up, buzzes, or moves once, but they never test a real question. That might be a fine demonstration, but it is not a strong investigation.
The better question is not "What should I build?" It is "What circuit idea am I trying to test?" Once that answer is clear, the project becomes easier to measure, explain, and defend.
What a real science fair circuit project needs
The Science Buddies project question guide is helpful because it emphasizes that a project should measure changes to important variables using quantities such as voltage, energy, or time. That is exactly the standard students need for circuit topics.
The companion Science Buddies variables guide is even more direct: a fair experiment should usually have one independent variable, a measurable dependent variable, and controlled conditions that stay constant. That framework keeps a project from turning into random tinkering.
Project ideas that teach real circuit concepts
| Project idea | Variable to change | What to measure | Concept taught |
|---|---|---|---|
| Resistor experiment | Resistor length or resistance value | Brightness, current, or voltage drop | Resistance |
| Battery comparison | Battery type or charge level | Voltage under load or runtime | Voltage and power behavior |
| Sensor investigation | Light level, distance, moisture, or sound level | Output reading or trigger point | Input and response |
| Timing circuit test | Resistor or capacitor value | Delay length or pulse rate | Timing and control |
Resistor projects are stronger than they look
Students often ignore resistor-based projects because they seem too simple. That is a mistake. The Science Buddies pencil resistor project is a good example of a concept-first investigation. Students change the resistor they create and test how that affects a lightbulb in a simple circuit.
That kind of project is valuable because it gives students a real variable, a repeatable setup, and a clear explanation target. It also connects naturally to what resistance means and to measurement-focused follow-ups such as how to measure resistance.
Battery and measurement projects build stronger explanations

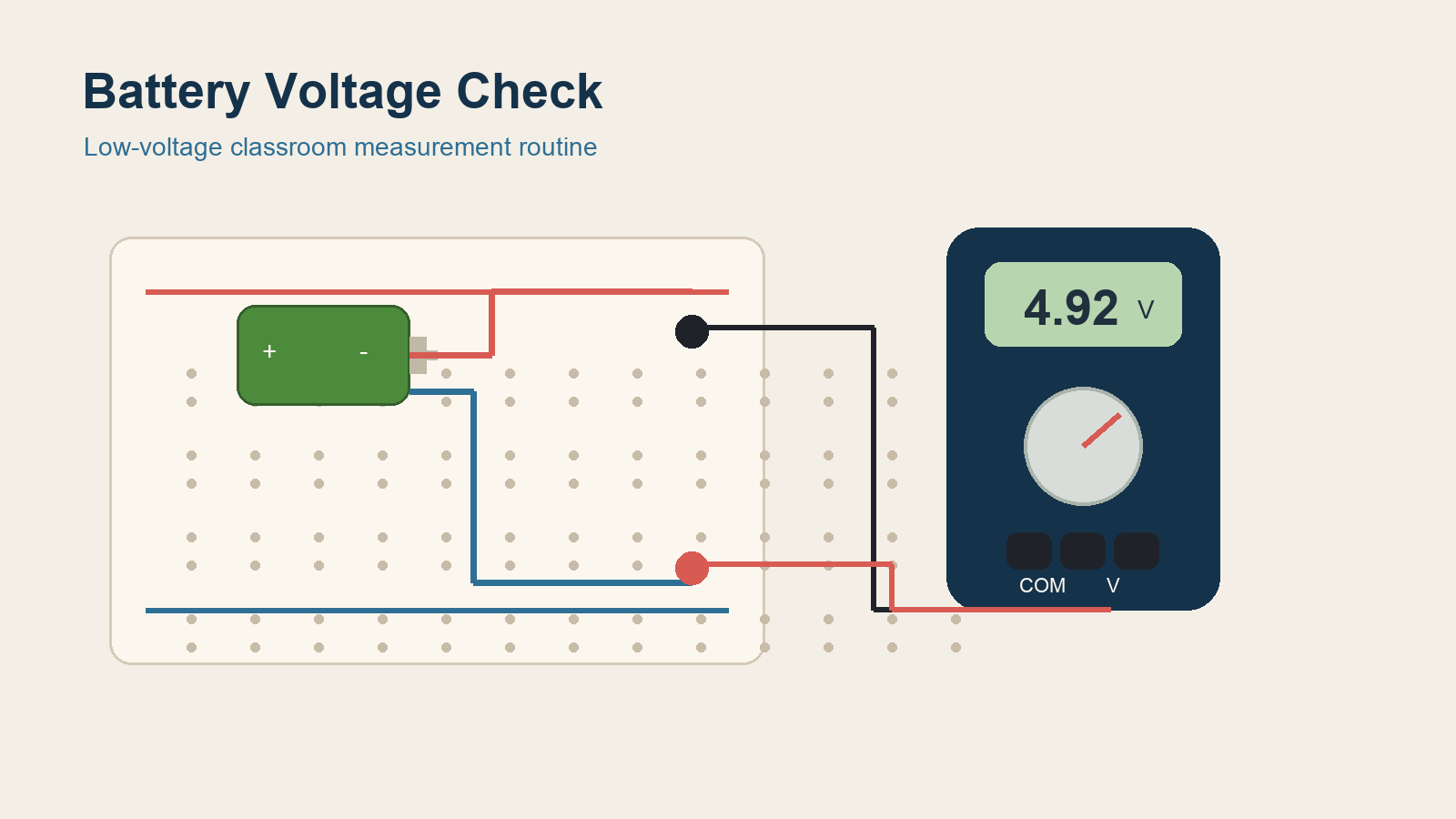

Another strong path is to investigate how battery condition or battery choice affects circuit behavior. Students can compare readings, runtime, or LED performance while keeping the rest of the circuit unchanged. That makes the fair project about evidence, not assumptions.
This kind of investigation pairs well with how to measure battery voltage in a classroom circuit, what voltage is, and what current means. Students can predict first, measure second, and then explain why their prediction held up or failed.
Sensor projects work well when students collect data over time
Sensor projects become much stronger when students move past yes-or-no output and start recording data. The TeachEngineering sound detection and soundproofing activity is useful because students gather readings over time and analyze patterns with graphs and descriptive statistics.
That same structure works with light, moisture, or distance sensing. A student can test how much light is needed to trigger an output, how quickly readings change, or which material creates the biggest measurable difference. The concept is no longer "my sensor worked." The concept becomes "this variable changed the measured response in this way."
How to choose a better science fair question
- Pick one circuit idea you genuinely want to explain.
- Change one variable at a time.
- Measure the result with numbers, not just opinions.
- Repeat the test enough times to notice a pattern.
- Write the conclusion around the concept, not the gadget.
Questions that usually produce better fair projects
Instead of asking, "Can I make a cool alarm?" ask, "How does changing the timing resistor affect the pulse rate of the alarm circuit?" Instead of asking, "Can I build a sensor?" ask, "How does light level affect the trigger threshold of this circuit?" That small change turns a demonstration into an investigation.
Common mistakes in circuit science fair projects
- Changing several parts at once and then not knowing which change mattered.
- Judging results only by appearance instead of measuring voltage, time, brightness, or output behavior.
- Choosing a project that is hard to explain even if it works.
- Doing only one trial and calling the result complete.
- Skipping prediction and troubleshooting notes, which weakens the final explanation.
What to use before the fair
Students should understand the core ideas before they design the board display. That is where internal explainers such as why students should predict before they measure, how to find an open circuit, and what a solderless breadboard is become useful. The For Schools and Educators page is the right next step for teachers planning a larger project sequence.
FAQ
What makes a circuit science fair project strong?
A strong project tests one clear variable, measures what changes, repeats the test, and explains the circuit concept behind the result.
Are simple circuit projects too basic for a science fair?
No. Simple circuits often make the best fair projects because the variable is easier to isolate and the explanation is easier to defend.
What should students measure in a circuit project?
Common options include voltage, current, resistance, time, trigger threshold, brightness, or runtime, depending on the project.
Should a science fair project use Arduino?
Only if programming helps answer the question. Arduino is useful for sensing, timing, and data collection, but it is not required for a strong project.
What is the biggest mistake students make with circuit fair projects?
They build something flashy without identifying one measurable question. The project may work, but the explanation stays weak.
