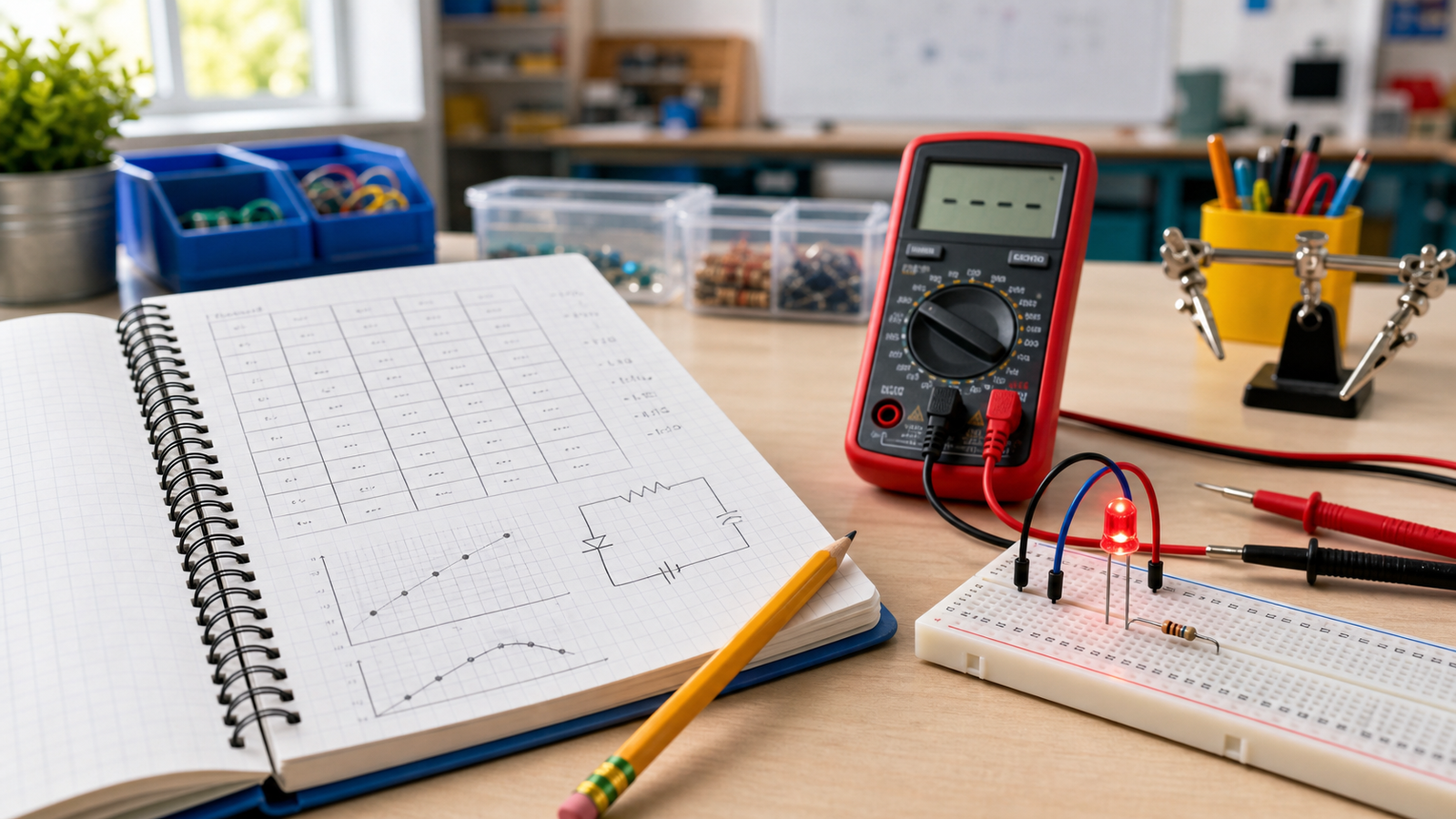

A STEM notebook should turn measurement data into evidence. In a circuit lab, that means students do more than write down a voltage or resistance reading. They predict what should happen, measure carefully, record the setup, compare the result with the prediction, and write a short conclusion about what the circuit is doing.
This routine is useful because electronics labs can look busy without producing much thinking. A student may build a circuit, see an LED turn on, and move on. A notebook slows the work down just enough for students to notice evidence: the battery voltage, the resistor value, the LED behavior, the meter range, and what changed after troubleshooting.
Why Measurement Data Belongs in a STEM Notebook
Science Buddies describes a science and engineering project notebook as a detailed record of the project process, from early ideas through data analysis. Its engineering design notebook guidance also emphasizes recording observations, sketches, questions, and design decisions so someone else can understand how the solution developed.
That idea fits beginner electronics well. A circuit notebook is not just a place to copy a diagram. It is where students connect the physical build to a measured result. TeachEngineering activities often ask students to record measurements, compare results, and use data to support engineering decisions. In a classroom circuit lab, the same habit can start with a simple multimeter reading.
A Simple STEM Notebook Page Format
For beginner circuit work, keep the page structure predictable. Students should be able to repeat it in five minutes at the start of a lab and complete it in five minutes at the end.
| Notebook section | What students record | Why it matters |
|---|---|---|
| Question | What are we trying to find out? | Focuses the lab on one measurable idea. |
| Prediction | What do I think the circuit will do? | Encourages thinking before measuring. |
| Setup | Battery, resistor, LED, sensor, meter setting, or diagram. | Makes the result repeatable. |
| Data | Measured voltage, resistance, current, or observations. | Gives the student evidence. |
| Claim | What does the data show? | Connects measurement to explanation. |
| Next change | What should we test or fix next? | Turns mistakes into troubleshooting. |
Use the Predict-Measure-Explain Routine
A strong notebook routine can be short: predict, measure, explain. Before students touch the meter, ask them to write one expected result. For example, "The battery should read close to its rated voltage" or "The LED should be brighter with the lower resistor value." Then students measure and compare.
This is especially useful after students read why students should predict before they measure. Prediction makes the measurement meaningful. If the result does not match the prediction, the student now has a reason to inspect polarity, resistor placement, breadboard rows, or the meter setting.
Example: LED Circuit Measurement Entry
Here is a simple example for a one-battery, one-resistor, one-LED circuit:
| Prompt | Student entry example |
|---|---|
| Question | Does the battery provide enough voltage for the LED circuit? |
| Prediction | The battery will read close to its label and the LED will turn on. |
| Setup | Battery pack, resistor, LED, breadboard, DC voltage setting on meter. |
| Data | Battery reading, LED on/off, any unexpected behavior. |
| Claim | The circuit has power, so the next check is polarity and resistor placement. |
Students do not need perfect language at first. The goal is to move them from "it works" or "it does not work" toward evidence-based statements. For a broader meter routine, link the notebook page to what a multimeter measures and how to teach students to use a digital multimeter.
Turn Raw Readings Into Claims
The hardest part for many students is not writing down the number. It is explaining what the number means. A good teacher prompt is: "What does this measurement let you rule out?"
- If the battery voltage is low, the power source may be the problem.
- If resistance is much higher than expected, the wrong part or a poor connection may be involved.
- If the LED current is too high, the resistor value or meter setup needs attention.
- If voltage exists at the battery but not at the LED, students should trace the path between them.
This connects directly to student circuit troubleshooting. Notebook data should help students decide what to check next, not just decorate the page.
Common Notebook Mistakes
- Recording numbers without units: A value without volts, ohms, or amps is incomplete.
- Writing only the final answer: The notebook should show the setup and the path to the conclusion.
- Skipping wrong readings: Unexpected readings are useful troubleshooting evidence.
- Copying group data without discussion: Each student should write what the result means.
- Using the notebook only after the lab: The best entries are made while students build, test, and revise.
Where Mr Circuit Fits
Mr Circuit labs are built around hands-on electronics, which makes them a natural fit for notebook routines. Students can build a low-voltage circuit, measure one part of it, record what happened, and explain the result in plain language. That combination builds technical confidence without turning every lab into a long report.
FAQ
What should students write in a STEM notebook during a circuit lab?
They should record the question, prediction, circuit setup, measured data, observations, conclusion, and next troubleshooting step.
Do students need exact data tables every time?
No. Use a full table for measurement-heavy labs and a shorter predict-measure-explain format for quick builds.
Should wrong measurements stay in the notebook?
Yes. Wrong or unexpected measurements can show how students found a fault, changed a setup, and improved their explanation.
How often should students use a notebook?
Use it every time students test or revise a circuit. Short, consistent entries are better than rare long reports.
Can notebooks be graded?
Yes, but grade them for evidence, clear thinking, units, and reflection rather than neatness alone.
