Mr Circuit Lab 3 — Digital Logic Gates
In stock — ships todayTeach the building blocks of every computer and controller. Students learn binary logic, truth tables, and how logic gates work by building real circuits on a solderless breadboard.
- Printed lessons + workbook
- Hands-on real circuits
- Reusable Classroom Kit
- STEM / Robotics / CTE ready
Ordering for a school or district? Request a quote →
Skill set
All 8 logic gates, hands-on
- Describe all eight digital logic gates
- Explain the rules and draw the symbol for each gate
- Use a truth table to describe a gate's function
- Build each gate from discrete components on a solderless circuit board
- Understand binary signals: TRUE/FALSE, HI/LO, 1/0
- Prepare for Boolean algebra and digital circuit design
What's in the box
Everything needed to build all 8 gates
-
01
Reusable lab boxBuilt to survive classroom life
-
02

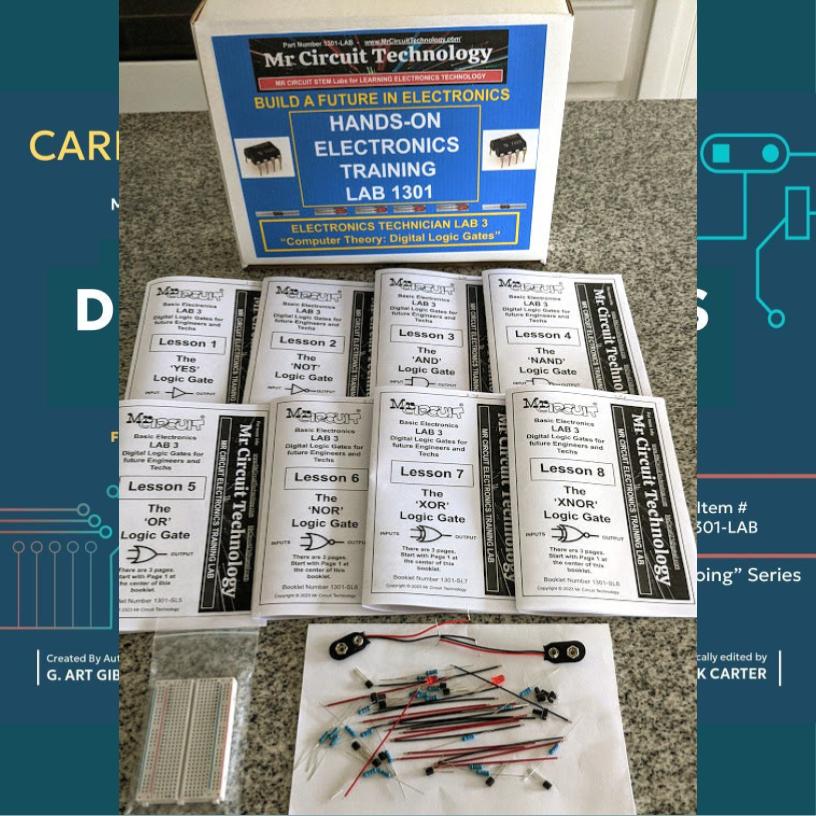

Printed lessons + workbookYES, NOT, AND, NAND, OR, NOR, XOR, XNOR
-
03
Online video presentationsOne per experiment, for every student
-
04
Solderless circuit boardProfessional-grade breadboard
-
05
Transistors, resistors, diodesDiscrete components for building gates
-
06
Switches, jumpers, LEDsEverything needed for every lab
For schools & districts
Order one kit — or outfit the whole classroom.
Mr Circuit is used by public schools, STEM academies, CTE programs, and youth nonprofits across the country. Purchase orders are welcomed. Quotes turn around in 24 hours.
- ✓ Purchase orders accepted
- ✓ Formal quotes in 24 hours
- ✓ Evaluation units available
- ✓ MC1-SET outfits a class of 30
"Mr Circuit is the cleanest way into electronics I've ever used in the classroom."
— Career & Technical Ed. teacher · AZFrequently asked
Answers for teachers, parents, and makers.
What grade levels is this lab for?
Mr Circuit labs work well for grades 6 through college. Middle schoolers use them as a first introduction to circuits. High school CTE and career-tech programs use them as the foundation for HVAC, automotive, robotics, and engineering pathways.
Does this lab require soldering or any power tools?
No. Every circuit is built on a solderless breadboard using pre-stripped jumper wires. The only power source is a 9-volt battery. Safe for classrooms, safe for students, and fully reusable.
How long does each lesson take?
Most lessons fit inside a standard 45–55 minute class period. The first few lessons are shorter (component introductions), and the later circuit builds may span two periods depending on pacing.
Can I order with a school purchase order?
Yes — public schools, districts, and nonprofits can order using a purchase order. Email us and we'll send a W-9 and a formal quote (usually the same day).
Is the lab reusable for next year's class?
Yes — that's the whole point. Components go back in the tray, and the lab resets for the next student. Replacement parts are available individually if something gets lost.
What's the difference between this lab and MC1-SET?
This lab is a single kit — one student, one breadboard. MC1-SET is the classroom bundle with 32 reusable experiment kits and full digital platform access. Most teachers ordering for a full class go straight to MC1-SET.
Order today
Your students will thank you.
Ships same business day from San Luis Obispo, California. Credit/debit or school purchase orders welcome.
— Gary Gibson, author & educator
