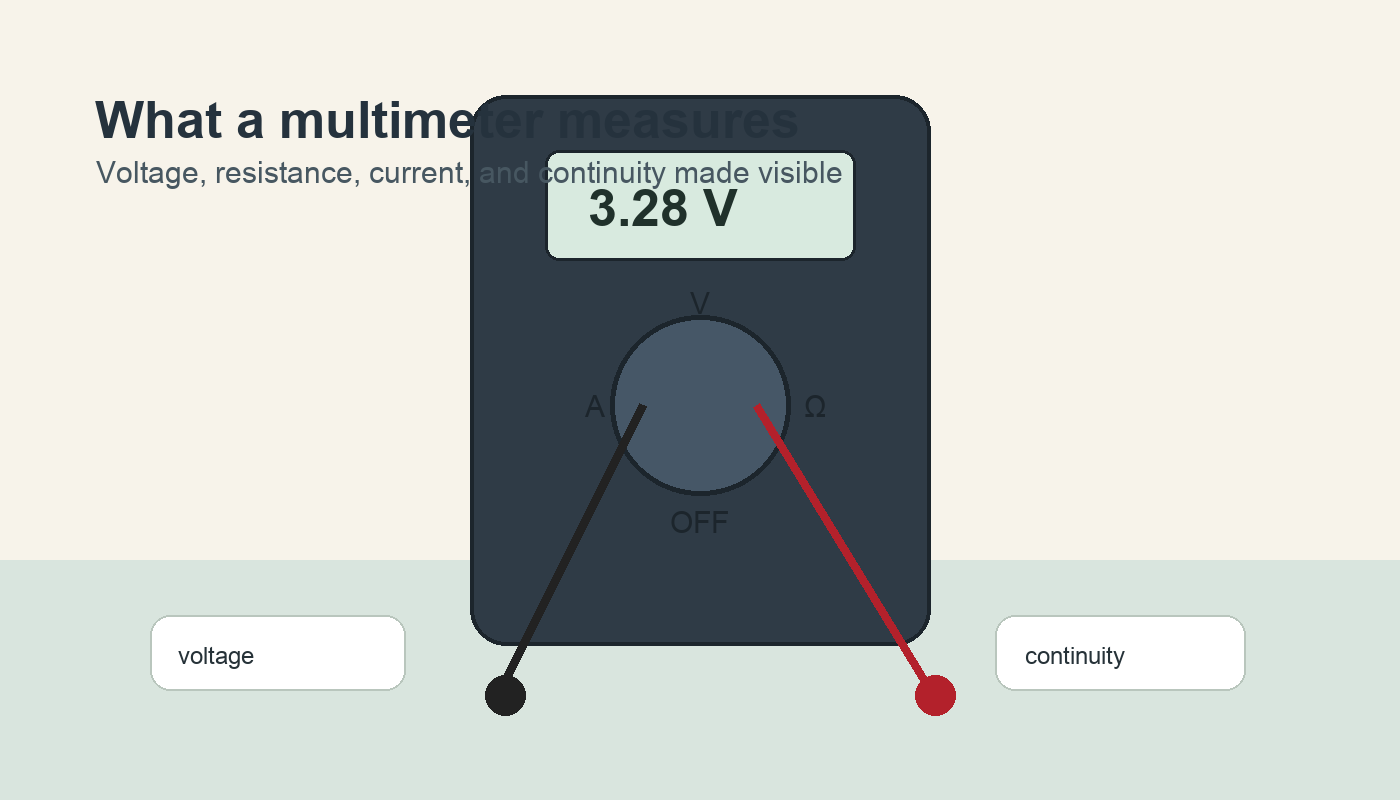

A multimeter measures electrical conditions in a circuit, especially voltage, resistance, current, and continuity. For a beginner electronics class, those four measurements are enough to turn a circuit from a guessing game into an evidence-based investigation. Students can use a meter to ask: Is the battery providing voltage? Is this resistor close to its printed value? Is there a complete path for current? Is the circuit drawing the amount of current we expected?
The most important teaching move is to avoid presenting the multimeter as a mysterious tool with too many symbols. Start with the question students are trying to answer, then choose the setting that answers that question. That keeps the lesson practical and reduces the common habit of turning the dial randomly until something appears on the screen.
What Are the Main Multimeter Measurements?
| Measurement | What it tells students | Beginner classroom use |
|---|---|---|
| Voltage | Electrical potential difference between two points | Check a battery, power rail, LED circuit, or sensor output |
| Resistance | How strongly a component resists current flow | Check a resistor value or compare fixed and variable resistors |
| Current | How much charge is flowing through part of a circuit | Measure LED current after students understand series placement |
| Continuity | Whether two points are electrically connected | Find open paths, broken wires, and breadboard row mistakes |
SparkFun, Adafruit, and Science Buddies all describe these functions as the practical core of beginner multimeter use. Some meters also measure capacitance, diode voltage drop, frequency, or temperature, but those features can wait until students are comfortable with the basic four.
Voltage: Measure Across Two Points
Voltage is usually the best first measurement because it is visible, useful, and relatively easy to teach in low-voltage classroom circuits. Students place the black probe on the lower-potential point, often the negative battery terminal or ground rail, and the red probe on the point they want to test. The meter is connected across two points, not inserted into the circuit path.
In class, voltage answers questions like: Is the battery still good? Did we connect the breadboard power rail correctly? Does the LED circuit have enough voltage available? If students measure a 3 V battery pack and see a reading near 3 V, the number confirms that the power source is present before they blame the LED, resistor, or switch.
Resistance: Measure With Power Off
Resistance tells students how much a component limits current. It is useful for checking resistor values, comparing potentiometer positions, and connecting the printed color bands on a resistor to an actual meter reading. This measurement should be made with the circuit powered off and, when practical, with the component isolated from the rest of the circuit.
Science Buddies shows resistance measurement with the component disconnected because the meter supplies its own small test signal. If the circuit is powered, students can get confusing readings or risk damaging the meter. A simple classroom rule works well: voltage can be checked on a powered low-voltage circuit, but resistance checks happen with power off.
Current: Measure Through the Circuit
Current is the measurement that needs the most teacher structure. To measure current, the meter becomes part of the path, so students usually must open the circuit and insert the meter in series. That is different from voltage, where the probes touch across two points. If students leave the red lead in the current jack and later try to measure voltage, they can create a short path through the meter.
For beginners, introduce current only after students understand closed circuits and series paths. A safe activity is to compare LED current with two different resistor values in a low-voltage circuit. Students predict which resistor will allow more current, measure carefully, then connect the result to brightness and Ohm's law.
Continuity: Find Open and Closed Paths
Continuity is one of the most useful classroom troubleshooting modes. It tells students whether two points are electrically connected. Many meters beep when the path is closed, which makes the result easy for students to understand. Continuity should be checked with power off.
Use continuity when a circuit should work but does not. Students can test whether two holes in the same breadboard row are connected, whether a jumper wire is broken, whether a switch closes correctly, or whether a ground rail is actually tied to the battery negative. This makes invisible wiring mistakes concrete.
A Simple Teaching Order
- Start with continuity on an unpowered breadboard so students learn probe control.
- Measure battery voltage so students see a familiar number.
- Measure resistor values and compare them to color bands.
- Measure voltage at different circuit points in a working LED circuit.
- Introduce current last, using a teacher-modeled series setup.
This sequence builds confidence because students first use the meter in low-risk ways. It also connects directly to troubleshooting: continuity finds broken paths, voltage confirms power, resistance checks components, and current confirms how much electricity is flowing through the load.
Common Student Mistakes
- Using the wrong jack: The red lead may need a different jack for current than for voltage or resistance.
- Measuring resistance with power on: This creates unreliable readings and can damage the meter.
- Trying to measure current like voltage: Current measurement usually requires opening the circuit and placing the meter in series.
- Ignoring units: Students should record V, ohms, mA, or A, not just the number on the screen.
- Skipping prediction: A reading is more meaningful when students first predict what should happen.
Classroom Notebook Prompt
Have students make a four-column table: prediction, meter setting, measured value, and explanation. For example, before measuring a battery, they predict the voltage. Before checking a jumper wire, they predict whether the continuity beep should sound. This turns the multimeter into a reasoning tool instead of a teacher-only diagnostic device.
Mr Circuit's troubleshooting-focused electronics labs are a natural place to practice this routine because students build low-voltage circuits, observe symptoms, measure evidence, and revise their thinking. The goal is not just using a meter correctly. The goal is helping students make better technical decisions.
FAQ
What are the main things a multimeter measures?
For beginner circuits, a multimeter mainly measures voltage, resistance, current, and continuity. Some meters include extra functions, but those four are the classroom essentials.
Can students measure current with a multimeter?
Yes, but current should be introduced after voltage and resistance. Students need to understand that the meter is usually placed in series, with the correct jack and range selected.
Should resistance be measured with the circuit powered?
No. Resistance and continuity should be measured with power off because the meter supplies its own test signal.
What does continuity mean on a multimeter?
Continuity means two points are electrically connected by a conductive path. A continuity beep usually means the path is closed.
Which multimeter measurement should beginners learn first?
Continuity or voltage is usually the easiest starting point. Continuity teaches probe control on an unpowered circuit, while voltage helps students confirm battery and power-rail behavior.
