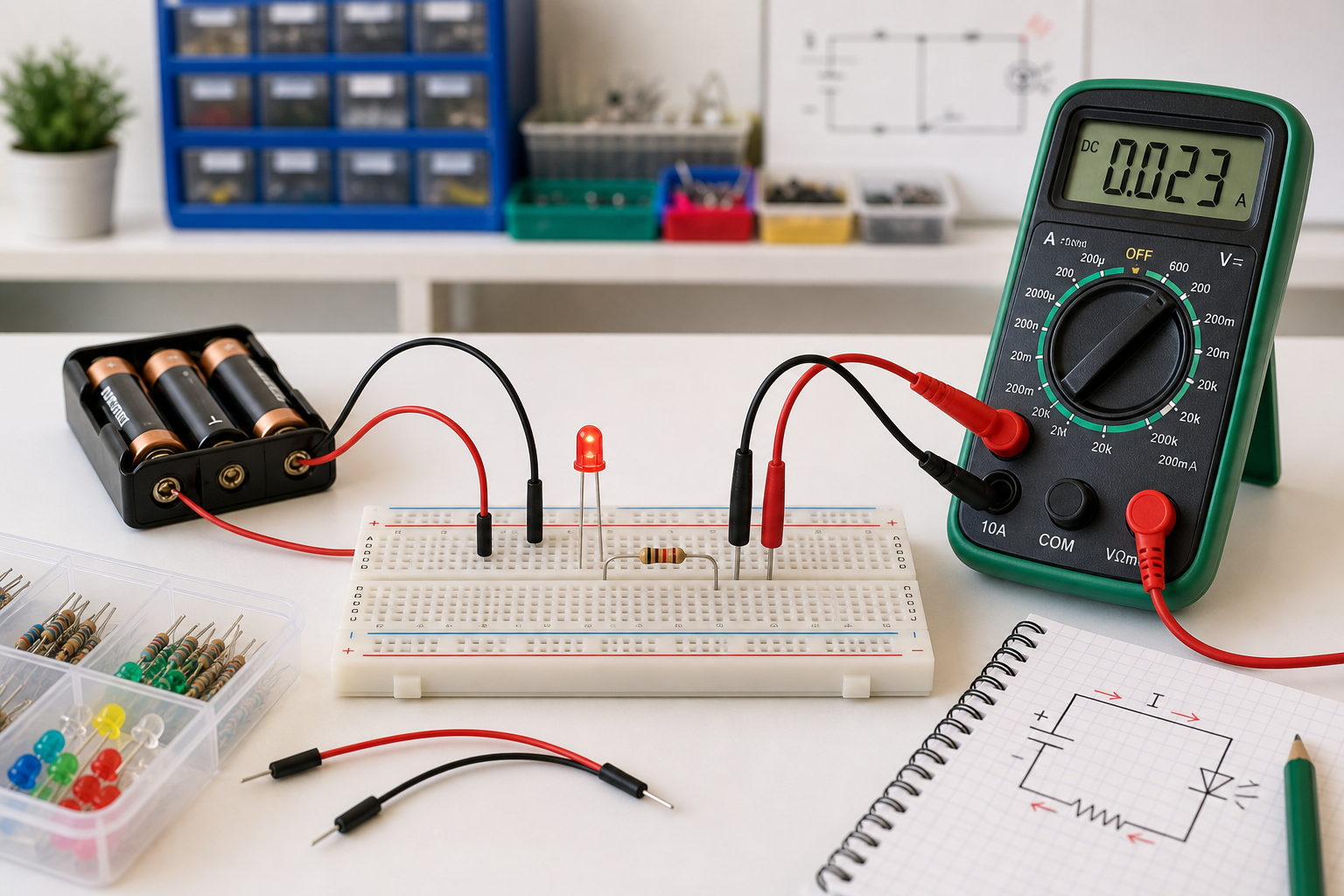

To find an open circuit, look for the point where the electrical path stops being complete. In a simple classroom circuit, that usually means checking the battery connection, switch, jumper wires, component leads, and breadboard rows in a clear order, then confirming the break with continuity mode while the power is off.
Last updated: June 28, 2026
An open circuit is one of the most common beginner problems because it often looks like “nothing happened.” The LED stays off, the buzzer stays silent, and students may assume the battery is dead or the component is broken. In reality, one loose or misplaced connection anywhere in a series path can stop the entire circuit from working.
What an open circuit means
An open circuit is a break in the electrical path. Current needs a complete loop from the power source, through the load, and back to the source. If one switch is left open, one jumper comes loose, or one lead is not seated in the correct breadboard row, the path is broken and the circuit stops working.
For a quick concept refresher, open circuit vs closed circuit is the best internal definition article. This troubleshooting guide picks up after that point and shows students how to locate the exact break.
Start with the simplest visual checks
Before touching the meter, teach students to scan the circuit slowly from one end to the other. In most classroom builds, the problem is visible. A battery lead may have slipped out. A switch may still be open. A wire may land one row away from the intended point. A resistor leg may not be fully inserted into the breadboard.
| Common sign | Likely cause | What to inspect first |
|---|---|---|
| LED never turns on | Broken series path | Battery leads, switch, LED legs, resistor placement |
| Circuit works only when held | Loose contact | Jumper wire ends and component seating |
| Switch seems to do nothing | Switch not wired into the real path | Rows on both sides of the switch |
| Battery tests good but load stays off | Open path after the source | Step through the path one section at a time |
That scan matters because it keeps troubleshooting from becoming random. If students immediately start moving parts, they often create a second problem and lose track of the original one.
Use continuity mode with the power off
Fluke and Keysight both describe continuity as a quick way to check whether a path is electrically complete. In classroom terms, this is the question students are asking: “Is there still a path from this point to that point?” The answer is easiest to test with the circuit power disconnected.
Set the multimeter up the same way used in the digital multimeter lesson: black lead in COM, red lead in the voltage/ohms jack, dial on continuity or resistance. Then remove the battery or disconnect power before probing the suspected path.
Break the circuit into sections
The fastest beginner routine is not “test everything.” It is “test one section at a time.” Trace the path from the battery positive terminal toward the load, then from the load back to battery negative. Students should name the path out loud while they work. That reinforces circuit thinking instead of letting the meter do all the reasoning.
- Disconnect the battery or other power source.
- Identify the intended path from source to load and back.
- Test short sections for continuity instead of probing random far-apart points.
- When one section fails the continuity check, inspect that exact section for the break.
- Reconnect the circuit and retest after the fix.
For example, if students built a battery, switch, resistor, and LED in series, they can test the battery clip lead, then the switch path when closed, then the resistor connection, then the LED path, then the return path. The open circuit will usually appear where the meter stops confirming continuity.
Know when a voltage check is better
Continuity is useful with the power off, but voltage checks help answer a different question: “Where does the expected electrical push disappear?” If a circuit is powered and safe to test, a quick battery measurement can confirm whether the source is present before students keep hunting for a broken path. This battery-voltage guide is the best companion article for that step.
A practical rule for students is simple. Use voltage mode to confirm the source. Use continuity mode to find a broken path. Keeping those purposes separate reduces confusion.
Three common classroom open circuits
1. The switch is open when students think it is closed. This happens often with unfamiliar toggle or pushbutton parts. A continuity check across the switch shows whether it actually closes the path.
2. A jumper wire is one row off on the breadboard. Students may think two points connect because they are close together, but breadboard connections follow row patterns, not visual closeness.
3. A battery lead or component leg is loose. If the circuit works only when someone presses on a wire, the problem is often mechanical contact, not a “bad component.”
These are the same kinds of issues that show up in the student troubleshooting checklist. The difference here is that students are using the meter to confirm the exact location instead of guessing.
A teacher-friendly open-circuit routine
| Step | Student action | Reason |
|---|---|---|
| 1 | Describe the intended path out loud. | Shows whether the student understands the circuit model. |
| 2 | Look for loose, missing, or misplaced connections. | Many opens are visible before meter use. |
| 3 | Disconnect power for continuity checks. | Matches safe meter use. |
| 4 | Test one section at a time. | Isolates the break faster. |
| 5 | Retest after the fix. | Confirms the repair instead of assuming. |
Common mistakes to correct early
- Using continuity mode on a powered circuit.
- Testing two points that are too far apart to isolate the actual break.
- Assuming “no beep” always means the component is defective.
- Changing several wires at once instead of testing one idea at a time.
- Skipping the battery check and blaming the rest of the circuit first.
One of the best classroom habits is asking students, “Where should the path be complete right now?” That question keeps the meter connected to reasoning.
Why this skill matters
Finding an open circuit teaches more than repair. It helps students understand that current depends on a complete loop and that troubleshooting follows the circuit model. That is why open-circuit work pairs well with continuity-testing activities and with broader classroom planning in For Schools and Educators.
