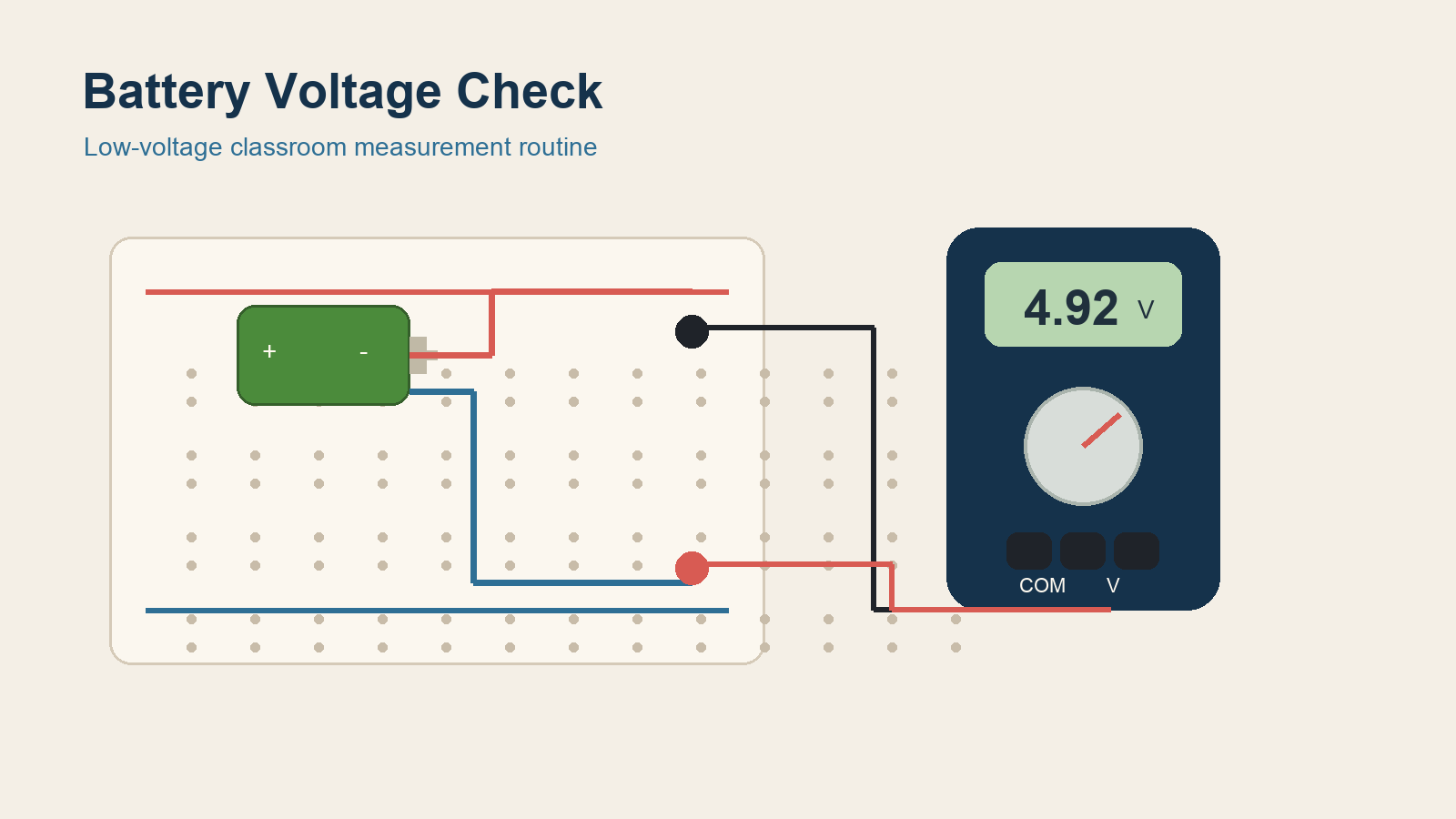

To measure battery voltage in a classroom circuit, set the multimeter to DC voltage, keep the black lead in COM and the red lead in the V/ohms jack, then touch the probes across the battery or the circuit's power rails. That quick check tells students whether the source is present before they start moving wires or blaming components.
Last updated: June 27, 2026
That order matters in beginner electronics. Many students see a dark LED and assume the whole circuit is wrong. In practice, the first question is simpler: is the battery actually delivering usable voltage? A fast voltage reading turns troubleshooting into evidence instead of guesswork.
What battery voltage tells students
Battery voltage is the electrical potential difference available to push charge through the circuit. If students already know the basic idea from this voltage explainer, a meter reading becomes much more meaningful. Instead of treating the number as decoration, they can connect it to the source that is supposed to power the build.
That is why battery voltage is one of the best first measurements to teach. It is concrete, fast, and low-risk when the class is using small battery packs and simple breadboard circuits. It also pairs naturally with a beginner explanation of how batteries work in student circuits.
Set up the meter for DC voltage
Fluke's DC voltage guide and user manuals are consistent on the core setup: choose the DC voltage function, place the black lead in COM, and place the red lead in the voltage/ohms input. In class, this should become a spoken routine. Students should be able to say what they are measuring before the probes touch the circuit.
| Meter setup step | What students do | Why it matters |
|---|---|---|
| Choose DC voltage | Turn the dial to the DC voltage setting. | Batteries provide direct current, so the reading must be taken in DC mode. |
| Black lead in COM | Keep the black lead in the common jack. | This is the standard reference point for the measurement. |
| Red lead in V/ohms | Leave the red lead in the voltage jack, not a current jack. | This prevents a common beginner mistake that can short the source in the wrong mode. |
| Name the target | Say “I am measuring battery voltage.” | This slows students down and reduces random dial changes. |
If you need a broader classroom routine first, this multimeter guide is the best internal prerequisite.
Where to place the probes
Students can start with the battery by itself, then repeat the check across the power rails of a connected breadboard circuit. Both readings are useful, but they answer slightly different questions.
| Where you measure | What it checks | Teacher takeaway |
|---|---|---|
| Directly on the battery or pack terminals | Whether the source itself still has voltage | Best first check before touching the rest of the build |
| Across the breadboard power rails | Whether the source is actually reaching the circuit | Useful when the battery seems fine but the build still does not work |
| Across a disconnected gap or wrong points | Often an unclear or misleading reading | Shows why probe placement must be deliberate |
For a battery pack, the black probe goes to the negative terminal and the red probe goes to the positive terminal. If students reverse them, most meters simply show the correct magnitude with a minus sign. That is not a disaster in a low-voltage classroom check, but it is still worth correcting because polarity awareness matters later.
A simple classroom procedure that works
- Make sure the meter is set to DC voltage.
- Check that the black lead is in COM and the red lead is in the V/ohms jack.
- Touch the black probe to the battery negative terminal.
- Touch the red probe to the battery positive terminal.
- Read the display and compare it to what the battery pack should provide.
- Repeat the reading across the breadboard rails if the source should already be connected to the build.
This routine gives students a decision point. If the battery reading is missing or much lower than expected, the problem starts at the source. If the battery reading looks normal but the rails show no voltage, the wiring between the source and the circuit needs attention.
How to interpret common readings
| Reading pattern | What it usually means | Best next move |
|---|---|---|
| Expected battery voltage appears | The source is present | Move to checking rails, polarity, and the load path |
| Reading is much lower than expected | The battery may be weak or the pack may be partially discharged | Swap the battery or compare with a known-good source |
| No useful reading or unstable reading | The probes may not be touching the correct points | Reset the probe placement and recheck the dial and jacks |
| Battery reads correctly but rails do not | The source is not reaching the circuit | Inspect leads, clips, and rail connections |
This is where the reading becomes a troubleshooting tool. Instead of changing three things at once, students can use one measurement to narrow the problem. That aligns well with Mr Circuit's troubleshooting checklist.
Common beginner mistakes
- Leaving the red lead in a current jack from a previous activity.
- Using AC voltage mode for a battery-powered circuit.
- Touching two unrelated metal points and expecting a useful reading.
- Changing wires before checking whether the source is present.
- Writing down a number without explaining what it means.
A good fix is to require a sentence with every measurement. For example: “The battery pack measured 4.9 V DC, so the source is present.” That simple habit shifts students from collecting numbers to making claims supported by evidence.
How this fits into a stronger STEM lesson
Battery-voltage measurement is not only a technical step. It teaches students that working builds come from testing assumptions. In a beginner electronics class, that matters more than speed. Students who learn to check the source first are less likely to panic when an LED fails to light or a buzzer stays silent.
If you are building a larger measurement sequence, the optional Mr Circuit Lab 2 digital multimeter STEM kit is a natural materials example because it supports structured meter work. For broader program planning, the most relevant teacher page is For Schools and Educators.
Frequently Asked Questions
Should students measure the battery first or the LED first?
Measure the battery first. If the source is missing or weak, checking the LED will not answer the main problem.
Why use DC voltage mode for a battery?
Batteries provide direct current, so the meter should be set to DC voltage for the reading to make sense.
What does a minus sign on the screen usually mean?
It usually means the probes are reversed. The magnitude can still be useful, but the probe orientation should be corrected.
Can students measure battery voltage while the circuit is connected?
Yes, in a simple low-voltage classroom circuit that is often useful. It can show whether the source is still reaching the circuit rails.
What is the fastest troubleshooting lesson here?
Teach students to compare the reading at the battery with the reading at the circuit rails. If those do not match, the wiring path needs attention.
