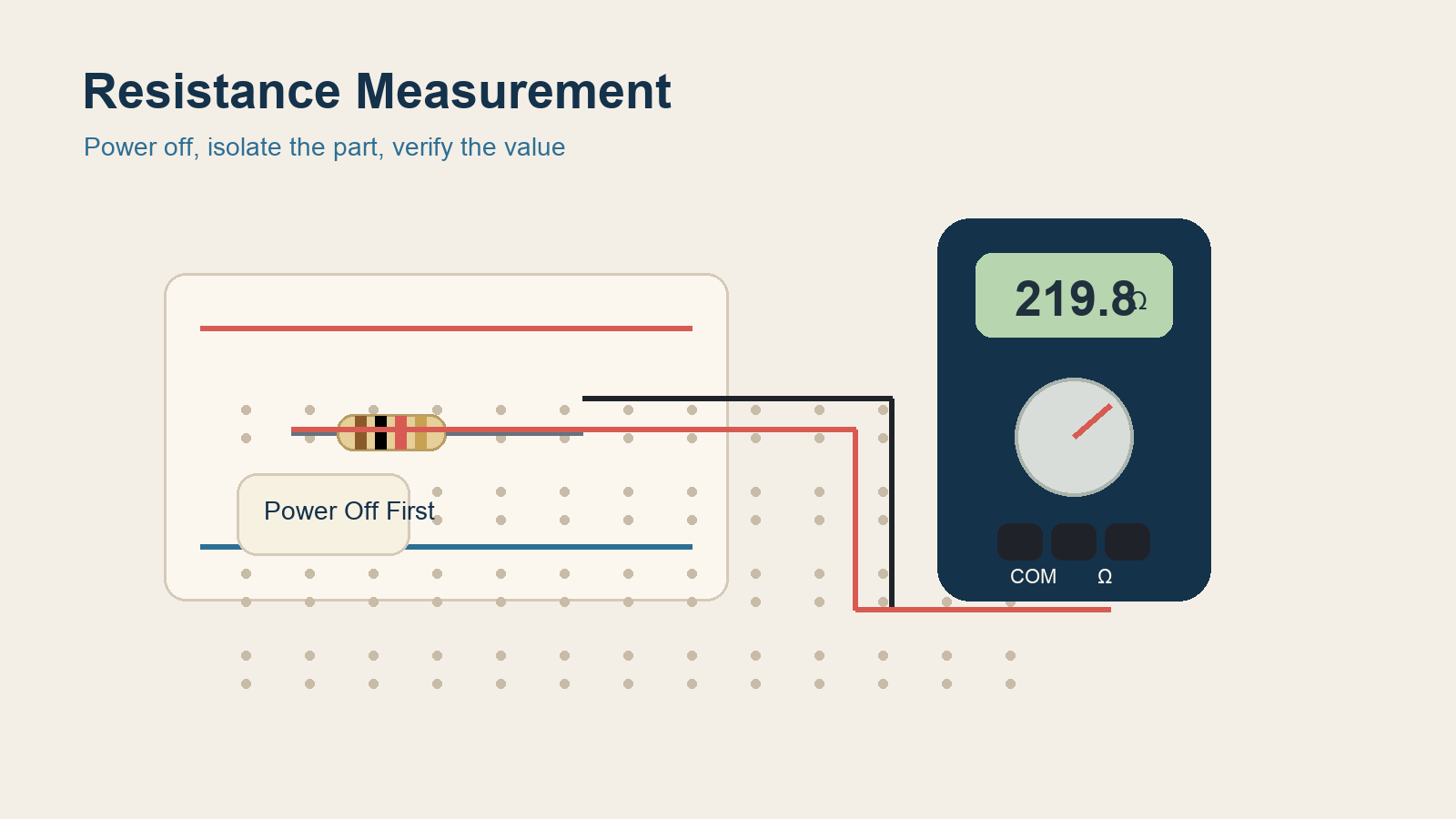

To measure resistance, turn the multimeter to ohms, make sure the circuit power is off, and touch the probes across the resistor or other part you want to test. The clearest beginner readings come from disconnected components or simple parts measured outside the active circuit, because extra paths can change what the meter sees.
Last updated: June 27, 2026
That “power off” rule is the most important part of the lesson. Resistance mode is not just a different number on the display. In ohms mode, the meter sends a small test current and reads the response. That means students should not treat resistance like voltage, where the circuit usually stays powered during the check.
What resistance measurement is really doing
Resistance is how much a component opposes current flow. Students may already know that idea from Mr Circuit's resistance explainer, but the measurement lesson adds an important practical step: the meter is not reading a label. It is testing the electrical behavior between the two probe points.
Fluke's manuals and DMM reference material both stress that resistance measurements should be made with power off. They also note that the meter sends a small current through the test path. That is why a disconnected resistor usually produces the cleanest first reading for beginners.
Set up the meter correctly
The setup is simple: black lead in COM, red lead in the voltage/ohms jack, and the dial set to ohms. If the resistor is still inside a more complex circuit, students should understand that the reading may reflect multiple parallel paths instead of only the component they meant to test.
| Setup step | What students do | Why it matters |
|---|---|---|
| Turn power off | Disconnect the battery or power supply first. | Resistance mode is meant for unpowered circuits. |
| Select ohms | Turn the dial to the resistance setting. | The meter changes modes and applies its resistance test method. |
| Use the V/ohms jack | Keep the red lead in the same jack used for voltage and continuity. | This avoids confusing resistance work with current-measurement setup. |
| Probe only the intended part | Touch one probe to each side of the resistor. | The reading only helps if students know exactly what path they are testing. |
If students need a broader routine first, the multimeter lesson article is the best companion piece.
The best first example is a loose resistor
A resistor measured by itself is the easiest way to introduce resistance. Students can compare the meter reading to the resistor's color code or labeled value, then talk through why the number might be close but not perfectly exact. Tolerance, probe contact, and meter resolution all matter.
This also pairs well with the resistor-in-an-LED-circuit article, because students can move from the abstract value to a real circuit function.
Check the test leads before judging the part
Fluke's user manual points out that test leads themselves can add a small amount of resistance. In a classroom setting, that matters less for medium-value resistors than for very low-value measurements, but it is still a good habit to demonstrate. Touch the probe tips together and notice the reading. That becomes the baseline for the measurement setup.
| What students test | Likely result | What it teaches |
|---|---|---|
| Probe tips touching each other | Very low resistance | The leads and contacts contribute a small amount |
| One resistor removed from the circuit | A stable reading near the expected value | Best beginner measurement case |
| Resistor still in a complex circuit | A lower or unexpected reading | Other paths may be affecting the result |
| No connection between probes | Open or overload reading | The meter is showing no complete path |
Why in-circuit resistance readings can confuse beginners
This is one of the most useful ideas to teach. A resistor inside a circuit is not always isolated. If other branches or components connect between the same points, the meter sees the combined path. That can make the reading lower than the resistor's printed value or otherwise unexpected.
Students often assume that a surprising number means the resistor is bad. Sometimes the real answer is simpler: they measured the resistor while it was still connected to other paths. That is why the first classroom rule should be “measure the part by itself when possible.”
A simple classroom routine for measuring resistance
- Disconnect the battery or other power source.
- Set the multimeter to ohms.
- Touch the probes together once to see the lead baseline.
- Place one probe on each side of the resistor or component.
- Read the display and compare it to the expected value or color code.
- If the reading seems wrong, remove the part from the circuit and test again.
That routine teaches students to separate measurement problems from circuit problems. It is also a good bridge into the troubleshooting checklist, because it shows them how to verify a component instead of replacing it blindly.
Common mistakes to correct early
- Measuring resistance while the battery is still connected.
- Touching the probes to the wrong points on the breadboard.
- Assuming the labeled resistor value will always match perfectly.
- Ignoring the small resistance of the test leads.
- Reading an in-circuit value as if it came from only one part.
A short teacher prompt can prevent most of these mistakes: “Is the power off? What exact two points are you testing? Is the resistor isolated?” Those three questions usually clear up the confusion before it spreads.
Why this matters in a beginner STEM sequence
Resistance measurement helps students connect vocabulary, component values, and troubleshooting decisions. It also makes later lessons on LEDs, sensors, and timing circuits easier because students stop treating parts as mystery objects. They learn that components can be tested, compared, and explained.
For a broader classroom pathway, For Schools and Educators is the most relevant internal resource page. If the class is moving deeper into measurement work, the optional Mr Circuit Lab 2 digital multimeter STEM kit is the most natural product example.
Frequently Asked Questions
Can students measure resistance on a powered circuit?
No. Resistance checks should be done with the power off.
Why does a resistor sometimes read differently from its label?
Tolerance, probe contact, and other connected circuit paths can all change the reading.
Should beginners test a resistor in the circuit or out of the circuit?
Out of the circuit is better for the first lesson because it reduces confusion from extra current paths.
What does it mean if the display shows open or overload?
It usually means there is no complete path between the probe points or the resistance is beyond the present range.
Why touch the probes together first?
It shows the small resistance from the leads and contacts so students understand the setup itself affects the measurement.
