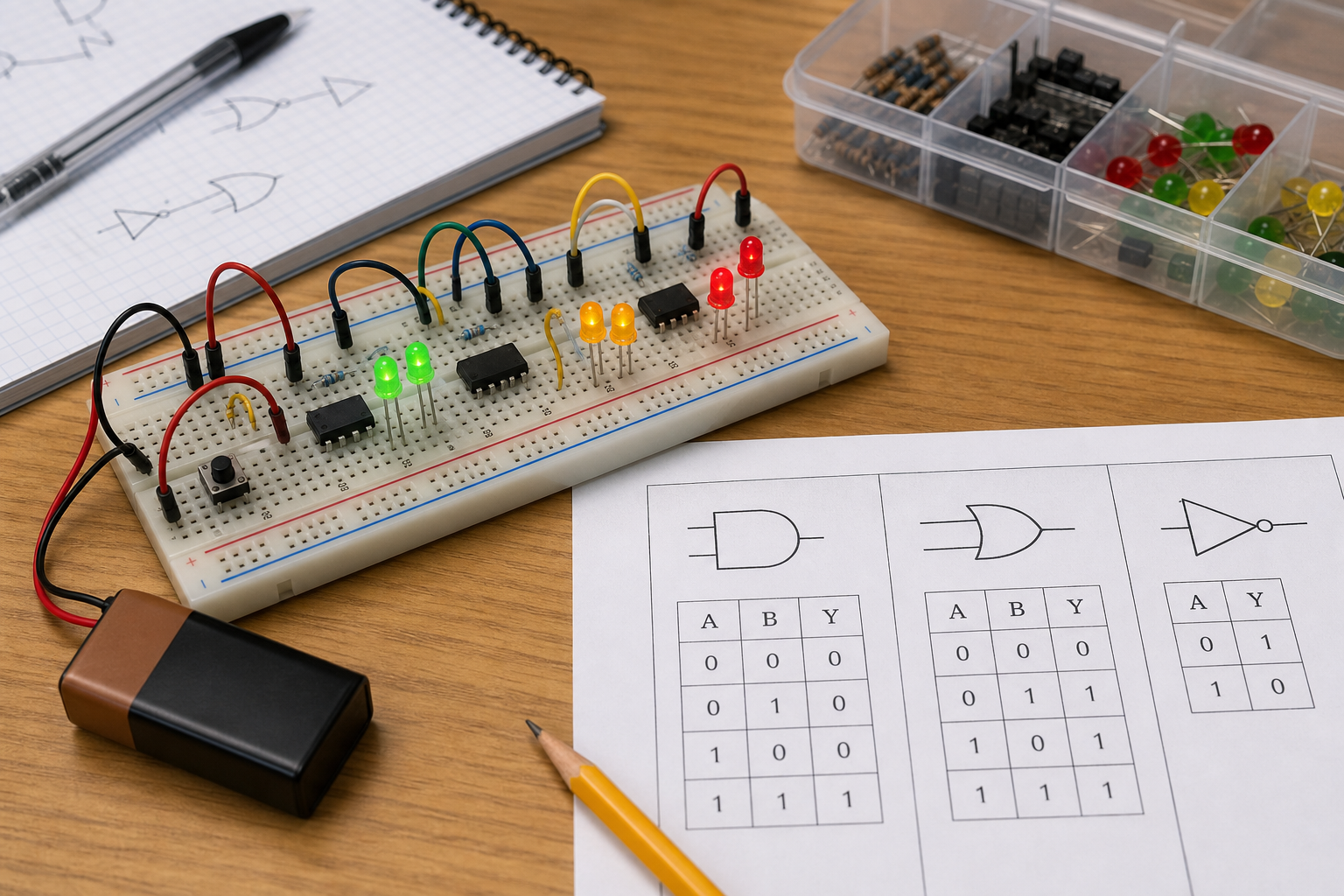

A 555 timer is a small integrated circuit that helps a circuit create a time delay or a repeating pulse. That is why it shows up so often in beginner electronics lessons. It gives teachers a clean way to explain why an LED can blink, how a short timed output works, and how a resistor-capacitor pair can control timing.
This article is the broad first explanation. If students are ready for the deeper timing sequence, they can continue to Mr Circuit's published guide on how a 555 timer works in a beginner circuit. Here, the goal is simpler: understand what the chip is, what job it does, and why it matters in a classroom.
What the 555 timer actually does
Texas Instruments still describes the NE555 as a precision timing circuit that can produce accurate time delays or oscillation.1 In teacher language, that means the chip can help a circuit do one of two beginner-friendly jobs:
- Wait and then respond once. That is the one-shot or monostable idea.
- Keep turning on and off repeatedly. That is the repeating-pulse or astable idea.
Those two behaviors are enough to make the 555 timer useful in blinking LEDs, simple alarms, pulse generators, and basic timing experiments. Students do not need to memorize comparator thresholds on day one. They need to recognize that one chip can turn resistor-capacitor timing into a visible output.
Why it is called a timer
The word timer can mislead beginners because the chip does not tell time like a clock on a wall. It controls how long something waits or how often something repeats. The timing comes from the resistor and capacitor connected to the chip. The current TI datasheet still shows that monostable and astable operation depend on an external RC network.2
That makes the 555 especially useful in teaching because students can change a resistor or a capacitor and then see the timing change. It turns an abstract RC idea into something visible.
The two beginner modes worth teaching first
| Mode | What students see | How to explain it |
|---|---|---|
| Monostable | One timed output after a trigger | Press a button or send a pulse, and the chip stays on for a short set time. |
| Astable | A repeating on-off pattern | The chip keeps making pulses, so an LED can blink over and over. |
For most first lessons, that is enough. Monostable mode answers the question, "How can one quick trigger create a short timed event?" Astable mode answers, "How can one chip make a repeated blinking pattern?"
The 8 pins in student-friendly language
The 555 timer usually appears as an 8-pin DIP chip in beginner labs. Students do not need a full internal schematic to start using it, but they should know what the pins are for.
| Pin role | Student-friendly meaning |
|---|---|
| Power and ground | These let the chip run. |
| Trigger | This starts a timed action. |
| Threshold | This helps the chip decide when the timing action should stop. |
| Discharge | This helps reset the timing capacitor between cycles. |
| Output | This is the pin that turns the load or LED on and off. |
| Reset and control | These pins support special control features but are not the first idea to teach. |
Teachers can keep the first explanation practical: the 555 watches the voltage around the timing capacitor and changes the output when that voltage reaches the right point. That is a much more useful beginner mental model than trying to unpack the whole internal circuit immediately.
A simple classroom way to introduce it
- Review voltage, resistance, and the role of a capacitor in storing energy.
- Place the chip on a solderless breadboard and identify the notch so students orient pin 1 correctly.
- Use an LED output so the result is visible right away.
- Change the resistor or capacitor and ask students to predict whether the timing gets longer or shorter.
- Connect the result back to the bigger comparison article on current, voltage, and resistance.
That sequence matters because the 555 timer should feel like the next logical step after basic circuit ideas, not a mysterious chip that appears from nowhere.
How modern 555-family parts fit the same lesson
STMicroelectronics' current TS555 page shows that low-power CMOS versions still keep the same core timing idea while using much less supply current than older bipolar NE555-style parts.3 That is useful background for teachers, but it does not change the beginner lesson. Whether the class sees an NE555, LM555, or TS555-family part, the basic teaching point stays the same: the chip creates a delay or pulse pattern from a simple RC setup.
Common beginner mistakes
- Treating the chip like a black box without connecting its behavior to the resistor-capacitor network.
- Teaching the pin numbers before students understand the chip's job.
- Skipping breadboard orientation and placing the DIP package incorrectly across the center gap.
- Starting with equations instead of a visible timed output such as a blinking LED.
- Confusing "timer" with a real-time clock instead of a delay or pulse-making circuit.
When a product link helps
If a teacher wants to move from concept to guided build, the Mr Circuit Lab 5 Digital Electronics STEM Kit is a relevant next step because it places the 555 timer inside a larger digital-electronics sequence. For broader program planning, the For Schools and Educators page is the better resource.
FAQ
Is a 555 timer analog or digital?
It is often taught in both contexts. It is an integrated circuit used in timing and pulse applications, and students usually meet it while learning how analog timing can create digital-looking outputs.
What is the easiest 555 timer demo?
A blinking LED in astable mode is usually the easiest. Students can immediately see that changing the resistor or capacitor changes the blink rate.
Why is a capacitor important in a 555 timer lesson?
Because the capacitor charges and discharges over time, and the chip uses that changing voltage to decide when the output should switch.
Should students learn the 555 timer before logic gates?
It depends on the course sequence, but students should usually know breadboards, voltage, resistance, and simple outputs first. After that, the 555 timer makes sense as a bridge into more advanced digital topics.
