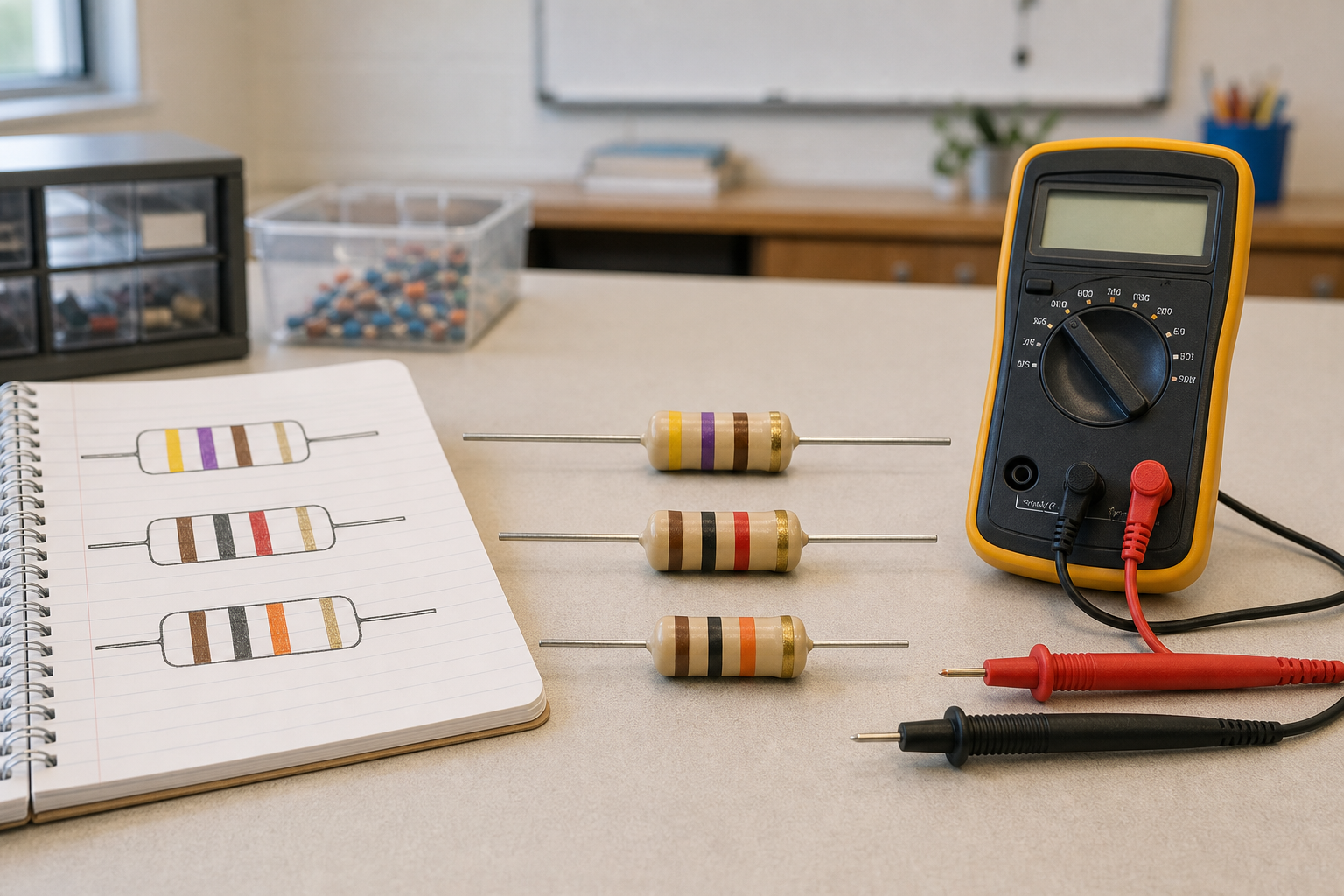

You do not need to memorize the resistor color code to read a resistor correctly. Start by finding the tolerance end, read the significant-digit bands from the opposite side, apply the multiplier, and then check whether the result makes sense. For a four-band resistor, that pattern is two digits + multiplier + tolerance. For a five-band resistor, it is three digits + multiplier + tolerance.
A color chart is a reference tool, not a shortcut around understanding. Once students know what each band position does, they can decode unfamiliar values, explain their work, and verify the result with a multimeter. The color system is standardized through IEC 60062, which covers resistor value and tolerance markings.
What does each resistor color band mean?
The same color may represent a digit, a multiplier, or a tolerance depending on its position. That positional idea is more important than any mnemonic.
| Resistor type | Band roles from left to right | Typical beginner use |
|---|---|---|
| 4-band | Digit, digit, multiplier, tolerance | Common general-purpose resistors |
| 5-band | Digit, digit, digit, multiplier, tolerance | More precise values, often tighter tolerance |
| 6-band | Five-band code plus temperature coefficient | Precision applications; usually an extension topic |
Use this compact reference for the most common codes. A manufacturer's chart, such as Vishay's four- and five-band resistor chart, is a useful verification source.
| Color | Digit | Multiplier | Common tolerance use |
|---|---|---|---|
| Black | 0 | ×1 | — |
| Brown | 1 | ×10 | ±1% |
| Red | 2 | ×100 | ±2% |
| Orange | 3 | ×1,000 | — |
| Yellow | 4 | ×10,000 | — |
| Green | 5 | ×100,000 | ±0.5% |
| Blue | 6 | ×1,000,000 | ±0.25% |
| Violet | 7 | ×10,000,000 | ±0.1% |
| Gray | 8 | ×100,000,000 | ±0.05% |
| White | 9 | ×1,000,000,000 | — |
| Gold | — | ×0.1 | ±5% |
| Silver | — | ×0.01 | ±10% |
For beginners, it is enough to keep the table nearby and say each role aloud: “digits, multiplier, tolerance.” If students first need the concept behind the component, review what resistance means before decoding markings.
Which end of a resistor do you read first?
Look for a band that is spaced farther from the others; that is often the tolerance band and belongs on the right. Gold and silver are common tolerance colors, and neither can be a significant digit, so they are strong orientation clues. A brown tolerance band is common on 1% parts, but brown can also be a digit. In that case, use spacing and the grouping of the remaining bands rather than color alone.
If both directions still look possible, decode both, compare the results with common values or the circuit documentation, and measure the resistor out of circuit. Faded paint, unusual precision parts, and cramped band spacing can make visual orientation genuinely ambiguous. Guessing is not a learning objective.
How do you read a four-band resistor?
- Place the likely tolerance band on the right.
- Convert bands one and two into two digits.
- Multiply that two-digit number by band three.
- Use band four to state the tolerance.
Example 1: yellow-violet-brown-gold
Yellow is 4 and violet is 7, so the significant number is 47. Brown is a ×10 multiplier. Therefore, 47 × 10 = 470 Ω. Gold means ±5%. The complete reading is 470 Ω ±5%.
Example 2: brown-black-orange-gold
Brown is 1 and black is 0, giving 10. Orange is ×1,000. Therefore, 10 × 1,000 = 10,000 Ω, which is 10 kΩ ±5%. Encourage students to write the ohm value first and then convert to kilo-ohms; that reduces mistakes with zeros.
Example 3: green-blue-gold-gold
Green is 5 and blue is 6, giving 56. Gold in the multiplier position means ×0.1, so 56 × 0.1 = 5.6 Ω ±5%. This example is useful because it proves that “the third band adds zeros” is not a complete rule. The third band is a multiplier, and multipliers may be smaller than one.
How is a five-band resistor different?
A five-band resistor adds one more significant digit before the multiplier. For brown-black-black-red-brown, the first three bands produce 100, red multiplies by 100, and the last brown band gives ±1%. The result is 100 × 100 = 10,000 Ω ±1%, or 10 kΩ ±1%.
Students do not need a second color system. They only need to shift the grouping from “two digits, then multiplier” to “three digits, then multiplier.” SparkFun's resistor-marking guide shows the same distinction and also explains that a sixth band may indicate temperature coefficient.
What does resistor tolerance mean?
Tolerance is the permitted difference between the labeled value and the actual manufactured value. It does not mean the resistor changes randomly by that amount while students use it.
For a 470 Ω resistor with ±5% tolerance:
- Five percent of 470 Ω is 23.5 Ω.
- Expected minimum: 470 − 23.5 = 446.5 Ω.
- Expected maximum: 470 + 23.5 = 493.5 Ω.
A room-temperature meter reading inside that range is consistent with the marking and tolerance, allowing for the meter's own accuracy and test conditions. This calculation connects naturally to an Ohm's law lesson and helps students see why component values are specifications rather than perfect numbers.
How do you check a resistor with a multimeter?
Use the bands to predict first, then measure. According to Fluke's resistance-measurement guidance, power should be off, capacitors should be discharged where applicable, and the component should ideally be removed from the circuit. Other paths in a connected circuit can change the reading.
- Disconnect all power. For a loose classroom resistor, keep it completely separate from a battery or supply.
- Put the black lead in COM and the red lead in the V/Ω jack.
- Select resistance (Ω). Use autorange, or choose a range above the predicted value.
- Touch one probe to each resistor lead. Do not hold both metal probe tips with your fingers.
- Read the unit indicator carefully: Ω, kΩ, and MΩ differ by factors of 1,000.
- Compare the measurement with the tolerance range, not just the nominal center value.
If a resistor remains installed in a circuit, parallel paths can make the apparent resistance lower. Lift one lead or remove the part when an accurate component reading is required. See the full guides to measuring resistance and teaching digital multimeter use for more classroom detail.
A 10-minute classroom routine that builds understanding
- Sort: Give each pair three loose, labeled four-band resistors and a reference chart.
- Orient: Students identify the likely tolerance end and explain the clue they used.
- Predict: They record digits, multiplier, nominal value, tolerance, and expected range.
- Measure: Students use an appropriately configured meter on each unpowered loose resistor.
- Explain: They compare the measured value with the expected range and diagnose any mismatch.
Grade the reasoning, not recall. A student who uses a chart accurately and explains “47 times 10 gives 470 Ω” understands more than a student who recites color names without knowing band roles. Follow the exercise with a resistor-and-LED circuit or the guide to why LEDs need resistors.
Common resistor color-code mistakes
- Reading backward: use spacing, tolerance colors, and verification rather than assuming every gold-looking band is perfectly clear.
- Treating the multiplier as another digit: group the significant digits first, then multiply.
- Always adding zeros: gold and silver multipliers represent 0.1 and 0.01.
- Ignoring units: write Ω first, then convert to kΩ or MΩ.
- Measuring a powered circuit: resistance mode supplies its own small test signal; remove power before measuring.
- Assuming every resistor uses bands: surface-mount resistors commonly use printed numeric or alphanumeric codes instead.
Frequently Asked Questions
Do I need to memorize all resistor colors?
No. Keep a reliable chart nearby and learn the positional pattern. With repetition, common colors become familiar naturally.
Why is the tolerance band usually separated?
The gap helps show the reading direction and distinguishes tolerance from value bands. Spacing varies, so verify ambiguous parts.
Is a gold band always the last band?
No. Gold is commonly a ±5% tolerance band at the end, but it can also be a ×0.1 multiplier in the multiplier position.
Why does my multimeter not match the color code exactly?
Real resistors have tolerance, and meters have accuracy limits. In-circuit parallel paths, poor probe contact, unit mistakes, and touching conductive probe tips can also affect readings.
Can I measure resistance while a circuit is powered?
No. Disconnect power before using resistance mode, and follow the meter and equipment manufacturers' safety instructions.
What if the resistor bands are faded or ambiguous?
Remove the resistor from the circuit, measure it with a properly configured multimeter, and compare the result with documentation or a standard value series. Do not rely on a forced visual guess.
