Ohm's Law in One Class Period: A Teacher's Walkthrough

Teach Ohm's law in one 45-minute class with a low-voltage circuit, prediction and measurement table, LED resistor example, and exit ticket.

T
The Mr Circuit Team Mr Circuit
July 22, 2026 7 min read

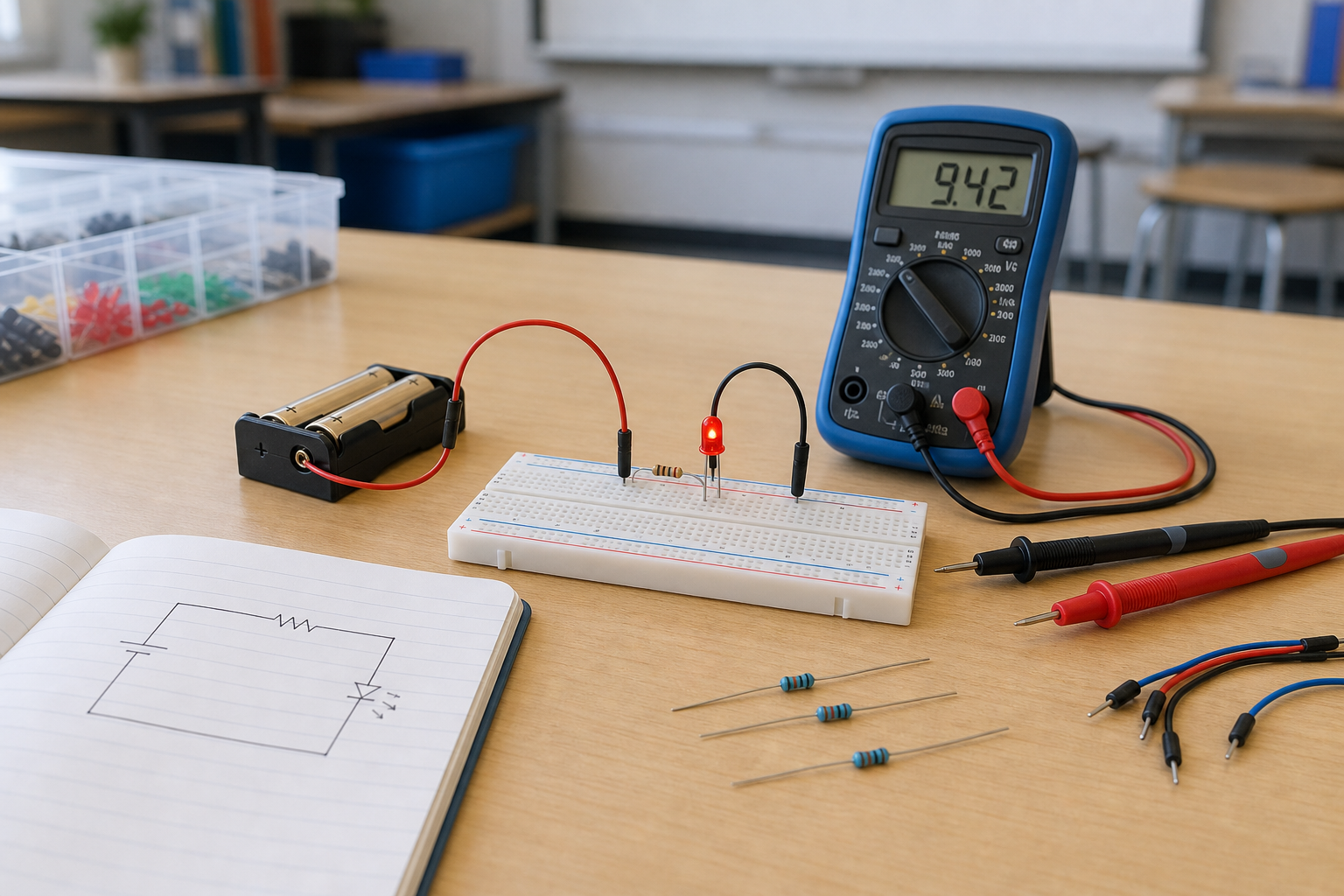

Breadboard Ohm's law activity with a low-voltage LED circuit, resistors, and digital multimeter in a STEM classroom

Ohm's law can fit into one 45-minute class when students do more than copy V = IR. The most effective sequence is to predict how current will change, calculate one simple case, build a low-voltage resistor circuit, measure it, and explain the result. Students leave with a relationship they can use—not just a formula triangle they may forget.

This lesson is designed for a first quantitative circuit experience in middle school STEM, physical science, high school electronics, CTE, or homeschool. If students still confuse the three quantities, begin with current vs. voltage vs. resistance before starting the timer.

What should students understand before using Ohm's law?

Ohm's law describes the relationship among voltage, current, and resistance for an ohmic component under stable conditions. In the common form V = I × R, voltage is measured in volts, current in amperes, and resistance in ohms. Some electronics courses use E for voltage and write E = IR; the relationship is the same.

  • Voltage (V) is electric potential difference between two points.
  • Current (I) is the rate of charge flow through a complete path.
  • Resistance (R) describes how strongly a component opposes current.

At a fixed resistance, increasing voltage increases current. At a fixed voltage, increasing resistance decreases current. That proportional reasoning is the lesson's real target. OpenStax also makes an important qualification: the linear relationship does not apply universally. A fixed resistor is a good starting model; an LED is not an ohmic device.

For short refreshers, use Mr Circuit's student-friendly explainers on voltage, current, and resistance.

Materials for a one-period Ohm's law lab

Each pair or team needs a teacher-approved low-voltage battery supply, a solderless breadboard, jumper wires, two or three known resistors, and a digital multimeter. A red LED and an appropriate current-limiting resistor are useful for the final design challenge. Never connect a classroom breadboard activity to household mains power.

Before class, confirm the battery voltage, inspect leads and holders, and check resistor values. Set one completed sample aside for troubleshooting. If multimeters are new to the class, review how to use a digital multimeter, especially the difference between measuring voltage across a component and measuring current in series with the circuit.

A classroom kit is convenient but not required. The current Mr Circuit Lab 1 classroom set is one integrated option when teachers want breadboard experiments, instructions, and reusable components in the same system.

A 45-minute Ohm's law lesson plan

Time Teacher move Student evidence
0-5 min Show two circuits with the same voltage and different resistors. Ask which should have more current and why. A written prediction using “more,” “less,” or “same.”
5-10 min Introduce V = IR, I = V/R, and R = V/I. Connect each symbol to its unit. Students label known and unknown quantities in one example.
10-15 min Model one calculation: 6 V across 1,000 Ω gives 0.006 A, or 6 mA. Students convert amperes to milliamperes correctly.
15-28 min Teams build a resistor-only low-voltage circuit and measure voltage, resistance, and current as directed. A completed prediction-and-measurement row.
28-35 min Change one variable. Keep voltage fixed and swap resistance, or keep resistance fixed and change battery voltage. Students describe the direction of change before calculating.
35-41 min Add the LED design example and subtract the LED's forward voltage before selecting its series resistor. A resistor calculation with units and a reasonable standard value.
41-45 min Run the exit ticket and collect one misconception to revisit. A prediction, calculation, and one-sentence explanation.

The Physics Classroom supports this mix of conceptual questions, calculations, and proportional reasoning. TeachEngineering uses a similar hands-on structure: students change resistance, calculate current, observe circuit behavior, and plot the relationship.

Use a prediction-and-measurement table

Give students the first voltage and resistance values, then require a current prediction before the meter is connected. The exact readings will vary with battery condition, resistor tolerance, meter burden, and connections. The goal is not a perfect match; it is a defensible explanation of the pattern.

Trial Measured voltage Resistance Predicted current Measured current What changed?
1 6 V 1 kΩ 6 mA Student result Baseline
2 6 V 2.2 kΩ 2.7 mA Student result More R, less I
3 3 V 1 kΩ 3 mA Student result Less V, less I

Have students calculate in amperes first and convert to milliamperes at the end: 1 A = 1,000 mA. This prevents the most common thousand-fold error. If supplies or time are limited, the PhET Circuit Construction Kit: DC can support the prediction step before a physical build.

Why does the LED measurement differ from V divided by R?

The simplest resistor-only model assumes the known supply voltage appears across the resistor. In an LED series circuit, the LED also has a forward voltage. To estimate resistor current, first find the voltage across the resistor:

Vresistor = Vsupply − VLED

Then use I = Vresistor / R. For a 9 V supply, a red LED with an assumed 2 V forward voltage, and a 470 Ω resistor, the estimate is 7 V ÷ 470 Ω, or about 0.0149 A (14.9 mA). Actual forward voltage varies by LED and operating conditions, so students should consult the component information and measure rather than treat color estimates as exact specifications.

SparkFun's Ohm's law tutorial makes the same crucial distinction: an LED is non-ohmic, while the series resistor can be selected with Ohm's law after accounting for the LED's voltage drop. Mr Circuit's guide to why LEDs need resistors is a useful student follow-up.

Common mistakes to catch during the lab

  • Measuring current across the supply: an ammeter must be inserted in series. Placing it directly across a battery can create a very low-resistance path and may damage the meter or its fuse.
  • Measuring resistance on a powered circuit: disconnect power and follow the meter manufacturer's instructions before using the resistance mode.
  • Mixing amperes and milliamperes: write the unit beside every number and convert deliberately.
  • Reading the wrong resistor: verify the bands with the resistor color-code guide or measure the isolated resistor.
  • Treating every component as ohmic: LEDs, lamps as they heat, and many sensors do not maintain one fixed resistance under all conditions.
  • Chasing an exact match: ask whether the measured result is reasonably close and whether the direction of change matches the prediction.

A quick exit ticket that tests understanding

  1. A 6 V source is connected across a 2 kΩ resistor. Predict the current in milliamperes.
  2. If resistance doubles while voltage stays constant, what happens to current?
  3. Why should the LED's forward voltage be subtracted before calculating its series resistor?

Answers: 3 mA; current is halved; the resistor receives only the part of the supply voltage not dropped across the LED. Students who can explain all three are ready to compare series and parallel resistance or design an LED indicator under a current constraint.

Frequently Asked Questions

What is the easiest way to explain Ohm's law?

Describe it as a relationship: more voltage produces more current when resistance stays fixed, while more resistance produces less current when voltage stays fixed. Add the equation after students can predict those directions.

What grade level is appropriate for an Ohm's law lesson?

Many middle school students can handle qualitative predictions and simple division with friendly numbers. High school students can extend the work to unit conversions, graphs, component tolerances, and non-ohmic behavior.

Should students memorize the Ohm's law triangle?

A triangle can be a reminder, but it should not replace understanding. Students should identify which quantity is fixed, predict the direction of change, and then rearrange V = IR.

Why are measured and calculated currents different?

Real batteries, resistors, meters, wires, and contacts are not ideal. Resistor tolerance and battery voltage matter, and an LED adds a forward-voltage drop. A small difference is evidence to analyze, not automatically a mistake.

Can Ohm's law be taught without physical components?

Yes. A circuit simulation can support predictions and repeated trials. A physical low-voltage build is still valuable when available because students must connect the meter correctly and troubleshoot real connections.

What is a safe power source for a beginner lesson?

Use a teacher-approved low-voltage battery supply that matches the components and school policies. Do not use household mains power. Inspect equipment and follow the manufacturers' instructions for meters, batteries, and components.

For class-set planning, purchasing support, or reusable electronics-lab options, visit the Mr Circuit schools and educators page.

Last updated: July 20, 2026.
