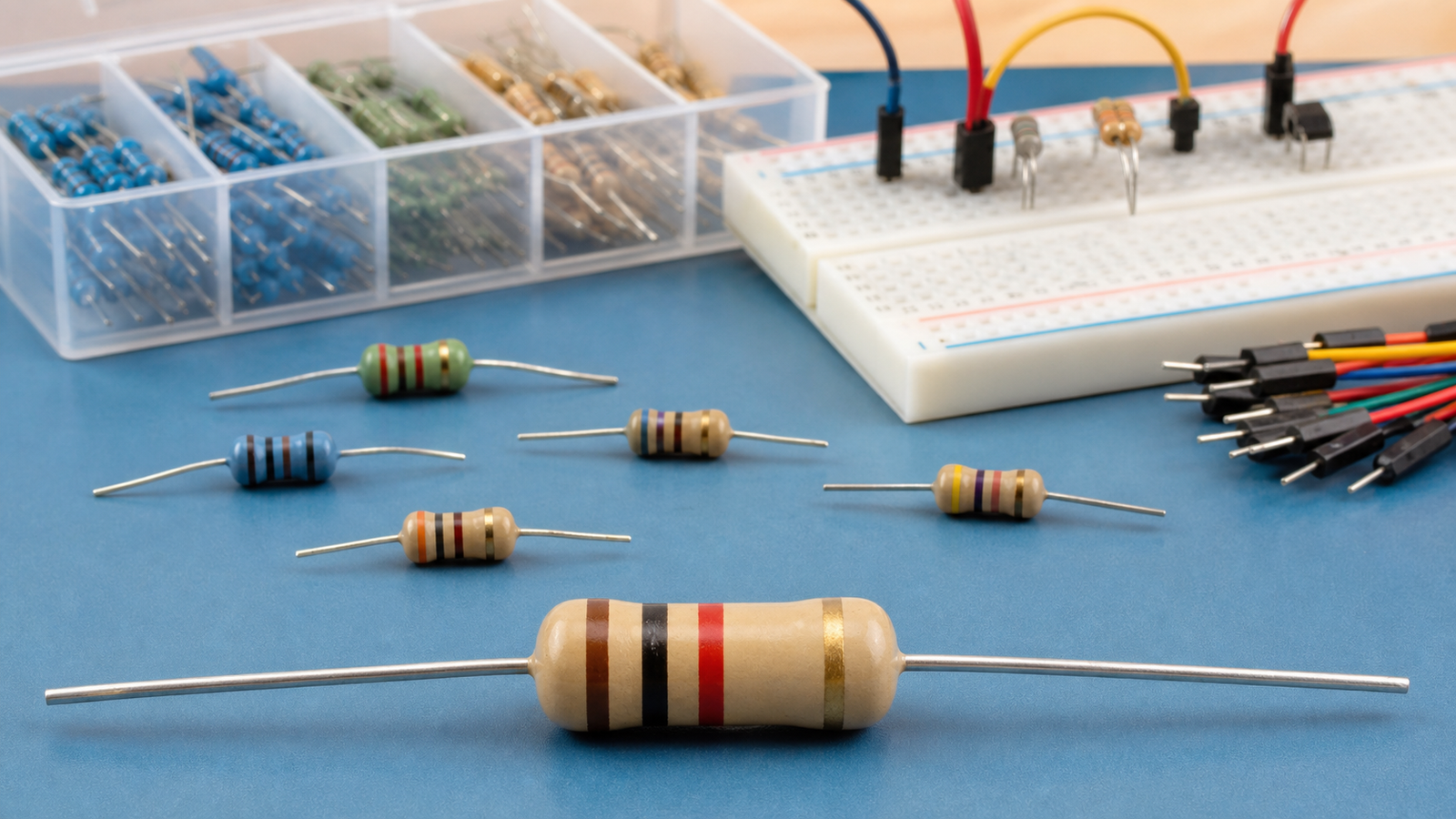

A 100Ω resistor and a 1MΩ resistor look almost identical until you read their bands. Mr Circuit Lab 1201 ships fourteen resistors — every value from 100Ω up to 1MΩ — all of them 4-band ±5% gold-band parts. There is no shortcut for telling them apart by sight. There is, however, a way to read the bands that does not rely on memorizing a chart.
Lab 1201 splits resistor decoding across three lessons. Lesson 4 teaches the 4-band ±5% code. Lesson 5 is twenty minutes of practice with the actual resistors out of the kit. Lesson 6 introduces the 5-band ±1% code that shows up on precision parts. Lab 1101 Lesson 3 covers the same 4-band code earlier in the entry-level kit. Here is the version we walk new teachers through.
What the bands are actually doing
A 4-band resistor encodes three numbers and a tolerance. The first two bands are digits — pull them off the body and write them next to each other. The third band is a multiplier — count the zeros to add. The fourth band is the tolerance — almost always gold, which means ±5%.
That is the whole code. If a student gets stuck, it is almost always because they tried to skip past those four ideas straight to a color chart.
Reading a 4-band 5% resistor in three steps
Hold the resistor with the gold band on the right. The other three bands are now in reading order, left to right.
Step one: read the first band. Write down the digit it stands for — black is 0, brown is 1, red is 2, orange is 3, yellow is 4, green is 5, blue is 6, violet is 7, gray is 8, white is 9.
Step two: read the second band the same way. Now you have a two-digit number.
Step three: read the third band as a multiplier. Brown adds one zero, red two, orange three, yellow four, and so on. Black is no zeros.
A 470Ω resistor reads yellow-violet-brown-gold. Yellow is 4, violet is 7, brown is one zero — 470. The gold band is ±5%.
A 6.8kΩ resistor reads blue-gray-red-gold. Blue is 6, gray is 8, red is two zeros — 6800, or 6.8kΩ.
That covers every 4-band part you will hand a student in Lab 1101 or Lab 1201.
The 5-band 1% wrinkle
Lesson 6 introduces the ±1% resistor. These have five bands. The reason is precision — a ±1% part needs three significant digits instead of two.
Same rules apply, with one shift. Hold the brown tolerance band on the right. The remaining four bands now read first digit, second digit, third digit, multiplier. A 4.99kΩ ±1% resistor reads yellow-white-white-brown-brown — 4, 9, 9, multiplied by ten, with the final brown band as the tolerance.
We teach the 4-band code first because the 5-band code only changes the count of digits, not the meaning of the colors. A student who can read a 4-band part can read a 5-band part five minutes later.
A short list of values to recognize on sight
Across the four labs, a handful of values come up over and over. We tell teachers to drill these as flashcards on day one, then never again:
- Brown-red-red-gold = 1.2kΩ — the default LED ballast across Lab 1301 and Lab 1501.
- Yellow-violet-brown-gold = 470Ω — the Lab 1201 standard for a red LED on a 9V supply.
- Brown-black-red-gold = 1.0kΩ — the workhorse current-limiter.
- Brown-black-orange-gold = 10kΩ — the standard pull-down across Lab 1301 transistor gates.
Once those four are automatic, every other resistor in the kit decodes from the same three steps.
Where to take it next
Lab 1101 introduces the color code in Lesson 3 and puts it to work across all 30 experiments. Lab 1201 spends three lessons making it muscle memory before any Ohm's Law math begins. Both ship a 9V battery, a solderless circuit board, and the resistors students need to practice on real parts. Both are at mrcircuittechnology.com. School POs welcome; free tech support at 805-295-1642 or MrCircuit23@gmail.com.
