How to Find a Short Circuit

Learn how to find a short circuit in a simple classroom circuit using a safe power-off routine, resistance checks, and targeted breadboard inspection.

T
The Mr Circuit Team Mr Circuit
June 29, 2026 6 min read

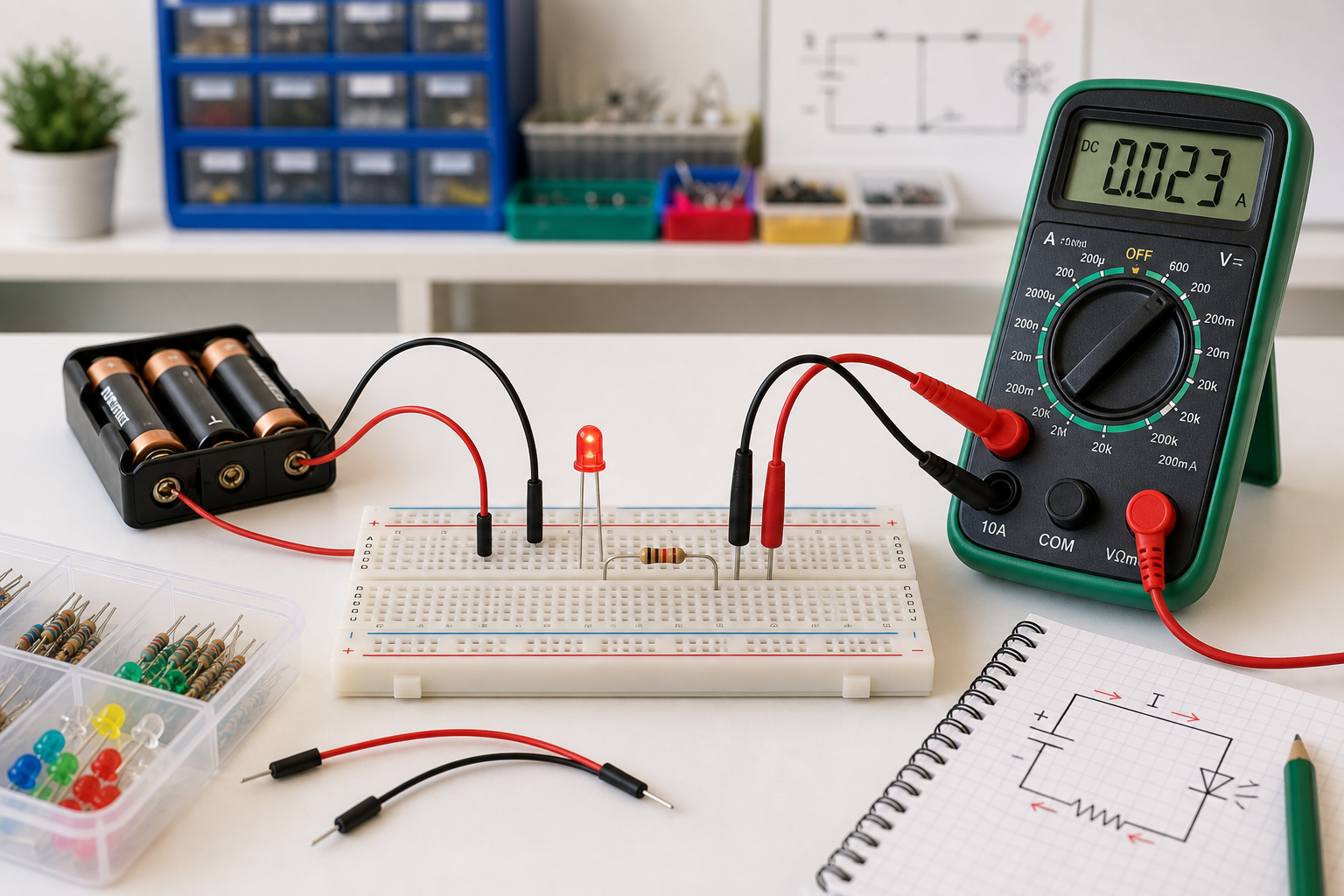

Multimeter checking for a short circuit on a simple breadboard with a bypassed load

To find a short circuit, disconnect power first and look for a path that is bypassing the intended load with very low resistance. In beginner breadboard circuits, the most common causes are jumper wires in the wrong rows, exposed leads touching, or a connection that sends current around the resistor, LED, buzzer, or other part that should have been in the loop.

Last updated: June 28, 2026

Students often confuse a short circuit with any circuit that “does not work.” The important difference is that a short does create a path, just not the right one. Instead of sending current through the intended load, the circuit finds an easier route. That can leave an LED dark, make a battery warm, trip a fuse, or cause a meter reading that makes no sense to beginners.

What a short circuit really is

A short circuit is an unintended low-resistance path. In a classroom circuit, that usually means two points became directly connected when they should have been separated by a component or by a controlled path. Mr Circuit's short circuit explainer is the best place to review the definition. This guide focuses on how to locate the fault safely.

Recognize the warning signs first

Before using the meter, students should notice what the circuit is doing. If the battery gets warm, a protective fuse opens, the load never turns on, or a jumper wire seems to bypass part of the build, a short is a reasonable suspicion. Those observations help students decide where to look instead of probing every point at random.

Symptom Why it suggests a short What to inspect first
LED stays off but the battery drains quickly Current may be bypassing the LED and resistor Rows around the LED and resistor legs
Battery or wires feel warm Too much current may be flowing through a low-resistance path Direct connections across power rails
Meter fuse blows during a bad setup The meter may have been inserted incorrectly or across the source Probe jack placement and meter mode
Load is bypassed entirely The current found an easier route Any jumper that connects both sides of the load

Power off before resistance or continuity checks

Keysight and Fluke both treat continuity and resistance as power-off diagnostic tools. That matters in class because a short can already be stressing the source. Disconnect the battery or power supply first. Then switch the meter to continuity or ohms using the same setup explained in the multimeter teaching guide.

If students need a refresher on resistance readings, the resistance article is the best supporting resource. A suspected short usually appears as very low resistance between points that should not be directly connected.

Check the path that should not exist

A continuity beep is only useful when students already know what the circuit should do. The right question is not “Do these points connect?” The right question is “Should these points connect directly right now?” If the answer is no but the meter shows continuity or extremely low resistance, the short is likely between those points.

That is especially important on breadboards. Students may place two leads in the same conductive row without realizing it, or they may add a jumper that connects around the load instead of through it.

Three common classroom short circuits

1. A jumper wire bypasses the LED and resistor. Instead of flowing through the normal load path, current goes through the accidental jumper.

2. Two exposed leads touch after students bend parts into place. This often happens when resistor or LED legs are left too long.

3. Students measure current the wrong way. In current mode, a meter must be placed in series. If it is placed across the source, it can create a near-short path. That is why the LED current article emphasizes the correct series setup.

A safe routine for finding the short

  1. Disconnect power immediately if the circuit heats up or behaves abnormally.
  2. Compare the actual wiring to the intended circuit path.
  3. Look for direct rail-to-rail connections or jumpers that bypass the load.
  4. Use continuity or resistance mode on suspicious points that should not connect directly.
  5. Remove one suspect jumper or component at a time and retest.
  6. Rebuild the smallest questionable section instead of rewriting the whole circuit from memory.

This process is slower than guessing, but it teaches students how to reason from evidence. It also matches the approach in the troubleshooting checklist, where the goal is to test one explanation at a time.

Use expected resistance as a clue

If there should be a resistor, lamp, motor, or other load between two points, a reading near zero ohms is a strong warning sign. The exact value depends on the design, but students should know the difference between “a normal component path” and “almost no resistance at all.” That comparison is more useful than memorizing numbers without context.

Check Expected result Why it matters
Across two points that should be separated by a resistor Not near-zero resistance A near-zero reading can mean the resistor is bypassed
Across power rails when the build is not meant to connect them directly No direct continuity Direct continuity can indicate a short across the source
Across a removed jumper wire Continuity through the wire only Confirms the wire itself is normal; the placement may not be

Common mistakes that create short circuits

  • Connecting both resistor legs into the same breadboard row pattern by accident.
  • Running a jumper from positive to the wrong side of the load.
  • Leaving stripped wire ends long enough to touch nearby metal.
  • Using the current jack and then forgetting to move the probe back before the next test.
  • Changing several wires at once and losing the original intended layout.

That last mistake is especially important. Students often “fix” a short by completely rebuilding the circuit without understanding what caused it. Sometimes that gets the circuit working again, but it does not build troubleshooting skill.

Why short-circuit diagnosis matters in class

Finding a short circuit helps students see that not every connection is a good connection. It also builds safer measurement habits because they learn to disconnect power first, inspect for bypasses, and use the meter intentionally. Those habits carry forward into later lessons on motors, sensors, and robotics.

For broader classroom support, For Schools and Educators is the best internal resource page. If a program needs more structured measurement practice, the optional Mr Circuit Lab 2 digital multimeter STEM kit is the most natural product reference.

Frequently Asked Questions

What is the easiest way to spot a short circuit?

Disconnect power, inspect for an unintended bypass path, and use continuity or resistance mode to check whether points that should be separate are directly connected.

Does a continuity beep always mean there is a short circuit?

No. It only suggests a short if the two points are not supposed to connect directly in the circuit design.

Can a short circuit keep an LED from turning on?

Yes. If current bypasses the LED and resistor, the LED may stay off even though the circuit still has a path.

Why should students disconnect power before testing for a short?

Because continuity and resistance checks are power-off tests, and a live short can stress the source or create more damage.

What breadboard mistake causes shorts most often?

Placing jumper wires or component leads into rows that connect directly when students thought they were separate.
