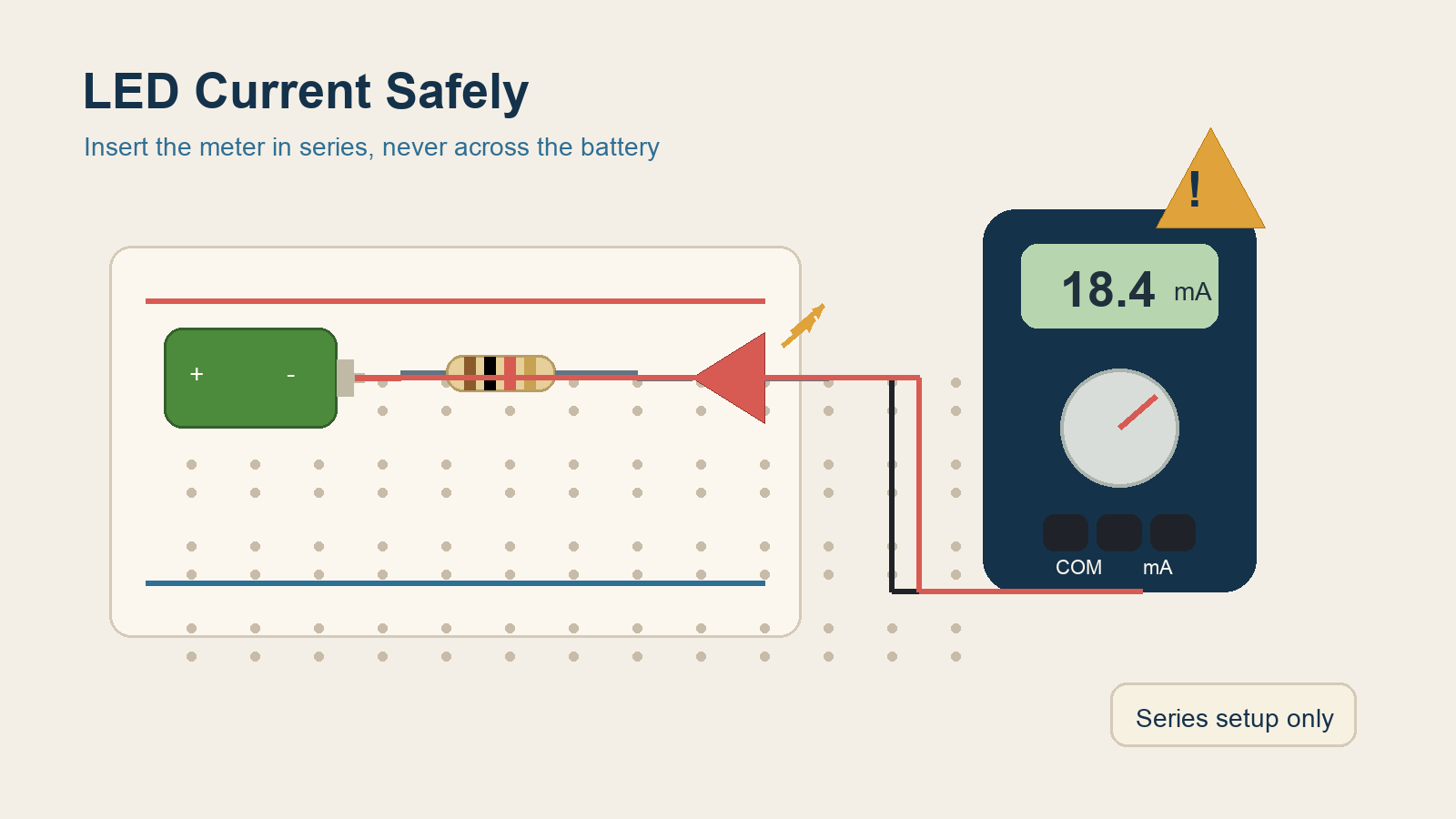

To measure LED current safely, turn the multimeter to DC current, move the red lead to the correct current jack only when needed, break the circuit, and place the meter in series so the LED current flows through the meter. Never place a meter set to current across the battery or LED in parallel, because that can short the circuit.
Last updated: June 27, 2026
This topic needs more caution than a typical beginner measurement lesson. Voltage measurements happen across a component. Current measurements do not. To measure current, the meter becomes part of the circuit path. If students do not understand that difference, they can make the exact mistake the meter manuals warn about: using the current setting while touching the probes across the source.
What LED current means
LED current is the rate of charge flow through the LED's series path, usually measured in milliamps. Students who already understand what current means in a circuit have a much easier time with this lesson, because they can see why the meter has to sit in the same path as the LED instead of merely touching two points from the outside.
This is also why LED resistor protection should be taught before current measurement. The resistor keeps the circuit in a safer, more predictable range and gives students a controlled example to measure.
Voltage measurement and current measurement are not the same
| Measurement type | Where the meter goes | Main beginner rule |
|---|---|---|
| Voltage | Across the source or component | The meter reads the difference between two points |
| Current | In series with the circuit path | The current must flow through the meter |
Keysight's current-measurement guide and Fluke's manuals both make this point clearly. To read current, you have to break the test circuit and insert the meter in series. Fluke also warns not to put the probes across a circuit or component when the leads are connected to the current terminals.
Use the simplest possible LED test circuit
The safest classroom example is one battery pack, one resistor, and one LED on a breadboard. That is enough to show the rule without adding extra confusion. Students can review how a resistor works in a simple LED circuit first, then use the same build for current measurement.
The point of the activity is not to chase a perfect number. The point is to teach correct setup, correct series placement, and correct reset habits after the reading.
Set up the meter for current safely
| Step | Student action | Why it matters |
|---|---|---|
| 1 | Turn circuit power off before changing leads. | Lead changes should not happen on a live student circuit. |
| 2 | Move the black lead to COM and the red lead to the correct current jack. | Current mode uses a different input path inside the meter. |
| 3 | Select DC current. | Battery-and-LED circuits are direct current circuits. |
| 4 | Break the LED circuit at one point. | The meter needs to become part of the path. |
| 5 | Insert the meter in series and restore power. | The display now shows the current through that path. |
| 6 | When finished, power off and move the red lead back to the V/ohms jack. | This prevents the next student from making a voltage-check mistake in current mode. |
That last reset step matters more than many teachers expect. A lot of current-measurement mistakes happen after the measurement, when the red lead stays in the current jack and someone later tries to measure voltage the usual way.
Where to break the LED circuit
Break the path at one obvious point, such as between the resistor and the LED or between the battery lead and the resistor path. Then use the meter to reconnect that open gap. If the current is flowing through the LED path, it must also flow through the meter.
That is the classroom-safe way to explain series insertion: the meter is temporarily becoming a piece of the wire. It is not just “touching” the circuit the way a voltage measurement does.
What students should never do
| Mistake | What happens | Teacher correction |
|---|---|---|
| Meter on current mode across the battery | Can short the source or blow the meter fuse | Reinforce that current measurements go in series, not parallel |
| No resistor in the LED path | The LED current may become unsafe or uncontrolled | Always build the resistor into the test circuit first |
| Changing meter leads while the circuit is live | Raises the chance of setup mistakes | Power off before moving leads or changing meter mode |
| Leaving the red lead in the current jack after the test | Creates a trap for the next voltage measurement | End every activity with a lead reset check |
Fluke's manuals go even further by advising users to confirm the fuse and use the correct terminals before current measurement. In a classroom, that can become a teacher prep step before the activity begins.
A practical teacher routine for LED current checks
- Build a low-voltage LED circuit with a series resistor.
- Turn power off.
- Move the red lead to the current jack and select DC current.
- Open the circuit at one clear point.
- Insert the meter in series to bridge that gap.
- Restore power and read the current.
- Power off again and move the red lead back to the V/ohms jack.
That sequence keeps the article focused on safe habits, not only on the number. It also connects directly to troubleshooting practice. If the LED is dim or dark, students can first check the source, the resistor, and the path before deciding they need a current measurement at all.
When this lesson is worth teaching
For many beginner classes, voltage and resistance come first because they are simpler. LED current measurement is most useful after students already understand how the LED circuit is supposed to work and why the resistor matters. Then the ammeter lesson feels like an extension of thinking, not just another dial position.
For larger program planning, For Schools and Educators is the best internal resource page. If you want a structured measurement path, the optional Mr Circuit Lab 2 digital multimeter STEM kit is the most relevant product reference.
Frequently Asked Questions
Can students measure LED current the same way they measure battery voltage?
No. Voltage is measured across two points, but current must be measured in series with the circuit path.
Why is a resistor required in the LED test circuit?
The resistor limits current so the LED and the lesson stay in a safer operating range.
What is the biggest current-measurement mistake beginners make?
Placing the meter across the battery while it is set to current mode instead of inserting it in series.
Why move the red lead back after the measurement?
Because leaving it in the current jack can cause a wrong setup the next time someone tries to measure voltage.
Should students start with current measurement before voltage?
Usually no. Voltage and resistance are easier first lessons, and current measurement makes more sense once the circuit behavior is already familiar.
