What Is a Potentiometer? Simple Student Guide

Learn what a potentiometer is, what its three pins do, and how to explain adjustable voltage and resistance in a beginner circuit lesson.

T
The Mr Circuit Team Mr Circuit
June 29, 2026 4 min read

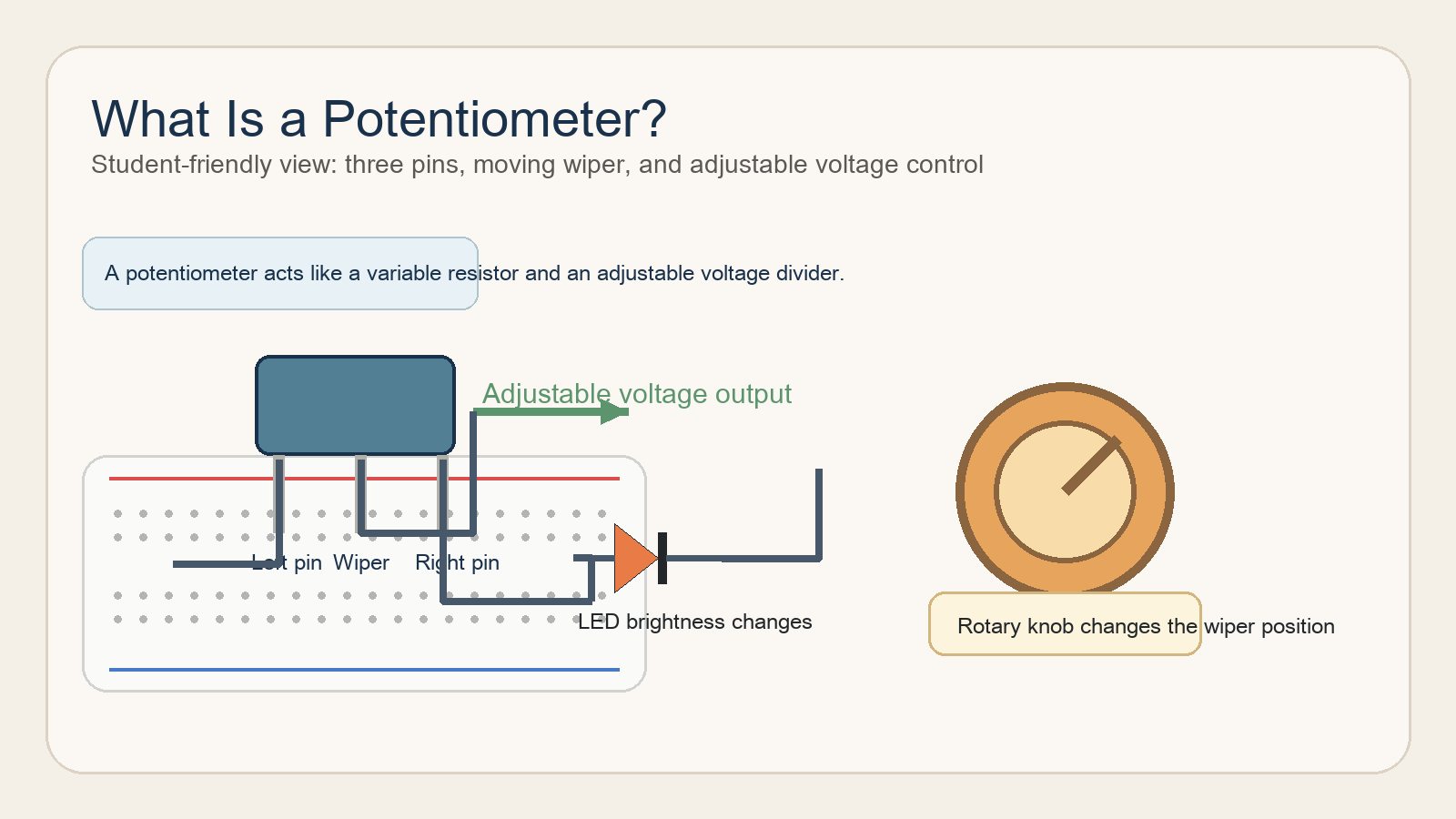

Educational bitmap showing a rotary potentiometer on a breadboard with a knob, three labeled pins, and an LED brightness control example

A potentiometer is an adjustable resistor with a movable center connection called a wiper. In beginner circuits, teachers usually use it to change voltage or resistance so students can watch something respond, such as LED brightness, meter readings, or the input to a simple control circuit.

That makes the part useful in class because it gives students an immediate cause-and-effect result. Turn the knob, the reading changes. Turn it back, the reading changes again. For beginners, that is often the clearest way to connect the abstract idea of resistance to something they can observe and measure.

Two current references are especially helpful here. SparkFun's voltage-divider guide explains that a potentiometer can be used as an adjustable voltage divider, and SparkFun's beginner potentiometer circuit shows how that changing output can control a simple circuit response. Mr Circuit also currently offers a dedicated MC1-02 How a Potentiometer Works experiment kit, which makes this topic a natural fit for the blog.

What a potentiometer does in simple language

The easiest student-friendly explanation is this: a potentiometer gives you a way to adjust a circuit instead of leaving it fixed. A normal resistor stays at one value. A potentiometer lets you move a knob or slider so the circuit changes while you watch.

In many classroom examples, the most important idea is not just "variable resistance." It is that the middle pin can provide an output that changes between low and high. That is why the part is often used to control an LED, set a sensor threshold, or give students a clean analog input example.

The three pins students should understand

Part of the potentiometer What it means in class
Left outer pin One end of the resistive track, often tied to power or a reference side.
Center pin (wiper) The moving connection. This is the pin students usually measure because it changes as the knob turns.
Right outer pin The other end of the resistive track, often tied to ground or the opposite side of the circuit.

If students only remember one word, it should be wiper. The wiper is the part that moves across the resistive track and changes the output. That moving connection is why the part is adjustable.

How to teach the idea without overcomplicating it

A strong first lesson is to connect the outer pins across a low-voltage source and measure the center pin with a meter. Students can rotate the shaft and see the voltage move up or down. That result helps them understand why a potentiometer is such a common beginner control component.

This lesson pairs well with what voltage means, what resistance does, and how a battery creates a usable circuit source. Once students already know those ideas, the potentiometer becomes much easier to explain.

Simple classroom demo: control an LED or meter reading

  1. Identify the two outer pins and the center wiper.
  2. Connect the two outer pins across a safe low-voltage source.
  3. Measure the center pin relative to ground.
  4. Rotate the knob and record how the output changes.
  5. If appropriate, use that changing value to influence LED brightness or another visible output.

This is one of the best early examples of a component that turns a physical action into an electrical change. That also makes it a good bridge to later sensor lessons, because students begin to see that circuits can react to inputs instead of staying fixed.

Common student mistakes

  • Treating the center pin like it is just another outer pin instead of the moving output connection.
  • Forgetting that the potentiometer has different uses depending on whether two pins or all three pins are wired.
  • Turning the knob and expecting the circuit to change when the part is not actually placed in a useful control path.
  • Skipping the meter measurement, which makes the lesson feel like guesswork instead of evidence.

A meter is important here because it helps students connect position to voltage. Without that step, the part can feel mysterious.

Where this fits in the Mr Circuit learning path

The most natural internal product example is the MC1-02 potentiometer lesson kit, because it keeps the topic focused on one exact beginner concept. For teachers planning a larger sequence, the stronger implementation page is For Schools and Educators. The broader Mr Circuit Lab 1 is also relevant because it supports beginner breadboard work, troubleshooting, and component lessons in the same learning path.

If you want to extend the lesson later, a schematic-reading follow-up such as What Is a Schematic Diagram? helps students connect the physical part to the symbol they will see on diagrams.

FAQ

Is a potentiometer the same as a resistor?

It is a resistor-based component, but unlike a fixed resistor, it is adjustable. That is the classroom difference that matters most.

Why does a potentiometer have three pins?

The two outer pins connect to the ends of the resistive track, and the center pin is the wiper that moves to create a changing output.

Do students need to learn the math first?

No. They can first observe that the output changes with knob position. The math can come later if the class is ready for it.

What is the easiest beginner use for a potentiometer?

Measuring the center-pin voltage while turning the knob is usually the clearest first activity.

How does this connect to later lessons?

It prepares students for sensors, analog inputs, threshold settings, and any circuit where a changing input affects an output.

Sources and classroom citations

Last updated: June 20, 2026.
