A 7-segment display is a numeric display made from seven small LED bars arranged so different combinations can form digits. That is why it is such a useful beginner digital-electronics component. Students can see exactly how turning individual segments on and off creates a visible number.
This is one of the clearest ways to connect logic, polarity, resistors, and output devices in the same lesson. Instead of talking about signals in the abstract, teachers can show how each segment becomes part of a real digit.
Why it is called a 7-segment display

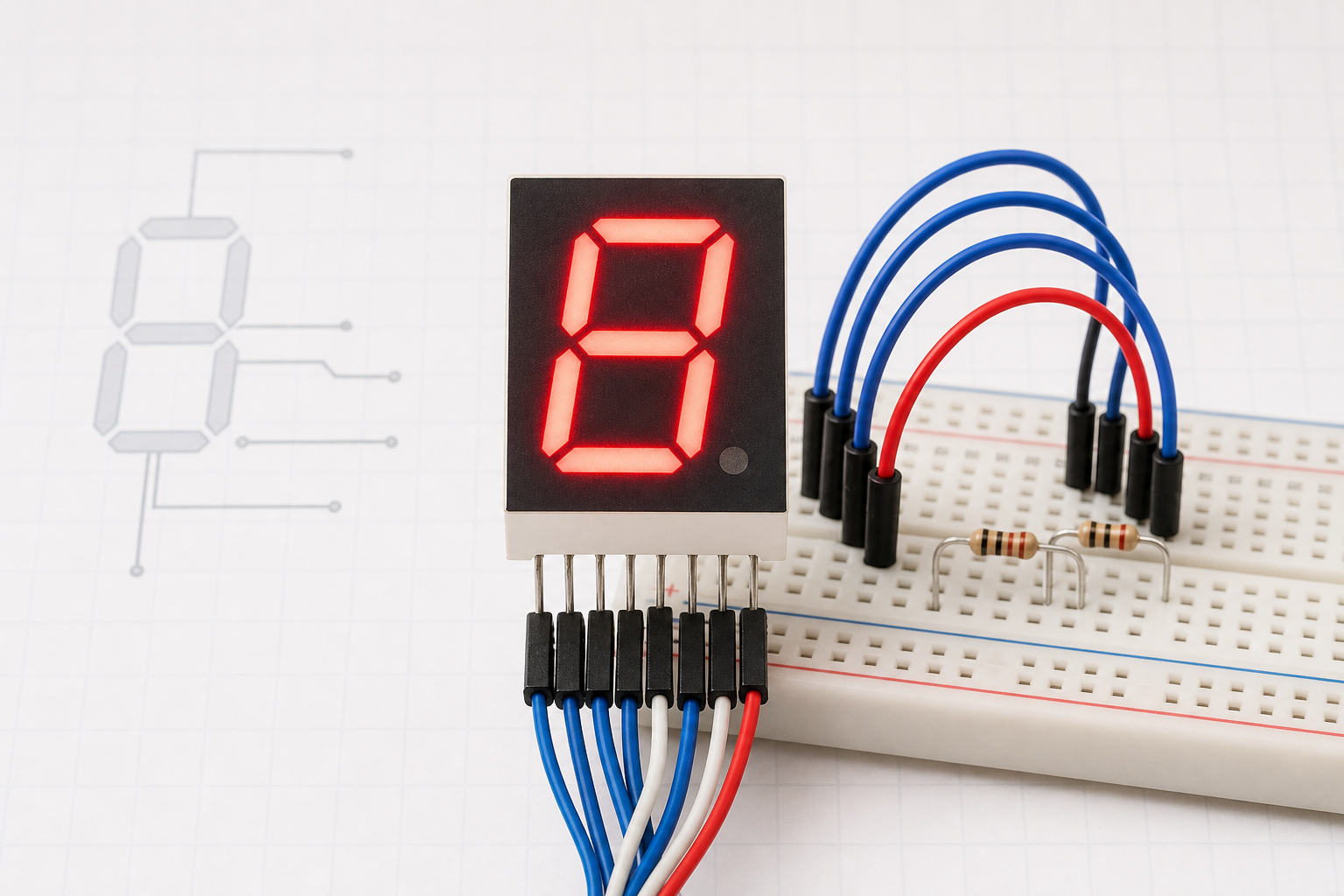

The name is literal. The front face contains seven separate lighted bars, usually labeled a through g. Different combinations of those bars form numbers. When all seven are lit, students see the digit 8. That makes 8 the most useful first demonstration because it proves every main segment can turn on.
Broadcom's current seven-segment display documentation still describes these parts as industry-standard LED display packages available in common-anode or common-cathode versions.1 That is the key technical fact behind the beginner lesson: a 7-segment display is not one lamp. It is several LED segments sharing package connections.
Each segment is still an LED
This is the point many beginners miss. A 7-segment display may look like a single part, but each segment behaves like an LED. That means polarity still matters, and current still needs to be limited. Students who already understand voltage, current, and basic LED behavior are ready for this topic.
| Segment idea | What to say in class |
|---|---|
| a-g labels | These are the seven light bars the circuit can control. |
| Decimal point | Some packages also include a dot for extra display options. |
| Shared connection | Many segments share a common pin arrangement, which is why wiring type matters. |
| Resistors | Each active segment still needs current control just like an ordinary LED. |
Common anode vs common cathode in plain language
Broadcom and Kingbright both document that seven-segment displays are commonly sold in either common anode or common cathode versions.13 Students do not need a dense datasheet lecture, but they do need one clean rule.
| Type | Student-friendly explanation | What turns a segment on |
|---|---|---|
| Common anode | The positive side is shared. | A segment lights when its control path goes low through the proper current path. |
| Common cathode | The negative side is shared. | A segment lights when its control path is driven high through the proper current path. |
That is enough for the first lesson. The teacher's job is not to turn the article into a driver-design manual. The job is to help students recognize that display behavior depends on wiring polarity.
How to teach the first digit pattern
- Place the display on a solderless breadboard so the pins are easy to trace.
- Identify whether the part is common anode or common cathode before applying power.
- Add current-limiting resistors because each segment is still an LED.
- Light the segments needed for 8 first, then turn off one segment at a time to show how the number changes.
- Connect the idea to future digital-output lessons, such as timers, counters, or robotics indicators.
That sequence is usually more effective than beginning with pinout memorization. Students first need the visible cause-and-effect relationship between segment states and digit output.
Where 7-segment displays fit in the learning sequence
A 7-segment display works best after students know breadboards and LEDs and before they jump into more advanced digital systems. It gives a visible output device for lessons that later connect to timing and pulse-generation resources such as Mr Circuit's 555 timer guide. It also fits naturally into the bigger roadmap of circuits students should understand before robotics.
If the goal is a formal digital-electronics unit, the Mr Circuit Digital Lab 15 kit is an optional product-adjacent next step because display outputs make the rest of the unit easier to visualize.
Common beginner mistakes
- Assuming the whole part is one LED instead of seven separate segments.
- Forgetting current-limiting resistors.
- Mixing up common anode and common cathode wiring.
- Trying to memorize the full pinout before understanding the display concept.
- Skipping polarity checks and wondering why a segment pattern does not light correctly.
FAQ
Why are there seven segments instead of eight?
Seven bars are enough to form the ten numeric digits in a compact, easy-to-drive pattern. Some displays add a separate decimal point, but that dot is usually treated as an extra feature rather than one of the seven main segments.
Is a 7-segment display good for beginners?
Yes. It is one of the best visual digital-electronics parts because students can see how signals become output immediately.
Do seven-segment displays need resistors?
Yes. Each lit segment is still an LED, so the circuit needs current limiting.
What should students learn before this topic?
Students should know basic breadboard use, polarity, and simple LED behavior. After that, the display becomes a strong bridge into logic and timing topics.
Sources and citations
- Broadcom, HDSP-521A/523A general-purpose seven-segment display datasheet.
- Broadcom, 14.2-mm (0.56-in.) seven-segment display family datasheet.
- Kingbright, SA52-11EWA single-digit numeric display datasheet.
