A series circuit gives current one path through every component, while a parallel circuit splits the path into branches. For students, the difference becomes clear fast: series means one shared loop, and parallel means each branch connects across the source on its own path.
Last updated: June 6, 2026.
This is one of the best early circuit lessons because students can predict what will happen before they build. If a second bulb is added in series, what changes? If the bulbs are moved into parallel branches, what changes then? A one-period lesson works well because the contrast is visible, testable, and easy to discuss without starting with formulas.

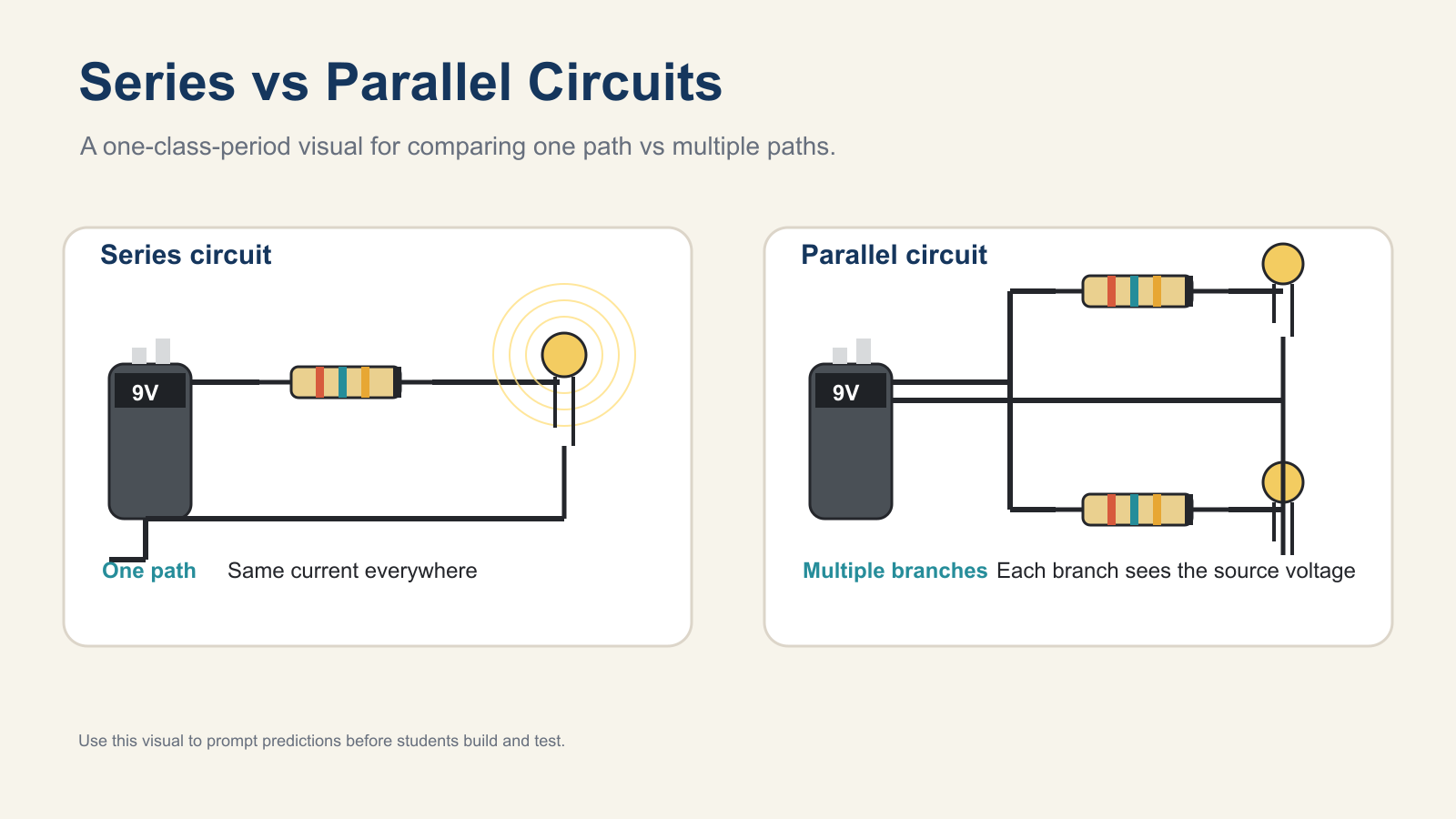

Series vs parallel circuits at a glance
Khan Academy explains the big structural difference simply: series circuits keep components on one continuous path, while parallel circuits create more than one branch. The Physics Classroom adds the two beginner rules teachers need most: current is the same through a series path, and each parallel branch sees the source voltage.
| Feature | Series circuit | Parallel circuit |
|---|---|---|
| Path for current | One path through every component | Multiple branches |
| What students notice first | One component affects the whole loop | Each branch behaves more independently |
| Useful first question | What happens if we add one more part in the same loop? | What happens if we create a second path? |
| Best classroom takeaway | Every part shares one circuit path | Each branch connects across the source |
What to say before students build
Keep the first definition concrete. A series circuit is a single route. A parallel circuit is a circuit with branches. Do not start with equivalent resistance unless the class is already ready for analysis. Start with what students can observe.
For beginner groups, I would phrase it this way:
- Series: every charge has the same road to follow.
- Parallel: charges have more than one road to choose from.
That language is simple enough for middle school and still accurate enough to support later work in current, voltage, and resistance.
One class period lesson plan
| Time | Teacher move | Student task |
|---|---|---|
| 5 minutes | Show one series example and one parallel example | Predict what changes between them |
| 10 minutes | Define one path vs branches | Sketch both layouts |
| 15 minutes | Guide the build on a breadboard | Build and test both circuits |
| 10 minutes | Lead comparison discussion | Record observations |
| 5 minutes | Exit question | Explain which setup has branches and why |
The Mr Circuit Lab 1 Basic Electronics STEM Kit is a relevant internal example here because its lessons are already structured around short beginner builds on a solderless breadboard. The product page says many lessons fit inside a 45-55 minute period, which matches the pacing this article recommends.
A simple build routine
- Build a small series circuit first with a battery, resistor, and two outputs on one loop.
- Ask students whether every component is sharing one path.
- Rebuild the same idea so the outputs sit on separate branches across the source.
- Ask students what changed in the layout before asking what changed in the behavior.
- Have them explain the difference in one sentence using the words path and branch.
This order matters. Layout comes before vocabulary. Vocabulary comes before equations.
What students usually get wrong
1. Calling every two-part circuit “series”
Students often label a circuit by how it looks on the page instead of by how it is connected. The test is not whether the drawing is stretched horizontally or vertically. The test is whether there is only one route or more than one branch.
2. Thinking parallel means “side by side” only
Parallel is about shared connection points across the source, not just visual spacing. Two branches can look different and still be parallel if they connect across the same two nodes.
3. Jumping to formulas before understanding structure
A strong follow-up lesson is Ohm's Law in One Class Period, but that works better after students can identify the structure of the circuit first.
Prediction questions that improve the lesson
Before students touch the wires, ask:
- If one part is removed from the series circuit, what happens to the whole loop?
- If one branch is changed in the parallel circuit, does the other branch still exist?
- Which design gives current only one route?
- Which design creates choices for the charge?
These questions slow students down just enough to build a model instead of copying a diagram mechanically.
How this fits a larger STEM sequence
Series and parallel circuits should not live as an isolated vocabulary lesson. They connect naturally to voltage, current, and resistance. Once students can identify one path versus branches, they are much more prepared for measurement, troubleshooting, and robotics electronics.
For full-program planning, the For Schools and Educators page is the best internal link because it shows how a single lesson can fit into a larger classroom-ready sequence instead of becoming a one-off activity.
Frequently Asked Questions
What is the main difference between series and parallel circuits?
A series circuit has one path through every component, while a parallel circuit has multiple branches.
Is current the same in a series circuit?
Yes. In a simple series path, the same current passes through each component in that loop.
What stays the same in a parallel circuit?
Each branch is connected across the source, so each branch sees the source voltage.
Which circuit type is easier for a first classroom comparison?
Both together are best, because students understand each type faster when they compare one path and multiple branches side by side.
Can this lesson fit in one class period?
Yes. A focused prediction-build-observation lesson can fit inside a standard 45-55 minute class period.
