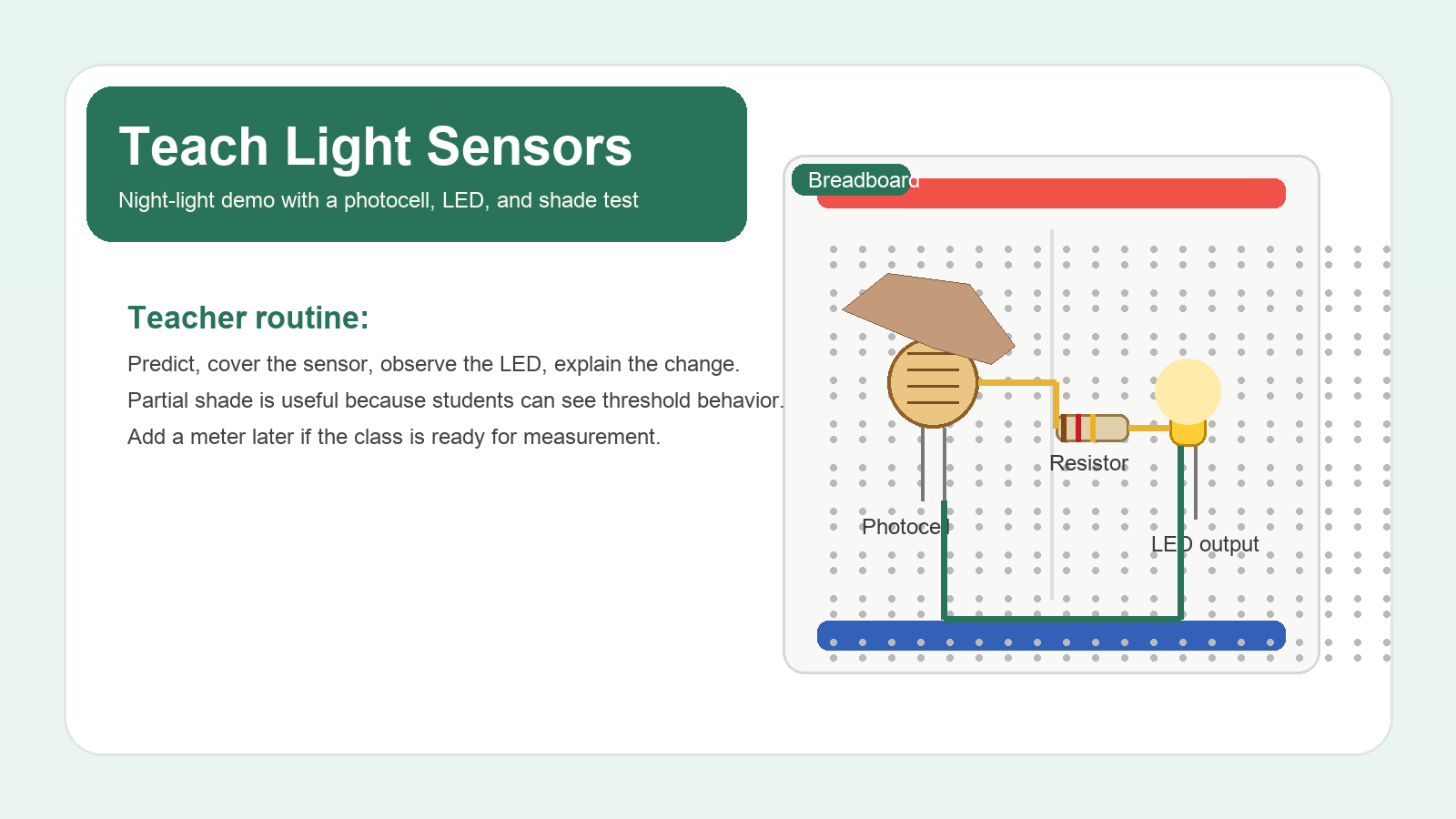

The simplest way to teach light sensors is with a night-light demo that uses a photocell as the input and an LED as the output. As students cover or uncover the sensor, they can watch the circuit respond in real time and connect light level, resistance, and output behavior.
Last updated: July 2, 2026.
Why this demo works so well in class
Light sensors can feel abstract when students only hear the word sensor. A night-light demo fixes that quickly because the input is visible and the output is visible. When the room gets darker or a hand covers the sensor, the circuit changes in front of them.
This makes the lesson a strong follow-up to what a sensor is. It also gives students a simple example of how an input can control an output without needing a long lecture first.
What a photocell is doing
The key idea is that a photocell, also called a photoresistor, changes resistance when the light around it changes. The SparkFun Photocell Hookup Guide explains that behavior clearly and shows why these parts are usually placed in a voltage-divider style circuit.
For students, the plain-language version is enough: more or less light changes the sensor's electrical behavior, and the circuit responds to that change. You do not need to start with formulas to make the concept meaningful.
Why the night-light format is better than a random sensor demo
A night-light has an obvious purpose. In bright conditions, the light stays off. In dark conditions, it turns on. That direct cause-and-effect is easier to understand than a sensor that only produces a number on a screen.
The SparkFun Tinker Kit photoresistor circuit uses this same kind of logic, and the recent TeachEngineering night-light maker challenge shows that the concept still fits current classroom STEM work.
Simple setup for a classroom demo
| Part | Role in the demo |
|---|---|
| Photocell | Senses the light level |
| LED and resistor | Show the output clearly |
| Battery pack or low-voltage board | Provide safe power |
| Breadboard and jumpers | Make the circuit easy to adjust |
| Optional meter | Measure how the signal changes |
Bright room versus dark room observations
| Condition | What students usually observe |
|---|---|
| Bright light on the sensor | The circuit reads a different sensor value and the LED may dim or stay off |
| Hand covering the sensor | The sensor response shifts and the LED turns on or brightens |
| Partial shade | The output may hover near the threshold and become less stable |
A teaching routine that keeps students thinking
- Show the circuit without touching it and ask students what they think the sensor does.
- Have them predict what will happen when the sensor is covered.
- Cover the photocell slowly and let students watch the LED response.
- Ask what changed first: the light in the room, the sensor behavior, or the LED output.
- Repeat the demo with different amounts of shade so students can notice thresholds and partial responses.
This structure pairs well with prediction before measurement thinking, even if you do not use a meter until the second half of the lesson.
Where measurement can help
If students are ready, bring in a meter after the visual demo. That is when the lesson can connect to digital multimeter use. They can see that the circuit is not magically deciding to turn the LED on. The electrical conditions are actually changing.
The SparkFun SIK photoresistor experiment is useful here because it reinforces the idea that the sensor is typically part of a divider, not a standalone magic part.
What students are really learning
The visible lesson is a night-light. The deeper lesson is systems thinking. Students see that one component reacts to the environment, another part interprets that change, and an output device responds. That is a simple but powerful path into robotics and automation.
If you want to connect the activity to bigger ideas, link it to the circuits students should understand before robotics and the existing simple night-light circuit guide.
Common student mistakes
- Assuming the sensor creates light instead of affecting the signal.
- Thinking the circuit is broken when the room is too bright to show a dramatic change.
- Covering the wrong part of the circuit instead of the photocell itself.
- Expecting a cheap photocell to act like a precise light meter.
- Skipping the prediction step and turning the lesson into passive watching.
LED choice matters more than some teachers expect
If the output is hard to see, the lesson feels weaker than it really is. The Adafruit LED guide is helpful because it explains that diffused indicator LEDs are often easier to view from different angles than ultra-bright focused LEDs.
For a demo, a clearly visible but not blinding LED is usually better than the brightest part you can find.
How to keep the lesson honest and useful
This is a beginner-friendly light sensor demonstration, not a calibrated lux-measurement lab. That distinction matters. The goal is to help students connect changing conditions to changing electrical behavior. Precision can come later.
For planning a larger unit around classroom electronics, the For Schools and Educators page is the best next resource because it fits the broader program setup better than forcing a product mention into the lesson.
FAQ
What is the easiest way to explain a light sensor to students?
Tell them it is a part that changes the electrical signal when the amount of light changes around it.
Why use a night-light demo instead of a more advanced sensor project?
The night-light format gives immediate visible feedback, which makes the input-output relationship easier for beginners to understand.
Do students need coding for this lesson?
No. A simple breadboard demo can teach the concept before any coding is introduced.
Why does the LED sometimes flicker during partial shade?
The circuit may be near its switching threshold, so small changes in light can make the output switch back and forth.
Can this lesson connect to robotics later?
Yes. It is a strong early example of how sensors give robots information about the world around them.
