To read a circuit schematic for the first time, start by identifying the symbols, the power source, and the ground points, then trace each connection one net at a time. A schematic is not a picture of where parts sit on the table. It is a map showing which parts connect and what each part does.
Last updated: June 22, 2026.
What a Schematic Is and What It Is Not
A schematic is a standardized drawing of electrical connections. As DigiKey explains, schematics are roadmaps that show the components, labels, and electrical connections of a circuit in a format other people can troubleshoot and reuse.
That means a schematic is not a physical layout. A resistor may appear on the left side of the page while the real resistor sits near the middle of the breadboard. A battery symbol may be drawn above an LED even though the actual battery pack sits off to the side. The drawing is about relationships, not location.
Start With the Three Big Questions
Before a student worries about every symbol, they should ask:
- Where does power enter the circuit?
- Where is ground or the shared return point?
- Which components sit between those two points?
Those three questions do more to calm beginner confusion than memorizing every symbol at once. They also connect well to published Mr Circuit explainers on voltage, current, and resistance.
Learn the Main Symbol Families First
| Symbol family | What students should ask | Beginner example |
|---|---|---|
| Power and ground | Where does the circuit start and return? | Battery, 5V, GND |
| Passive parts | What limits, stores, or shapes the signal? | Resistor, capacitor |
| Outputs | What visible or audible result does the circuit create? | LED, speaker |
| Inputs and control | What changes the circuit behavior? | Switch, sensor, potentiometer |
| Active parts | What controls a larger signal or combines many jobs? | Transistor, integrated circuit |
DigiKey's symbol guide points out that beginners should learn the common component symbols first and recognize that both ANSI and IEC symbol versions may appear. That is useful because two correct schematics can look slightly different and still mean the same thing.
Reference Letters Make the Drawing Easier to Read
SparkFun's schematic tutorial explains that components usually carry reference letters. A resistor may be labeled R1, a capacitor C1, a diode D1, and an integrated circuit U1. These labels help readers talk about one exact part when building, debugging, or teaching.
Students do not need to memorize every letter on day one, but they should recognize the common ones because those labels often appear in instructions, parts lists, and troubleshooting notes.
Nets, Nodes, and Junctions Are the Real Reading Skill
Once the symbols are identified, the next step is following the nets, the drawn lines that show electrical connections. SparkFun describes nets as the lines between component terminals, and junction dots as the marks that show a connection when wires split or meet.
This is where many beginners get stuck. They see lines crossing and assume every crossing is a connection. It is not. A real connection usually has a junction dot. If two lines cross without that dot, they are often just passing over each other.
Voltage Labels and Ground Symbols Save Space
Busy schematics do not always draw every connection all the way across the page. Instead, they use voltage labels such as 5V, 3.3V, or GND. SparkFun notes that like-named voltage nodes connect to each other even if there is no drawn wire between them.
That is one reason a beginner schematic can look strange at first. The page is using shorthand. Once students understand that every GND symbol belongs to the same shared node, the drawing becomes much easier to follow.
A Good First Example: Battery, Resistor, and LED
The best first schematic is still a simple LED loop. Students can identify the battery, then the resistor, then the LED, then the return path to ground or the battery negative terminal. That teaches a complete reading pattern without adding too many symbols at once.
After that, the same routine works again on more complex circuits: find the source, find the return, identify the parts, and follow the path.

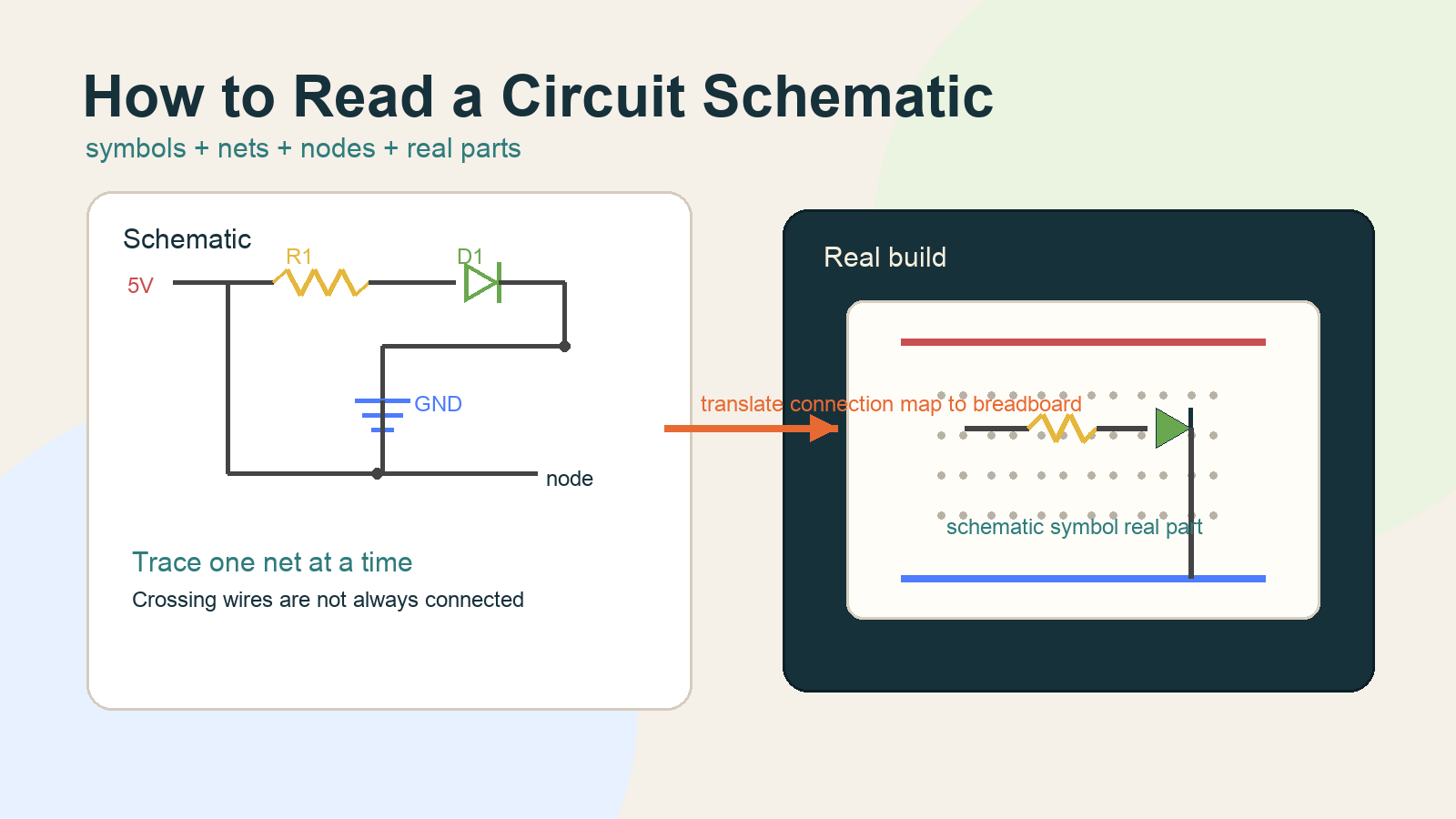

How to Move From Schematic to Breadboard
- Circle the power source and ground on the schematic.
- List the parts you need by symbol and label.
- Mark which pins or leads must connect together.
- Place the power rails on the breadboard first.
- Add one part at a time and check each connection before moving on.
This is where readers should pair the article with what a solderless breadboard is. Schematics show logical connections. Breadboards show physical placement. Students need both views at once to build confidently.
Common First-Time Mistakes
- Treating the schematic like a physical layout drawing.
- Missing the fact that like-named GND or voltage symbols connect together.
- Assuming every crossed wire is connected.
- Ignoring polarity on LEDs, diodes, or electrolytic capacitors.
- Trying to build the whole circuit at once instead of one section at a time.
Those errors are exactly why schematic reading belongs beside troubleshooting. Reading and debugging are not separate skills. They strengthen each other.
A Teacher-Friendly Practice Routine
If you are teaching beginners, use three rounds:
- Round 1: identify symbols only
- Round 2: trace connections and label power/ground
- Round 3: translate the drawing to a real breadboard build
That sequence prevents students from trying to decode everything at the same time. It also gives non-expert teachers a repeatable way to slow the lesson down without making it feel remedial.
Where This Fits in the Mr Circuit Sequence
A first schematic-reading lesson fits naturally before or alongside a beginner kit such as the Mr Circuit Lab 1 Basic Electronics STEM Kit. Students can compare the drawing to the actual breadboard, identify the resistor and LED by name, and learn that schematic literacy is just another way of organizing what they already see.
For larger implementation planning, the For Schools and Educators page is the better internal destination.
Sources and Further Reading
- SparkFun Learn: How to Read a Schematic
- DigiKey: How to Read a Schematic
- DigiKey: What Are Schematic Symbols?
FAQ
What is a circuit schematic in one sentence?
A circuit schematic is a standardized drawing that shows what components connect together in an electrical circuit.
Do schematic symbols always look exactly the same?
No. ANSI and IEC versions may differ slightly, but they represent the same part roles.
Why do some schematic wires not connect even when they cross?
Because a crossing only counts as a connection when the drawing marks a junction or node.
Why do so many parts have labels like R1 and C1?
Those are reference designators that help readers identify one exact part in the circuit and parts list.
What is the best first schematic to teach?
A simple battery, resistor, and LED circuit is still the best first example because students can trace one clear path from source to output and back.
