An intro electronics unit for CTE should end with students building, measuring, troubleshooting, and explaining a working low-voltage circuit. The best first unit does not rush straight into parts. It creates a routine for safety, vocabulary, breadboard use, measurement, documentation, and design revision.
Start with the outcome
A practical first CTE electronics unit should answer one question: can students use the lab safely and explain what happened in a simple circuit? If the answer is yes, the unit has done its job. Students do not need to master every component in the first few weeks. They need a foundation they can reuse in later robotics, automation, aviation, automotive, HVAC, and manufacturing lessons.
Current CTE materials support this sequence. Utah's introductory electronics standards describe an entry-level high school course where students assemble components and operate electronic equipment. New York's electricity/electronics foundation course includes electronics systems, passive and active devices, circuit applications, lab experimentation, integrated circuits, and career exploration. The CTE Resource Center describes Electronics Systems I as a course where students explore electricity principles, apply math and science, conduct experiments, solve problems, and build DC circuit projects.
A simple four-part unit structure
| Unit part | Teacher goal | Student evidence |
|---|---|---|
| Safety and lab habits | Set expectations for low-voltage work, eye protection, parts handling, and cleanup | Students follow setup/reset routines and identify unsafe choices |
| Vocabulary and components | Connect words to real parts and circuit behavior | Students identify common parts and explain their role |
| Build and measure | Teach breadboard rows, polarity, resistance, voltage, continuity, and meter use | Students build an LED circuit and record measurements |
| Troubleshoot and explain | Make debugging a normal engineering behavior | Students fix a fault and explain the evidence they used |
Week-by-week example
Week 1: Lab routines and first circuit. Introduce low-voltage safety, component trays, battery handling, breadboard orientation, and the idea of a complete circuit. Students build a single LED and resistor circuit. Keep the build simple enough that every student can see a result.
Week 2: Measurement and notebooks. Students use a digital multimeter to measure battery voltage, check continuity, and compare resistor values. They record predictions, readings, observations, and conclusions in a notebook. This is where the class learns that measurement is evidence, not a formality.
Week 3: Inputs, outputs, and control. Add switches, potentiometers, photocells, buzzers, or a second LED. Students see that electronics systems often include an input, a process or control element, and an output. Keep code optional unless the course is explicitly robotics or microcontroller-based.
Week 4: Troubleshooting challenge. Give students a circuit with one planned fault: reversed LED, missing jumper, wrong row, dead battery, incorrect resistor, or open switch path. Students must find the fault using inspection, schematic comparison, continuity checks, and voltage measurements.

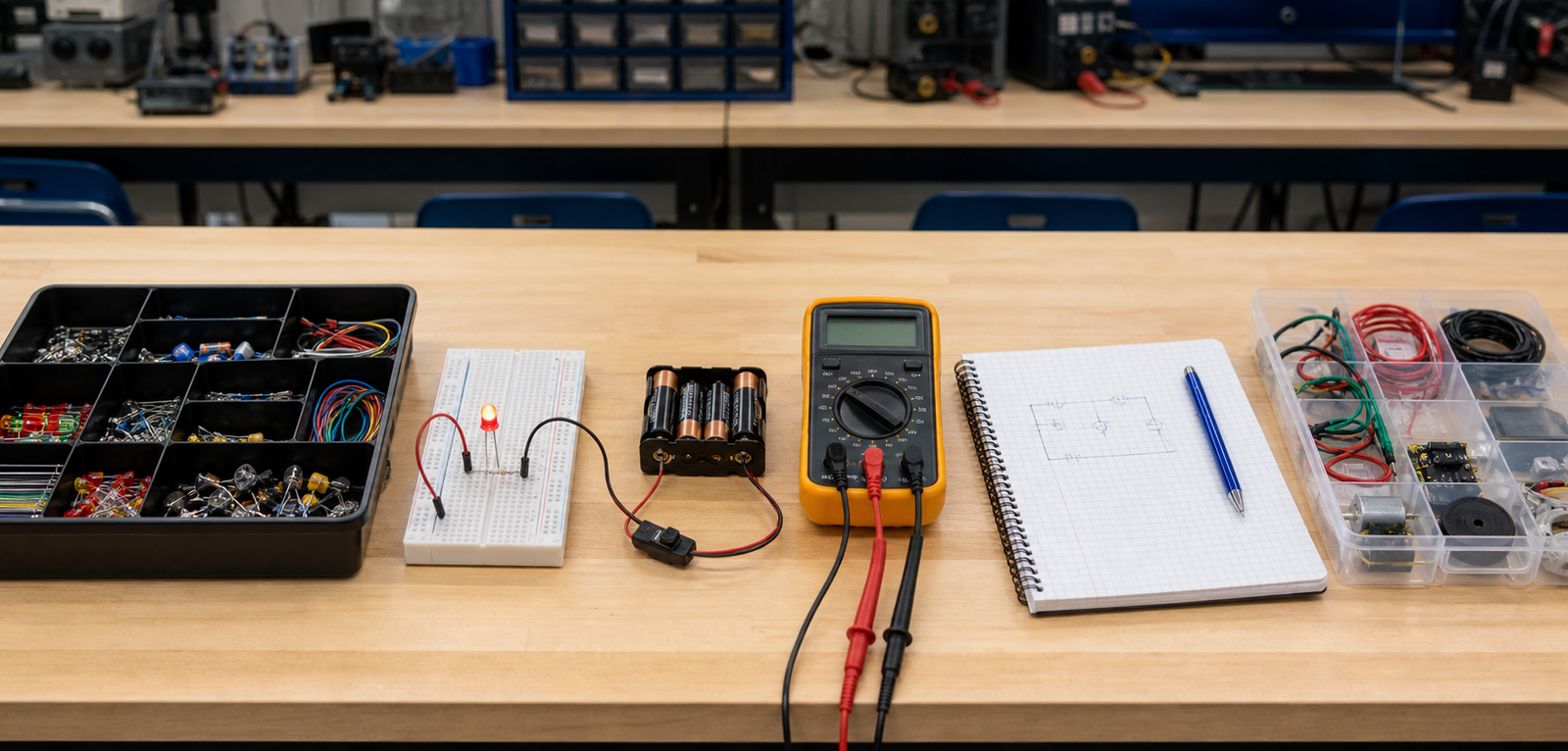

What to include in the first kit
- Solderless breadboard
- Battery pack or classroom-safe low-voltage supply
- LEDs and current-limiting resistors
- Jumper wires and switches
- A few sensors or variable controls, such as a photocell or potentiometer
- Digital multimeter
- Component organizer and reset checklist
- Student notebook or lab sheet
Common mistakes to avoid
- Starting with too many components before students understand the breadboard.
- Using schematics only as answer keys instead of build maps.
- Skipping measurement because the circuit visually works.
- Treating troubleshooting as failure instead of a normal CTE skill.
- Assessing only whether the LED turns on, not whether the student can explain why.
Assessment checklist
Use a simple rubric: safe setup, correct wiring, correct component orientation, working output, recorded measurements, troubleshooting evidence, cleanup/reset, and clear explanation. A student who fixes a fault with good evidence should receive credit for the reasoning even if the first build did not work immediately.
Helpful next links
Pair this unit with Mr Circuit guides on electronics lab safety, breadboard basics, multimeter teaching, and student troubleshooting.
Sources
- Utah CTE Electronics, Introduction standards
- New York electricity/electronics foundation course
- CTE Resource Center Electronics Systems I
- Massachusetts DESE Electronics Engineering Technology framework
- OSHA eye and face protection guidance
FAQ
How long should an intro electronics unit be?
A useful first unit can run two to four weeks for a survey class or nine weeks for a deeper technology education module.
What should students build first?
Start with a low-voltage LED and resistor circuit on a solderless breadboard because it shows polarity, resistance, continuity, and troubleshooting quickly.
Should CTE students learn schematics before breadboards?
Introduce simple symbols early, but let students move between a schematic and a real breadboard so the drawing does not feel abstract.
What tools are needed for an intro electronics unit?
For low-voltage beginner work, useful tools include breadboards, LEDs, resistors, switches, battery packs, jumper wires, component trays, notebooks, and digital multimeters.
How should the unit be assessed?
Assess safety habits, build function, measurement evidence, troubleshooting process, notebook quality, and the student's oral or written explanation.
