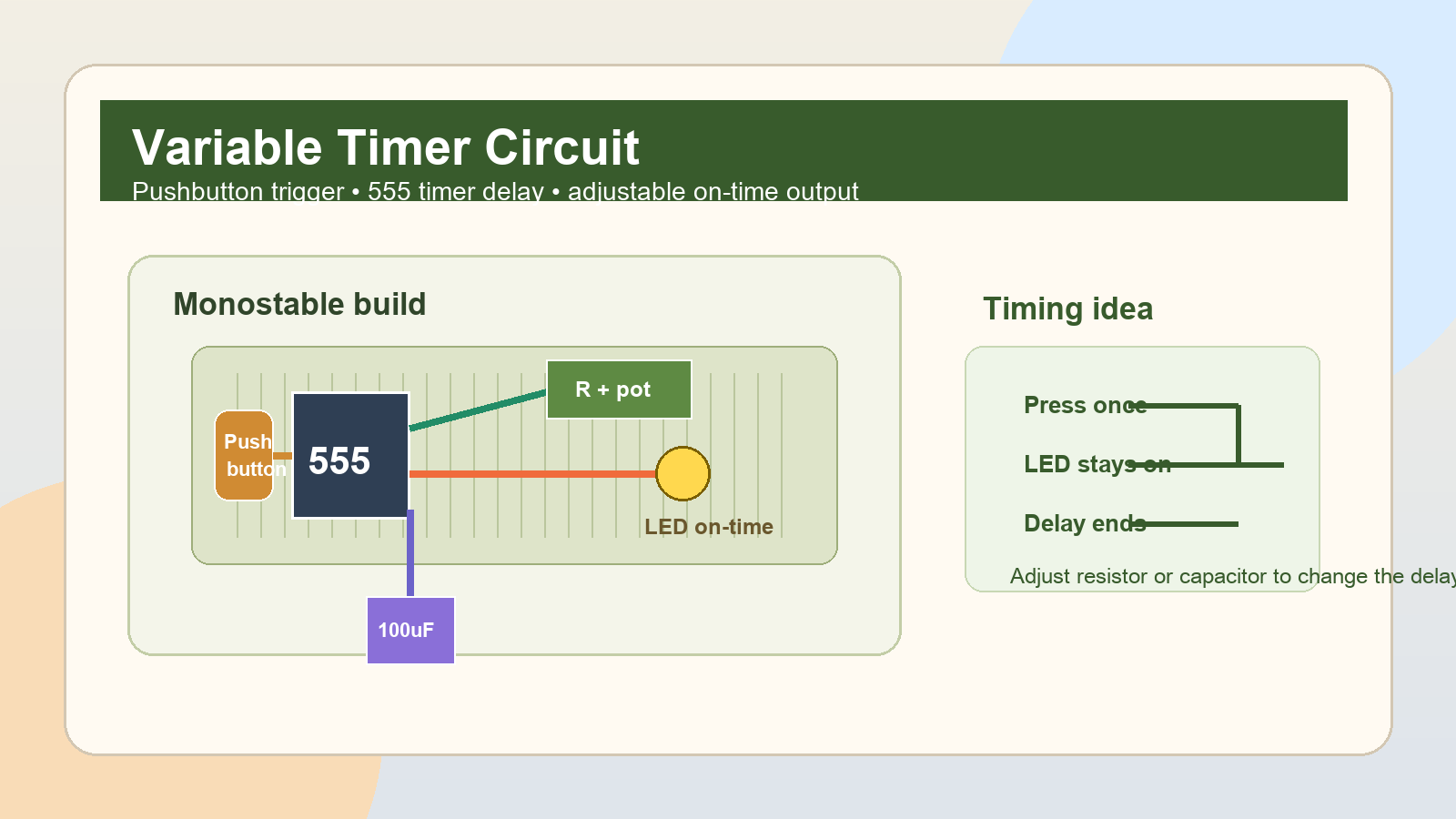

A variable timer circuit uses a 555 timer in monostable mode so one button press creates one adjustable output pulse. In a beginner build, that pulse can hold an LED on for a short delay, which helps students see the difference between a one-shot timer and a repeating oscillator.
Last updated: June 30, 2026.
Why this project matters
Students often think every timer circuit must blink forever. A variable timer helps fix that misconception because it shows that some timing circuits run only once after a trigger. That is the core value of a monostable build.
The Texas Instruments NE555 product page still lists monostable operation as a standard use case. That is why the chip remains such a strong teaching part. It supports both repeated timing and one-shot timing without changing platforms.
What monostable means in classroom language
Monostable means the circuit has one stable resting state and one temporary timed state. In practice:
- The circuit waits quietly.
- A button press triggers the timer.
- The output turns on for a set amount of time.
- The circuit returns to rest.
Electronics-Tutorials explains the classic timing relationship for this style of 555 circuit. For students, the important idea is simpler: the resistor and capacitor decide how long the output stays on.
Parts list for a beginner variable timer
| Part | Role in the build |
|---|---|
| NE555 timer IC | Creates the timed one-shot output |
| Pushbutton | Triggers the timer |
| 10k resistor | Supports the trigger and timing network |
| 100k potentiometer | Lets students adjust the delay |
| 100uF capacitor | Provides a delay long enough to observe clearly |
| LED plus 330 ohm resistor | Shows how long the output stays high |
| 5V to 9V battery pack | Powers the circuit safely |
| Breadboard and jumper wires | Support easy classroom changes |
How to build it
- Place the 555 timer across the center gap of the breadboard.
- Wire power and ground before adding the trigger and output sections.
- Add the pushbutton so one press produces a clean trigger event.
- Connect the fixed resistor, potentiometer, and capacitor in the timing network.
- Wire the LED and resistor to the output so students can see the timed interval.
- Power the circuit and press the button once to test the delay.
- Adjust the potentiometer and repeat the test to compare longer and shorter output times.
The SparkFun Red Hat guide is useful here because it reinforces the practical breadboard style of 555 timing builds. This project changes the goal from continuous sound to a single timed event.
How to explain the timing change
A classic classroom explanation is that a bigger timing capacitor or more timing resistance means a longer delay. Students do not need to memorize the equation on the first day, but they should know that RC values control the output duration.
Once they understand the behavior, you can introduce the familiar monostable rule of thumb: the timed interval is approximately 1.1 x R x C. That gives a useful connection between prediction and measurement without turning the lesson into pure math.
What students should test
| Test | What they should notice |
|---|---|
| Shorter resistance setting | The LED turns off sooner |
| Longer resistance setting | The LED stays on longer |
| Second button press after reset | The circuit repeats the same one-shot behavior |
This is also a strong place to compare the project with the broader 555 timer explainer. Students should leave understanding that astable means repeating while monostable means one timed pulse.
How to turn the build into a measurement lesson
Once the circuit works, do not stop at "it stayed on longer." Have students time the LED with a stopwatch or phone timer and record the result for three potentiometer positions. Then ask which setting produced the longest delay and whether the result matched their prediction. That moves the lesson from guessing to evidence.
This extension also connects naturally to measurement routines. Students start to see that timer circuits are not magic boxes. They are systems whose behavior can be observed, adjusted, and compared.
Common mistakes in a first timer build
- Expecting the LED to blink forever instead of turn on once per trigger.
- Choosing a capacitor value that makes the delay too short to observe.
- Miswiring the pushbutton so the trigger never changes state.
- Adjusting the potentiometer without resetting and retesting the timing.
- Rewiring the circuit while power is still connected.
A clean troubleshooting path is to verify the button, verify the LED path, then verify the timing network. If the LED never turns on, check the trigger path first. If it turns on but never changes duration, check the resistor-potentiometer-capacitor section.
How this fits into the Mr Circuit sequence
This build naturally follows work on open and closed circuits, continuity testing, and basic measurement. It also supports the next stage of timing and logic work in the Mr Circuit Lab 5 Digital Electronics STEM Kit.
For schools building a structured sequence, the For Schools and Educators page is the right planning follow-up.
FAQ
What is a variable timer circuit?
It is a circuit that produces a timed output interval, and the length of that interval can be adjusted by changing the RC timing values.
What does monostable mean?
It means the timer creates one temporary output pulse after a trigger, then returns to its resting state.
How do I make the delay longer?
Increase the timing resistance, increase the capacitor value, or both.
Why use an LED output first?
An LED makes the timing interval easy to observe before students move to buzzers, relays, or other outputs.
How is this different from the metronome or audio generator?
This timer runs once per trigger, while the metronome and audio generator repeat continuously in astable mode.
