A light sensor in a robot detects how bright or dark something is and turns that change into a signal the robot can use. The robot does not see the world the way a person does. It measures reflected light, ambient light, or contrast, then uses a rule to decide what to do next.
Last updated: June 29, 2026.

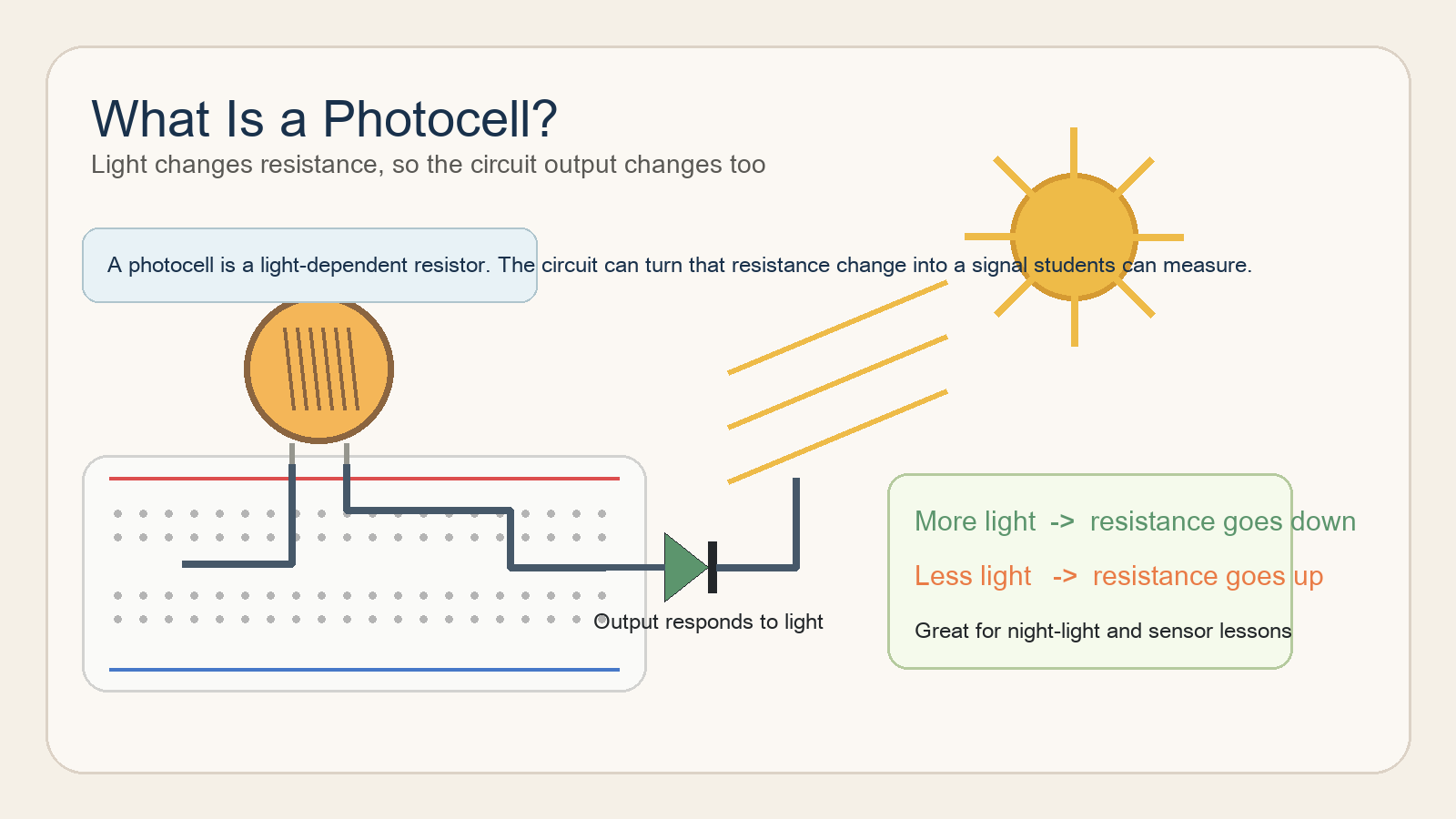

This is one of the best beginner robotics topics because students can watch the behavior directly. A robot can follow a dark line, stop when a bright marker appears, or react when a hand blocks light. SparkFun and Adafruit both explain that photocells change resistance as light changes, while REV Robotics shows how classroom robots use color and light sensors for decision making. That makes light sensing a natural bridge between simple circuits and autonomous robotics.
What the sensor is actually measuring
In many beginner activities, a light sensor is not identifying an object in a human way. It is measuring one of these things:
- How much ambient light is present
- How much light reflects off a surface
- The contrast between a dark area and a bright area
- In some classroom sensors, the color or intensity of reflected light
That distinction matters. Students often say the robot "sees the line." A more accurate explanation is that the sensor reports a difference in light level or reflectivity, and the robot follows a rule based on that difference.
How the signal becomes useful
| Stage | What happens | Example |
|---|---|---|
| Sensing | The sensor measures light or reflected light | Dark tape reflects less light than a white floor |
| Processing | The robot compares the reading to a threshold or target range | If reflection drops below a set value, the robot knows it drifted onto the line |
| Output | The program changes the robot's behavior | One motor slows down so the robot turns back toward the line |
Example 1: line following
Line following is usually the clearest classroom example. The light sensor points down at the floor. A dark line reflects less light than the lighter background. The sensor reading changes, and the robot uses that change to steer.
- If the sensor sees more white than expected, the robot may have drifted off the line.
- If the sensor sees the darker target, the robot adjusts to stay on course.
Students do not need advanced programming to understand this. They need the if-then relationship and a chance to compare predictions with the actual behavior.
Example 2: a light-triggered reaction robot
A second beginner example uses ambient light rather than floor contrast. If the room gets darker, the robot might turn on an LED or start moving. If a flashlight shines on the sensor, the robot might stop or change modes. This works well because it connects directly to simpler sensor circuits such as a night-light or photocell demo.
That is why What Is a Photocell? and How to Build a Simple Night-Light Circuit are strong support articles for this topic.
Why calibration matters
One common student frustration is that the sensor "worked yesterday" but not today. Often the robot is fine. The environment changed.
- The floor color changed.
- Room lighting became brighter or dimmer.
- The sensor moved farther from the surface.
- The threshold in the program no longer matches the real readings.
This is an excellent teaching opportunity. Students learn that sensors are not magic truth machines. They produce data that must be interpreted in context.
Common student mistakes
- Assuming the sensor knows what an object is instead of measuring light.
- Forgetting that different surfaces reflect light differently.
- Blaming the code when the sensor angle or distance changed.
- Skipping calibration before testing.
- Confusing a photocell, which changes resistance, with every other kind of classroom light sensor.
A simple classroom routine
- Show students the sensor and ask what it can actually measure.
- Test readings over a dark surface and a light surface.
- Choose a threshold based on the measured difference.
- Write one if-then rule the class can say out loud.
- Run the robot and compare the result to the prediction.
- Adjust sensor position or thresholds if the behavior is inconsistent.
This keeps the lesson grounded in evidence instead of trial-and-error guessing.
Where Mr Circuit fits naturally
This article sits in a good middle position in the site's learning path. Students may first need What Is a Sensor? Simple Examples for STEM Students and What Is Resistance?. After that, teachers can move into How Robots Use Sensors to Make Decisions or bigger robotics planning from the For Schools and Educators page.
Frequently Asked Questions
Does a light sensor let a robot see?
Not in a human sense. It measures light intensity or reflectivity and sends that reading to the robot.
Why do line-following robots use light sensors?
Because dark and light surfaces reflect different amounts of light, which gives the robot a measurable contrast to follow.
Why does a light-sensor robot need calibration?
Because room lighting, surface color, and sensor position can all change the readings.
Is a photocell the same as every classroom light sensor?
No. A photocell is one kind of light-sensitive component. Some robotics platforms use reflected-light or color sensors with different behavior.
What is the best first activity for this topic?
A simple line-following demo or a light-triggered robot response works well because students can observe the full sensing loop directly.
