Robots use sensors to gather information, compare that information to a rule or a program, and then change what they do next. In a beginner classroom example, that might mean following a dark line, stopping before a wall, or turning on a light when the room gets darker. The important idea is that the robot is not guessing. It is reacting to inputs.
Last updated: June 9, 2026
That distinction matters because students often think a robot "knows" what to do in a human way. A better beginner explanation is that a robot senses something, checks a condition, and performs an action. Once students understand that cycle, robotics becomes much easier to teach.
What a sensor does in a robot
REV Robotics describes sensors as tools that provide information about the robot or its surroundings. WPILib takes a similar approach by treating sensors as hardware that reports useful state information. For students, the simplest translation is this: a sensor helps the robot notice something it could not otherwise notice on its own.
| Sensor type | What the robot learns | Possible decision |
|---|---|---|
| Touch sensor | Something was pressed or hit | Stop, reverse, or count a contact |
| Distance sensor | How close an object is | Slow down, stop, or turn away |
| Color or light sensor | What color or brightness is present | Follow a line or react to light changes |
| Encoder | How far a wheel or motor moved | Drive a set distance or correct motion |
If that sounds familiar, it should. The same logic appears in very simple electronics. A basic light-sensitive circuit changes behavior when light changes. The article What Is a Sensor? Simple Examples for STEM Students is a useful first step if students still need the basic definition.
The simplest way to explain robot decision making
A beginner robot lesson works best when you teach the cycle directly instead of jumping to complicated code:
- The robot senses something.
- The control system compares that input to a rule.
- The robot chooses an action.
- The robot checks again.
That loop is what makes robotics feel alive to students. The robot notices, responds, and keeps updating. TeachEngineering's robotics decision-making activity is especially helpful here because it treats the robot's behavior as a set of observable choices rather than as hidden magic.

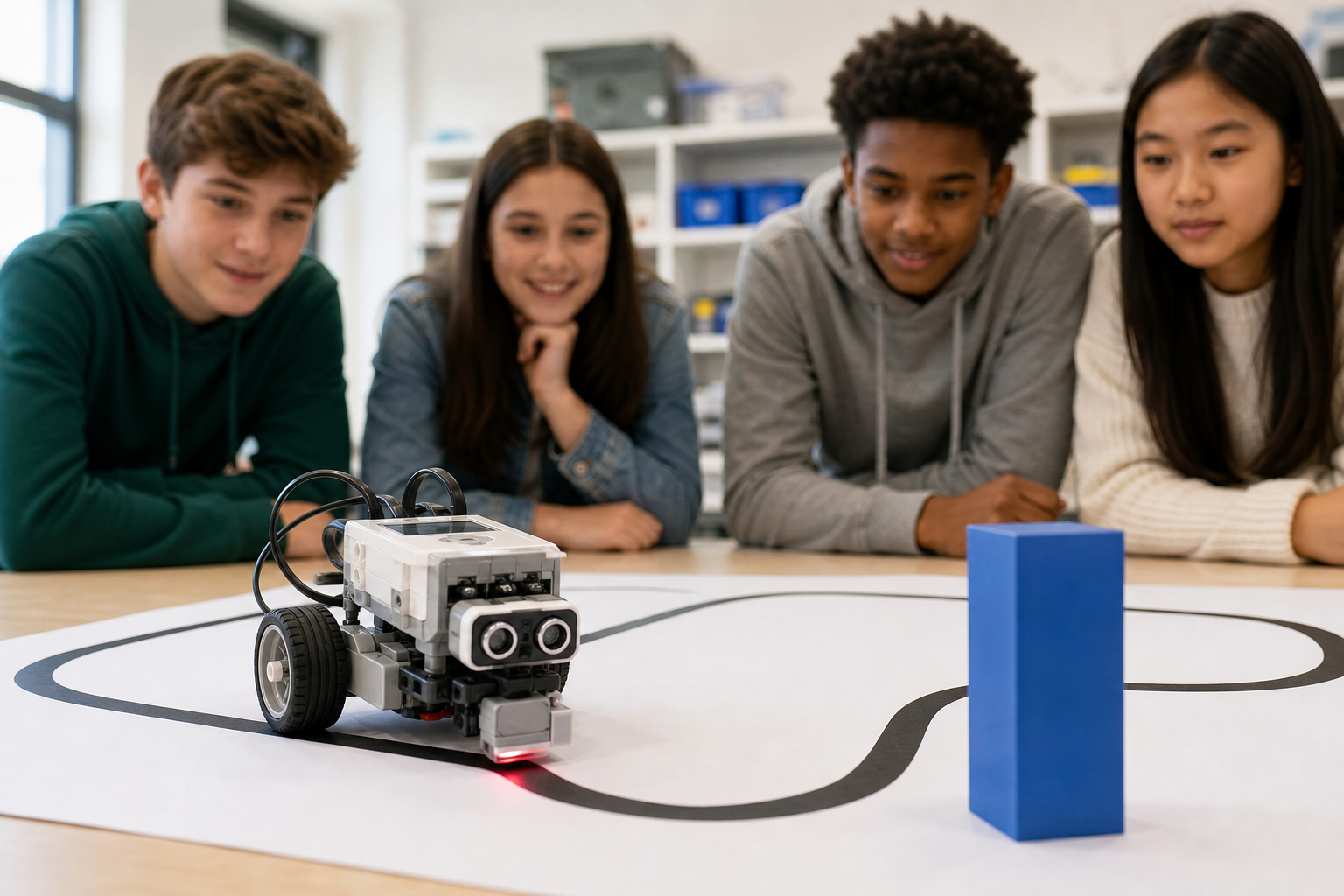

Example 1: How a line-following robot works
A line-following robot is one of the clearest classroom examples because students can see the decision pattern happen in real time. A color or reflectance sensor points at the floor. If it detects the dark line, the robot stays on course. If it sees more white space than expected, the program adjusts the motors to correct the path.
Students do not need a deep computer science lesson to understand this. They only need the input and the response:
- If the sensor sees the line, keep moving as planned.
- If the sensor drifts off the line, steer back.
That is why robotics often goes better after students already understand simple circuits and signals. The article Circuits Students Should Understand Before Robotics helps establish that foundation.
Example 2: How a robot avoids obstacles
Distance sensing gives a second clear example. A robot can use a distance sensor to measure how close it is to a wall or another object. If the measured distance becomes too small, the code can tell the motors to stop, back up, or turn.
This is a strong teaching example because the decision rule is easy to say out loud:
- If the object is far away, keep going.
- If the object is too close, change direction.
Students quickly see that the sensor is not doing the turning by itself. The sensor only reports information. The program uses that information to choose what the motors should do.
Example 3: Light input and output behavior
Not every sensor lesson has to begin with a moving robot. A simpler bridge is a light-sensitive circuit. In How to Build a Simple Night-Light Circuit, the change in light level affects what the circuit does. That is not yet a full robot decision system, but it gives students the same important idea: input conditions can change output behavior.
That bridge matters for beginners because it connects robotics to familiar electronics instead of making robotics feel like a separate subject. The electrical ideas still matter. Sensors depend on signals, voltage, and a working circuit. If students need that background, What Is Voltage? A Student-Friendly Explanation is a helpful companion read.
What students often misunderstand
- The sensor makes the decision by itself.
- The robot understands the whole room the way a person does.
- More sensors automatically mean a smarter robot.
- If a robot fails, the sensor must be broken.
- Robotics is separate from circuits and electronics.
Most of these problems improve when teachers keep asking three questions: What is the robot sensing? What rule is it using? What action follows from that rule?
A simple classroom teaching sequence
If the topic is new, avoid starting with an overloaded robot build. A better sequence is:
- Define a sensor in plain language.
- Show one sensor and ask what information it provides.
- Write one clear if-then rule on the board.
- Connect that rule to an output such as a motor or LED.
- Let students predict what will happen before testing.
- Troubleshoot when the behavior does not match the prediction.
This approach works because it turns robotics into observable cause and effect. It also keeps mixed-experience classes on the same conceptual path even when some students move faster than others.
Where Mr Circuit fits naturally
The best internal destination for this topic is the For Schools and Educators page because teachers reading this article are usually planning a bigger sequence, not just a single activity. If they want to bridge from sensing to digital decisions, the Mr Circuit Lab 3 Digital Logic Gates STEM Kit is the most natural product example because it helps students understand how inputs and outputs connect to formal logic.
Frequently Asked Questions
What is the job of a sensor in a robot?
A sensor detects a condition such as light, distance, touch, or motion and sends that information to the robot's control system.
Do sensors make decisions on their own?
No. Sensors provide input. The robot's code or control logic uses that input to choose an action.
What is the easiest robot decision example for students?
Line following is usually the clearest because students can watch a robot react to a dark path in real time.
Why should students learn circuits before robotics?
Because sensors, motors, and control systems still depend on electrical signals and complete circuits.
Can a non-robot circuit still teach this idea?
Yes. A light-sensitive night-light or similar input-output circuit can introduce the same basic reasoning.
