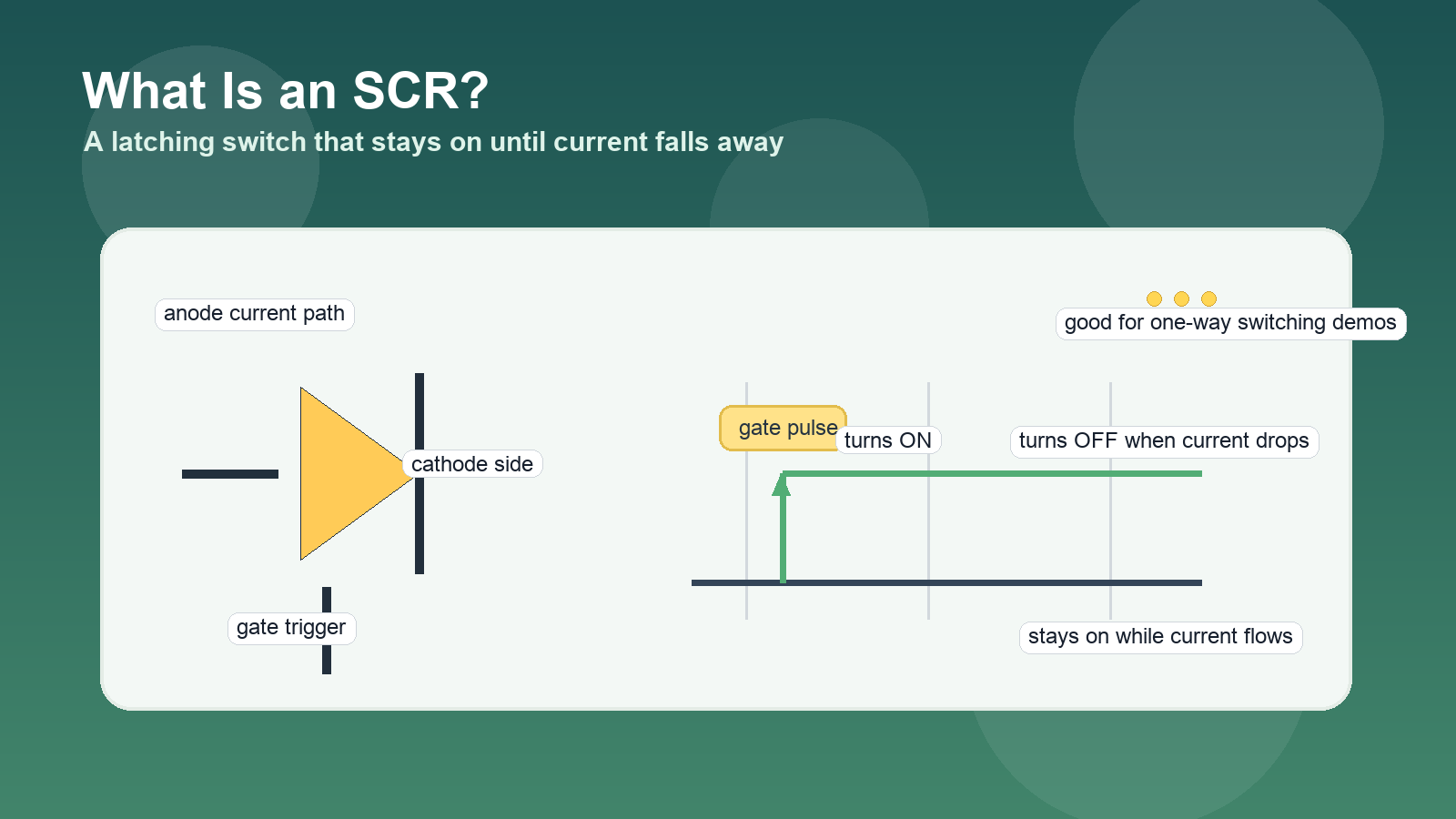

An SCR, or silicon-controlled rectifier, is a one-way electronic switch that turns on when its gate receives a trigger and then stays on while enough current keeps flowing. That is the key beginner idea. An SCR does not behave like an ordinary switch that turns off the moment the control signal disappears. It can latch.
That latching behavior is why this topic deserves its own lesson. Students who already know what a diode does and have seen transistors used as switches are ready for the next question: what kind of part keeps conducting after a brief trigger? That is where the SCR starts to make sense.
What SCR stands for
SCR stands for silicon-controlled rectifier. The name gives three useful hints:
- Silicon: it is a semiconductor device.
- Controlled: it does not simply turn on by itself like an ordinary forward-biased diode; a gate trigger controls the turn-on event.
- Rectifier: it mainly conducts in one direction, which is why it is often compared to a controlled diode.
STMicroelectronics' SCR application note explains this clearly: when forward voltage is present, the device still needs gate current to turn on, which is why thyristors are called silicon-controlled rectifiers.1
The three terminals students should know
| Terminal | Student-friendly role | What to say in class |
|---|---|---|
| Anode | Main current entry side | This is part of the path the load current wants to use. |
| Cathode | Main current exit side | This is the other end of the one-way current path. |
| Gate | Trigger input | A small control signal here can tell the device to turn on. |
What makes an SCR different from a transistor switch
The beginner difference is not the symbol. It is the latch. With an ordinary transistor-switch lesson, students usually learn that the output changes while the control signal is present. With an SCR, the gate pulse can be brief, but the device may remain on as long as the main current stays above the required level.
The ST note also explains the turn-off side: the device turns off when its current reaches zero.1 That sentence is the heart of the article. If students remember nothing else, they should remember this: an SCR can stay on after the trigger, and it turns off when the current path falls away.
How to explain latching without overcomplicating it
Latching is the place where many first-time learners get stuck. A good classroom explanation is this: a transistor is often taught like a door that stays open only while you keep pushing it. An SCR is closer to a door that can stay open after a quick push, as long as the conditions that keep it open are still there.
Littelfuse's thyristor fundamentals note supports that explanation by describing the basic SCR operation and the regenerative action that follows a proper gate signal.2 Students do not need the full two-transistor internal model on day one, but teachers can use that source to keep the simplified explanation technically honest.
A safe low-voltage classroom sequence
- Show the SCR symbol and identify anode, cathode, and gate.
- Tell students the device is off even when forward voltage is present.
- Apply or describe a brief gate trigger.
- Explain that the device turns on and stays on while enough current continues to flow.
- Then remove or reduce the current path and explain why the device turns off.
This works best as a conceptual demo in a safe low-voltage context. Avoid AC mains examples in a beginner article. Students first need the switching behavior, not the power-electronics application list.
How SCRs fit in the Mr Circuit sequence
Mr Circuit Lab 1 explicitly says students will learn how the gate in an SCR works and how to use it in an electronic circuit.3 The product catalog also includes a dedicated MC1-07 lesson for how an SCR works. That sequencing matters because an SCR is not usually the first semiconductor part students should meet.
It usually makes more sense after students understand one-way conduction from a diode, output control in a transistor lesson, and simple timing ideas from posts like How a 555 Timer Works in a Beginner Circuit. Once those pieces are in place, the SCR becomes an interesting "why does it stay on?" question instead of a confusing symbol.
Common beginner mistakes
- Thinking the gate behaves like a transistor base that must stay driven the whole time.
- Forgetting that the SCR mainly conducts one way, which is why the diode comparison helps.
- Using the word latch without explaining what keeps the device on.
- Jumping straight to high-voltage applications instead of a safe classroom model.
When a product link helps instead of distracts
This is another case where a product link is educationally relevant. If a teacher wants a ready-made lab sequence rather than a theory-only article, the Mr Circuit Lab 1 kit and the dedicated MC1-07 SCR lesson are directly related to the concept being taught. For broader program planning, the For Schools and Educators page is the better next step.
FAQ
Is an SCR the same as a diode?
No. They are related in the sense that both are one-way devices in basic explanations, but an SCR also has a gate that can trigger conduction.
Why does an SCR stay on after the gate pulse?
Because it latches. Once triggered, it can remain conducting while the main current stays high enough.
Does an SCR turn off when the gate signal is removed?
Not necessarily. That is the point students must learn. It typically turns off when the current falls to zero or below the needed holding level.
When should students learn SCRs?
Usually after they already understand diodes, basic transistor switching, and simple circuit control ideas. It is not the best first semiconductor lesson.
