A transistor can be taught as an electronic switch: a small control signal tells a larger current path when to turn on or stay off. For beginners, that explanation is usually enough to understand LED drivers, alarms, night-lights, and many other simple classroom circuits without starting with advanced semiconductor theory.
That framing matters because many first transistor lessons go wrong by becoming too abstract too early. Students do not need every detail about charge carriers before they can understand a useful circuit role. They need to see that one part can control another part of the circuit.
Two current sources support that beginner-first explanation well. SparkFun's transistor tutorial still gives a clear NPN-first overview, and onsemi's October 2024 2N3904 datasheet still describes the part as a general-purpose amplifier and switch. Mr Circuit also currently offers an MC1-08 How an NPN Transistor Works kit and includes transistor checker activities in Lab 1.
What “electronic switch” means
A mechanical switch is controlled by your hand. A transistor switch is controlled by an electrical signal. That is the simplest way to separate the two ideas.
In a basic NPN lesson, students can think of the transistor as a gatekeeper. A small signal reaches one part of the transistor, and that lets a bigger circuit path turn on. Remove that control signal, and the larger path turns off again.
The three pins in student language
| Pin | Student-friendly meaning |
|---|---|
| Base | The control input. A small signal here tells the transistor whether it should switch. |
| Collector | The side where the controlled path usually enters the transistor in a simple NPN switch explanation. |
| Emitter | The return side of the controlled path in many beginner NPN examples. |
This is not the full physics story, but it is the right first classroom story. It is accurate enough to support safe beginner builds and helpful enough that students can troubleshoot real circuits.

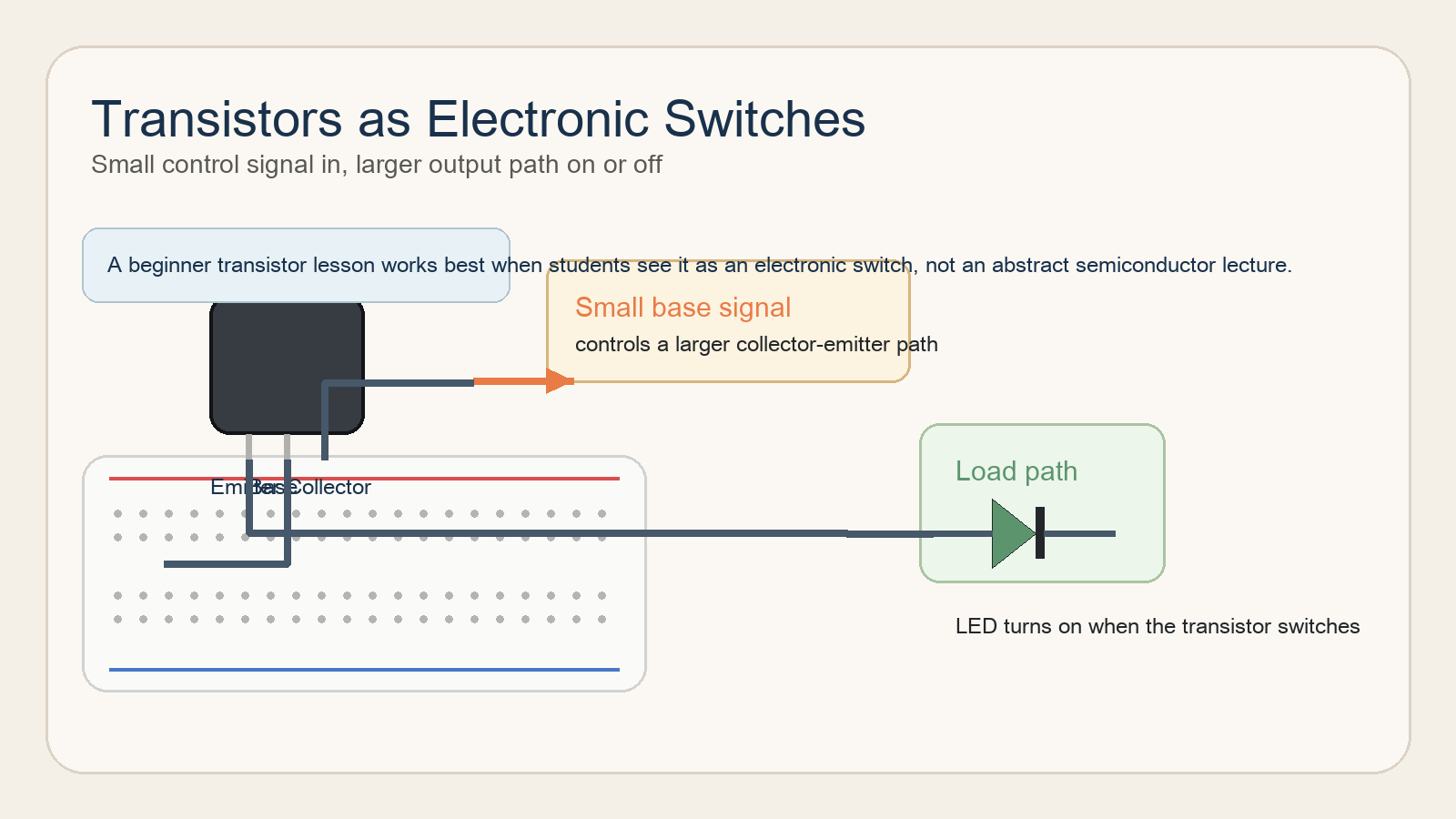

How to demonstrate a transistor switch
- Identify the transistor pins correctly before wiring anything else.
- Place the transistor so each leg lands in a separate breadboard row.
- Wire a simple output path such as an LED or buzzer.
- Add a control path to the base through an appropriate resistor.
- Change the input and watch the output switch on or off.
This lesson works because students can see control and response. The transistor is no longer an invisible idea. It becomes the reason the output changed.
Where students already meet this idea on Mr Circuit
The easiest internal examples are the site's existing beginner projects. In the burglar alarm build, a transistor helps control the alert path. In the night-light build, a changing sensor condition influences a transistor-controlled output. In the continuity tester, the transistor supports a practical indicator circuit.
Those examples matter because they keep the lesson grounded. Students can move from the definition article into a real build instead of stopping at vocabulary.
Common student mistakes
- Placing two transistor legs into the same breadboard row.
- Confusing the transistor's orientation and assuming every black package can be wired the same way.
- Skipping the resistor on the control path.
- Thinking the transistor is the power source instead of the control component.
- Trying to memorize deep semiconductor theory before understanding the switching job.
That last mistake often comes from adults, not students. For a first lesson, the practical switching role should come before the detailed physics.
How this connects to later lessons
Once students understand a transistor as an electronic switch, many other topics become easier. Sensors can control outputs. Timers can trigger loads. Logic circuits can feel less mysterious. Even the article on what an integrated circuit is becomes clearer, because students can understand that an IC may contain many transistor functions inside one package.
If teachers need implementation help for a larger electronics sequence, the best planning page is For Schools and Educators. For direct materials, the NPN transistor replacement pack, the MC1-08 lesson kit, and Lab 1 are the most relevant internal destinations.
FAQ
Is a transistor just a switch?
No. A transistor can also amplify signals. But for a beginner lesson, teaching it first as an electronic switch is often the clearest starting point.
Do students need to learn NPN and PNP at the same time?
Usually not. Starting with one NPN example keeps the lesson clearer and reduces avoidable confusion.
Why is the base important?
The base is the control input in a beginner switch explanation. A small change there influences the larger output path.
What is a good first transistor project?
A transistor-controlled LED, buzzer, alarm, or night-light is usually a stronger first lesson than an abstract schematic alone.
How does this connect to integrated circuits?
Many integrated circuits contain large numbers of transistors working together, so this lesson helps students understand what an IC is doing internally at a basic level.
