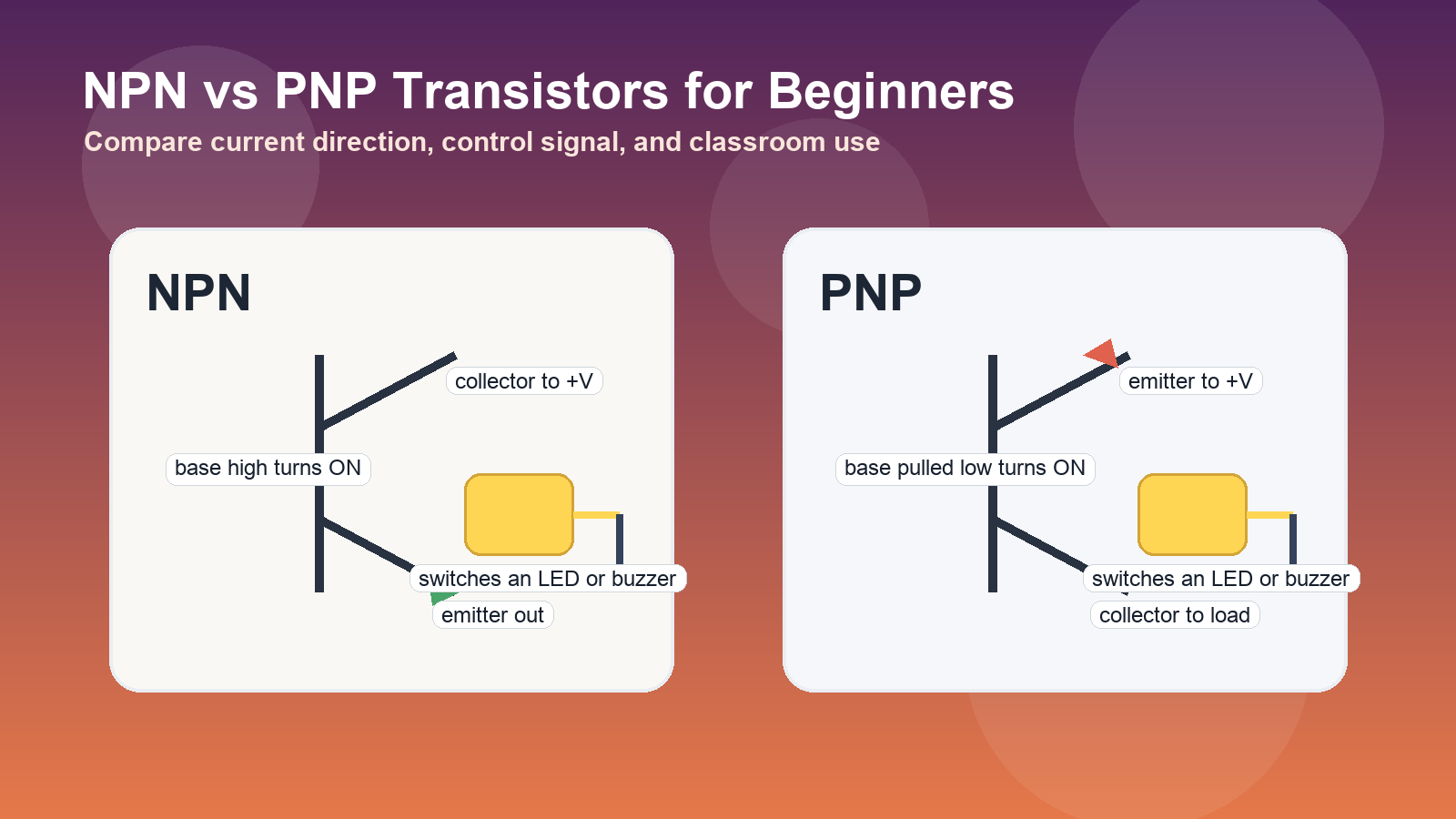

NPN and PNP transistors do the same broad job, but they turn on under opposite voltage conditions. In beginner language, an NPN transistor usually turns on when the base is driven higher than the emitter, while a PNP transistor usually turns on when the base is pulled lower than the emitter. That polarity difference is the main idea students need first.
For most classrooms, the best sequence is simple: teach the transistor as a switch, start with NPN because it is easier to visualize in beginner low-side circuits, then compare it to PNP by flipping the control rule. Once students see that mirror relationship, the symbols and wiring choices start making more sense.
What NPN and PNP mean
NPN and PNP are two complementary types of bipolar junction transistor. They are built differently inside, but the beginner takeaway is much more practical: the control polarity changes.
- NPN: usually easier to introduce first because the base goes higher than the emitter to turn the device on.
- PNP: usually introduced second because the base must move lower than the emitter to turn the device on.
SparkFun's transistor tutorial makes this point directly by focusing first on the NPN and then noting that PNP can be understood by flipping the polarity and sign relationships.1 That is a very good classroom strategy because it reduces memorization.
The fastest student-friendly comparison
| Question | NPN | PNP |
|---|---|---|
| How does it usually turn on? | Base higher than emitter | Base lower than emitter |
| Common beginner mental model | Low-side switch | High-side switch |
| Why teachers start here | Often simpler to show with LEDs and buzzers | Useful after students already understand the NPN pattern |
| Main beginner confusion | Forgetting the base resistor or polarity | Using the same control rule as NPN |
Why many beginner lessons start with NPN
There is nothing more important or more advanced about NPN in general, but it is often easier to teach first. A very common beginner circuit uses an LED or buzzer connected so the transistor completes the path to ground. Students can see or hear the output immediately, which makes the switch idea more concrete.
That is why NPN fits so well with examples already familiar from Mr Circuit lessons, including sensor-controlled night-light circuits and simple alarm builds. After that, PNP becomes much easier to explain as "the similar device that switches with the opposite control direction."
Real component references teachers can trust
It helps to connect the classroom explanation to real reference parts. The current onsemi 2N3904 datasheet, revised in October 2024, still describes the 2N3904 as a general-purpose amplifier and switch.2 The complementary 2N3906 reference identifies the device as a general-purpose PNP silicon transistor.3
You do not need students to read both datasheets, but those references support a teacher-friendly claim: these are standard switching transistors, not unusual specialty parts.
A classroom demo that makes the difference stick
- Show a simple NPN LED-switch circuit and define the base, collector, and emitter.
- Say out loud: "When the base goes higher than the emitter, the switch can turn on."
- Then show the PNP comparison and say: "This one flips the rule. The base must go lower than the emitter."
- Ask students what stayed the same and what changed.
That question matters because it prevents a common error: students often assume every transistor symbol behaves with the same polarity rule. The structure may look similar, but the control direction is not the same.
How this fits the Mr Circuit sequence
Mr Circuit's catalog makes the progression explicit. There is a dedicated MC1-08 lesson for an NPN transistor and a paired MC1-09 lesson for a PNP transistor. That is a good teaching clue: students should usually meet the parts as a pair, but not at the exact same depth on day one.
Teachers can also connect this topic to integrated circuits later, because many chips contain large numbers of transistors working together. The NPN versus PNP lesson helps students see that transistor behavior is not one-size-fits-all.
Common mistakes beginners make
- Thinking NPN and PNP are interchangeable without changing the circuit polarity.
- Memorizing the symbol arrow without understanding what voltage relationship turns the device on.
- Skipping the idea that a transistor is still just a controlled switch in this kind of lesson.
- Introducing high-side and low-side language before students understand the simpler on-off behavior.
When product links are useful
This comparison is one of the places where product links can support the lesson instead of distracting from it. A teacher who wants a ready-to-run progression can use the dedicated NPN and PNP experiment kits or the broader Mr Circuit Lab 1 kit. For school-wide planning, the For Schools and Educators page is a better next step than dropping students directly into more complex transistor theory.
FAQ
Which transistor should beginners learn first?
Usually NPN. It is often simpler to demonstrate with a low-side LED or buzzer circuit, and then PNP can be taught as the polarity-flipped comparison.
Does NPN mean better and PNP mean worse?
No. They are complementary tools. The important difference is the control polarity and where each device fits into a circuit.
Why do the symbol arrows point in opposite directions?
Because the devices are opposite types. The arrow direction is a quick visual reminder that the polarity behavior is not the same.
Do students need to master semiconductor physics first?
No. For beginner STEM and CTE lessons, the switch model is enough. More detailed device physics can come later if the course needs it.
Sources and citations
- SparkFun Learn, "Transistors".
- onsemi, "2N3904" datasheet, October 2024 revision.
- onsemi, "2N3906" datasheet.
