Beginner robots work because three electronics layers cooperate: power supplies energy, sensors provide information, and motors turn electrical decisions into motion. When students understand those layers together, robotics feels explainable instead of mysterious.
Last updated: June 29, 2026.
Teachers often introduce a robot as a finished machine, but the better classroom move is to unpack the system. WPILib's basic wiring guidance starts with battery, controller, and safe wiring. REV Robotics introduces motors and sensors as separate but coordinated subsystems. TeachEngineering reinforces that movement and sensing are both part of the same engineering system. Those sources all point to the same teaching idea: robotics works best when students can trace energy and information through the machine.
The three layers students need to see
| Layer | Role in the robot | Simple classroom question |
|---|---|---|
| Power | Supplies electrical energy to the system | Where does the robot get the energy to run? |
| Sensors | Report useful information about the environment or robot state | What can the robot detect? |
| Motors | Convert electrical energy into movement | How does the robot turn or move? |
The missing middle is control logic, but for beginners it is enough to say the robot uses sensor information to decide how to power its motors. That framing is simple without being misleading.
Power comes first
A robot cannot sense or move if the power system is unstable. WPILib's robot battery guidance and basic robot wiring documentation both emphasize correct battery connections, proper wiring, and power distribution because every other subsystem depends on them. In class, this is where students learn that "the robot will not start" is often an electrical problem before it is a programming problem.
That is why articles such as What Is Voltage? and How Batteries Work in Simple Student Circuits matter in a robotics sequence. They explain the energy side of the system.
Sensors tell the robot what is happening
Sensors do not move the robot. They provide data. That data might describe light, distance, rotation, or contact. WPILib describes sensors as hardware that reports useful state information. In beginner terms, they help the robot notice something it otherwise would not know.
Examples students can understand quickly include:
- A touch sensor reporting that the robot hit an object
- A light sensor reporting dark versus bright floor areas
- A distance sensor reporting that a wall is too close
- An encoder reporting how far a wheel has turned
Without sensors, a robot can still move, but it cannot react intelligently to changes around it.
Motors turn the decision into motion
REV Robotics' motor documentation and TeachEngineering's motor-focused robotics lesson both help clarify that motors are output devices. They convert electrical energy into motion. That sounds simple, but it is a major shift for beginners because students often treat motion as something separate from the electronics. It is not. Motion is one of the clearest electrical outputs in robotics.
If the sensor reading changes and the program decides to turn left, the physical change still depends on the motor receiving the right power and control signal. That makes motors the visible end of the robot's decision chain.
How the full loop works
- The battery and wiring provide usable electrical power.
- A sensor measures something important.
- The control system compares that reading to a rule.
- The motors change speed or direction.
- The robot moves, and the sensors check again.
This repeated loop is why robotics is such a strong systems-thinking topic. Students can trace both energy flow and information flow at the same time.
Common beginner failure points
- The battery is low or connected incorrectly.
- A motor is wired poorly or physically jammed.
- A sensor is present but not aimed or calibrated correctly.
- The class confuses a sensor reading with a motor command.
- Students try to debug code before checking power and wiring.
These are strong reasons to teach measurement and troubleshooting early. The digital multimeter article and robotics troubleshooting article fit naturally here.
A practical lesson sequence
- Begin with one powered circuit and verify the energy path.
- Add one output such as a motor and describe what it converts.
- Add one sensor and ask what information it provides.
- Write one if-then rule that connects the sensor to the motor behavior.
- Have students predict what should happen, then test and revise.
This sequence keeps the robotics lesson grounded in observable evidence. It also prevents the common mistake of introducing too many new subsystems at once.
Where Mr Circuit fits naturally

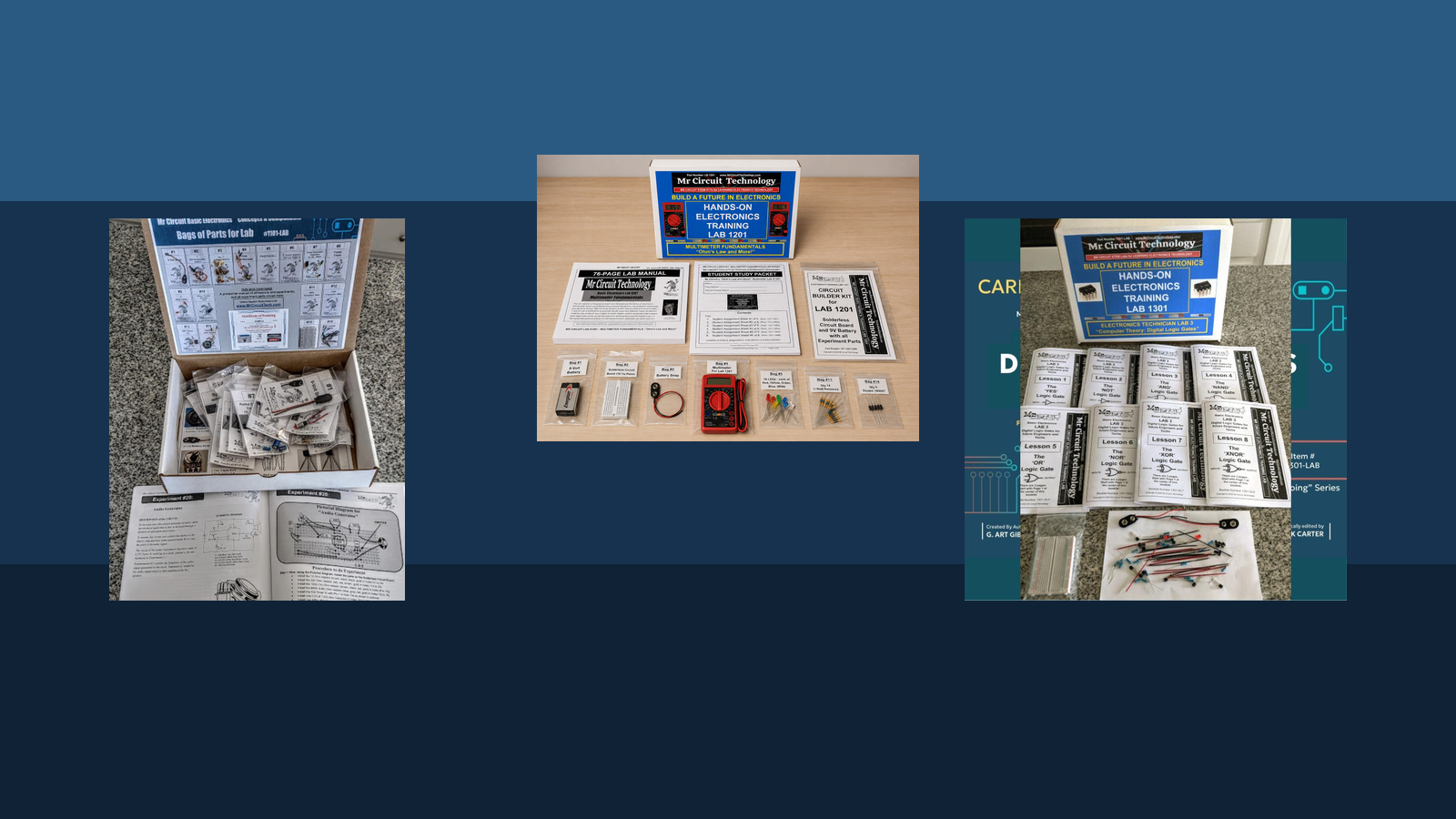

The strongest internal path here is to move readers across three layers: basic circuits, measurement, and control logic. The Lab 1 Basic Electronics STEM Kit is the natural power-and-circuits entry point. The Lab 2 Digital Multimeter STEM Kit supports troubleshooting and measurement. The Lab 3 Digital Logic Gates STEM Kit fits the control side. For broader planning, teachers can also use the For Schools and Educators page.
Frequently Asked Questions
What are the most important electronics parts of a beginner robot?
The most important layers are power, sensors, and motors, plus enough control logic to connect the sensor readings to motor actions.
Why should students learn power before robotics?
Because every robot behavior depends on a working energy source, safe wiring, and a complete path for current.
Do sensors make the robot move?
No. Sensors provide information. Motors create movement after the control system decides how to respond.
Why do robots still need troubleshooting if the code is correct?
Because battery issues, wiring mistakes, calibration problems, and bad connections can all stop a robot even when the code logic is fine.
What is a good first robot systems lesson?
Show one sensor, one motor, and one battery-powered control loop. That gives students a full system without overwhelming them.
