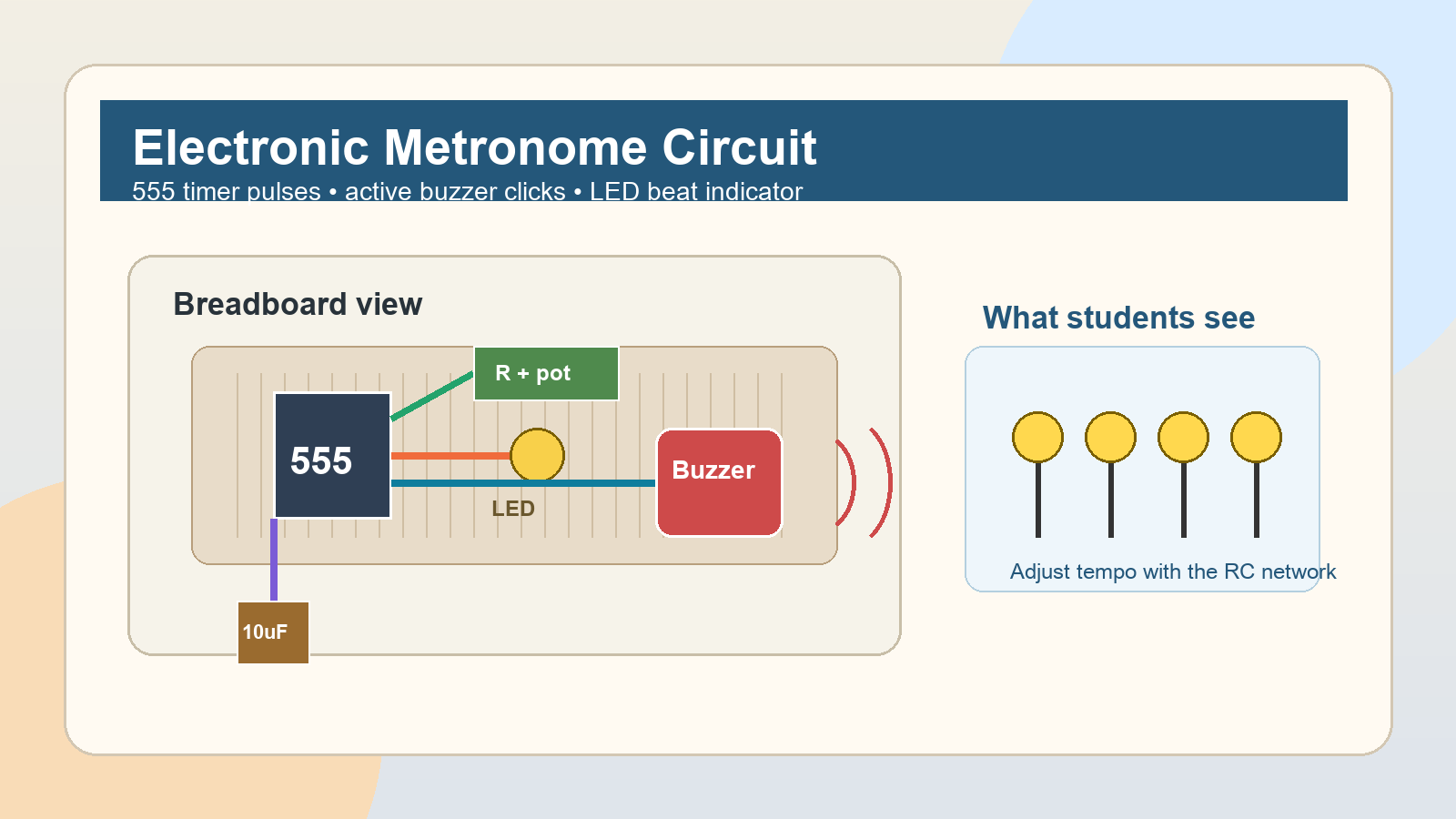

An electronic metronome circuit uses a 555 timer in astable mode so the output switches on and off at a steady rate. Add a potentiometer to change the timing, an LED to show the beat, and an active buzzer to click each pulse, and students get a simple rhythm tool they can hear and see on a breadboard.
Last updated: June 30, 2026.
Why this is a strong classroom timing project
A metronome is useful because it makes timing visible. Students do not just hear a click. They can trace how the resistor-capacitor network sets the pace, how the 555 timer changes state, and how the output drives both an LED and a buzzer. That is better for learning than treating a beat as something mysterious.
The Texas Instruments NE555 product page still lists the chip as an active precision timer that supports astable operation. That matters here because an astable 555 continuously repeats its high-low pattern. For a metronome, that repeating output is exactly what students need.
What the circuit is doing in simple language
The easiest explanation is this:
- The capacitor charges through a resistor path.
- When the voltage reaches the 555 timer's upper threshold, the output changes.
- The capacitor then discharges through the timing network.
- When the voltage drops far enough, the output changes again.
- That cycle repeats and creates the beat.
Electronics-Tutorials explains the same astable behavior with the classic threshold, trigger, and discharge language. In class, the simpler message is enough: RC timing controls the beat speed.
Parts list for a beginner breadboard metronome
| Part | Why it is there |
|---|---|
| NE555 timer IC | Creates the repeating output pulse |
| 10k resistor | Sets part of the timing path |
| 50k or 100k potentiometer | Lets students adjust the tempo |
| 10uF capacitor | Slows the timing enough for a beat instead of an audio tone |
| LED plus 330 ohm resistor | Shows the beat visually |
| Active buzzer | Clicks or beeps when the output pulse goes high |
| 5V to 9V battery pack | Powers the project safely at low voltage |
| Breadboard and jumper wires | Make the build adjustable and beginner-friendly |
The active buzzer detail matters. Murata's sound-component basics help explain why some sound parts make their own tone when powered while others need an audio-frequency drive signal. For a slow metronome click, an active buzzer is easier than a passive piezo speaker.
How to wire the project
- Place the 555 timer across the center gap of the breadboard.
- Connect power and ground first so students build the habit of tracing the whole circuit.
- Add the timing resistor and potentiometer in the astable resistor path.
- Connect the 10uF capacitor in the timing section so the charge-discharge cycle is slow enough for a visible beat.
- Wire the LED and its resistor to the output so students can watch the pulse.
- Wire the active buzzer to the output so each pulse produces a click or beep.
- Power the circuit and turn the potentiometer slowly until the beat feels usable for a counting exercise.
The SparkFun Red Hat guide is helpful here because it shows the same 555-plus-adjustment idea in a sound circuit. This metronome version simply slows the timing down so students get beats instead of a continuous note.
How to choose a useful tempo range
For most classroom demos, a rough range near 60 to 120 beats per minute works well. That is about one to two pulses per second. Students do not need exact calibration for the lesson to work. The educational goal is to observe how changing resistance changes timing.
A practical routine is to start with the potentiometer in the middle, then adjust until the LED flashes at a comfortable counting pace. Once the beat is stable, ask students what component change would make the tempo slower. The correct reasoning is to increase the RC timing, usually by increasing resistance or capacitance.
What students should notice while testing
- The LED and buzzer respond at the same rhythm because they share the same output pulse.
- A larger timing capacitor slows the beat.
- More timing resistance also slows the beat.
- The project is more about repeatable timing than musical accuracy.
This is a good moment to link back to What Is a 555 Timer? and How a 555 Timer Works in a Beginner Circuit. Those articles make the metronome feel like part of a sequence instead of a one-off build.
Common beginner mistakes
- Using a passive piezo speaker and expecting a slow metronome pulse to sound like a clear click without extra circuitry.
- Choosing a timing capacitor that is too small, which makes the output too fast.
- Forgetting the LED resistor.
- Turning the potentiometer to one extreme and assuming the circuit is broken when the rate simply moved out of the useful range.
- Skipping power-rail checks and misplacing the 555 timer across the breadboard rows.
If the circuit does not work, return to a simple checklist: verify power, verify ground, verify the 555 orientation, verify the capacitor placement, then test the LED path separately.
How this fits into a Mr Circuit learning sequence
This project works best after students already know what a potentiometer does and what a speaker or buzzer output is doing in a circuit. It is also a natural bridge into the Mr Circuit Lab 5 Digital Electronics STEM Kit, where timing and logic ideas can expand beyond a single breadboard project.
For teachers building a larger unit, the For Schools and Educators page is the right planning destination.
FAQ
What makes this circuit a metronome?
It creates a regular repeated pulse that students can hear as a click and see as a flashing LED.
Why use an active buzzer instead of a passive piezo?
An active buzzer is easier for a slow beat because it produces a sound whenever the pulse goes high. A passive part usually works better when the circuit is generating an audio-frequency tone.
How do I make the beat slower?
Increase the timing resistance, increase the capacitor value, or both. That makes the RC cycle take longer.
Can this replace a musician's metronome?
No. It is better as an educational timing project than as a precision music device.
What is the best classroom use for this build?
Use it to teach timing, RC networks, and output synchronization between sound and light.
