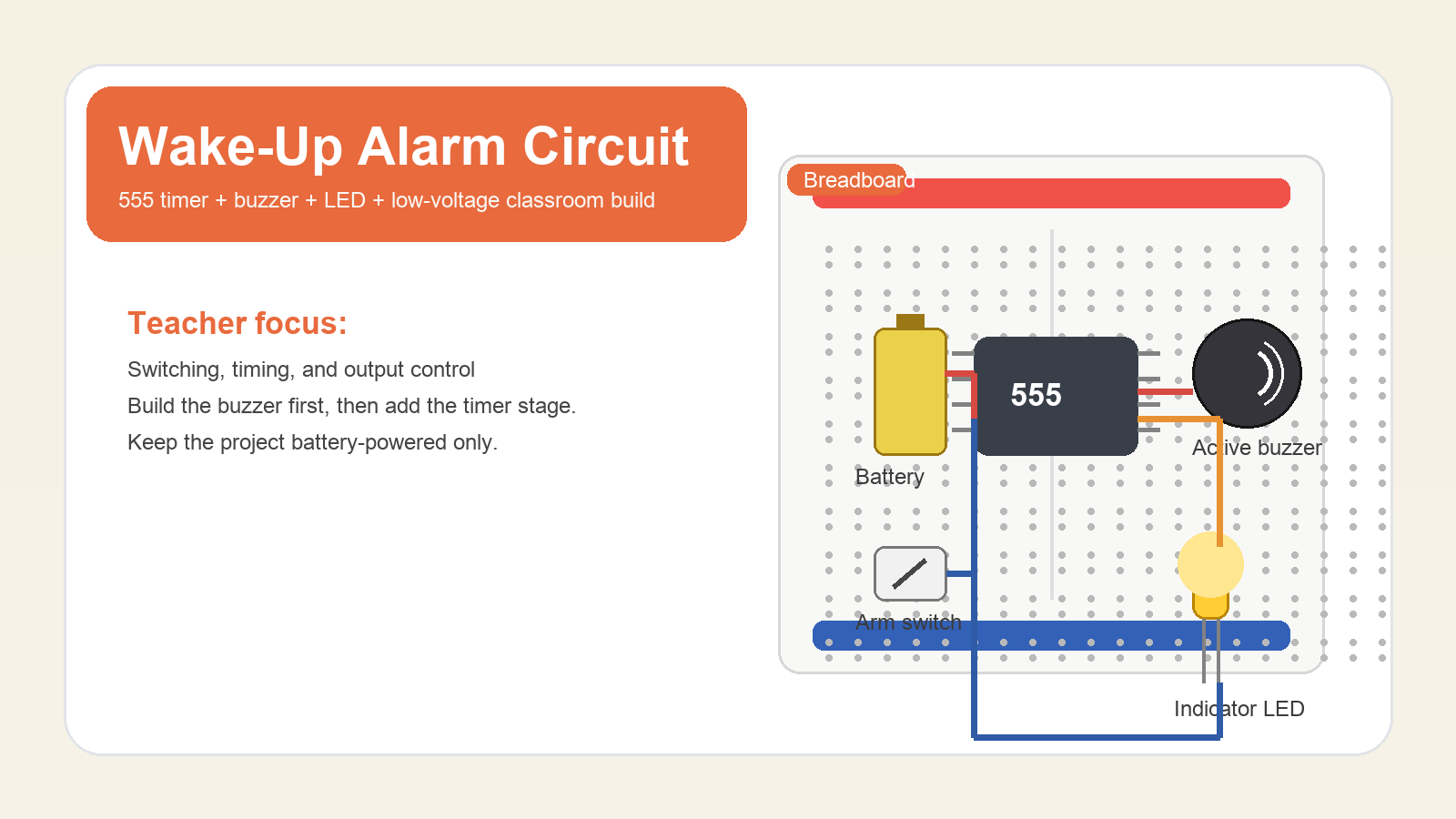

A simple wake-up alarm circuit uses a 555 timer, a buzzer, and a low-voltage power source to create a clear audible alert. The easiest classroom version starts with a switch-controlled buzzer, then adds the 555 timer so students can study timing, repetition, and output control on a breadboard.
Last updated: July 2, 2026.
What this project is really teaching
A wake-up alarm circuit sounds more complicated than it needs to be. In a classroom, the value is not building a real clock radio. The value is showing how a circuit can turn an input or timing event into an output students can hear and see.
That is why this project works well after students understand open versus closed circuits and have seen a simple output device before. The SparkFun Button and Switch Basics guide is useful here because it explains the switch as the part that changes whether current can flow at all.
Start simpler than the name suggests
The strongest first version is not a real time-of-day alarm. It is a low-voltage alarm model. Begin with a battery pack, an active buzzer, and a switch. When the switch closes, the buzzer sounds. That gives students a reliable baseline.
Once the buzzer works, add the timer stage. The Texas Instruments NE555 product page and the current NE555 datasheet confirm that the device is still used for accurate time delays and oscillation. In class language, the 555 is the part that shapes when and how long the alert runs.
Why a 555 timer fits this lesson
A 555 timer is helpful because it makes the alarm behavior repeatable. Students can compare a direct-on buzzer with a timed or pulsing output and immediately hear the difference. That turns the build from a novelty into a systems lesson.
The Electronics-Tutorials 555 oscillator guide explains how the chip can create a repeating square-wave style output when paired with resistors and a capacitor. You do not need to teach every formula on day one. Students only need to understand that the resistor-capacitor network changes the timing.
Choose the sound part carefully
The easiest classroom path uses an active buzzer. According to Murata's sound component guide, self-drive buzzers produce sound when DC power is applied. That means the part handles the tone internally.
A passive sounder needs an external changing signal to make an audible tone. That can be a good later lesson, but it adds extra confusion to a first alarm build. If your goal is fast success, use an active buzzer first and keep the passive-versus-active discussion as an extension.
Parts list for a beginner wake-up alarm circuit
| Part | What it does |
|---|---|
| Battery pack | Provides safe low-voltage power |
| Active buzzer | Creates the audible alarm |
| NE555 timer | Controls the timing or repeating alarm behavior |
| Resistors and capacitor | Set the timing interval |
| Switch or push button | Arms or triggers the alarm model |
| LED and resistor | Add a visible indicator alongside the sound |
| Breadboard and jumper wires | Make it easy to test one section at a time |
Direct alarm versus pulsing alarm
| Version | Best use |
|---|---|
| Switch plus active buzzer | Fastest first build and easiest troubleshooting |
| 555 timer plus buzzer and LED | Better for teaching timing, repeating alerts, and output control |
Step-by-step classroom build routine
- Connect the battery pack to the breadboard rails.
- Test the active buzzer directly so students know the output device works.
- Add the switch so the buzzer only sounds when the circuit is intentionally closed.
- Place the 555 timer and wire the timing resistor-capacitor network.
- Add the LED output so students can see the timing pattern as well as hear it.
- Power the circuit and adjust the timing parts if the alert is too fast or too slow.
If students get stuck, remind them to test one section at a time. A buzzer problem, a switch problem, and a timer problem are not the same thing. That mindset matches the logic behind variable timer projects and later troubleshooting work.
How to explain the timing behavior simply
Students do not need a dense analog electronics lecture to understand the build. Tell them that the capacitor fills and empties, and the 555 watches that change. When the voltage crosses certain internal thresholds, the output changes state. That is enough to explain why the buzzer or LED can pulse instead of staying on constantly.
If they already know what current does in a circuit, this project becomes a nice bridge between basic current flow and timed control.
A practical classroom extension
Split the class into two design teams. One team keeps the circuit simple and focuses on clear switching. The other adds the timed alarm behavior. Then ask which version is easier to explain to a beginner, which version gives better feedback, and which version is easier to troubleshoot.
If you want students to keep exploring outputs, a simple audio generator build is a strong follow-up because it keeps the focus on sound while increasing the electronics depth.
Common mistakes in a first alarm build
- Using a passive sounder when the lesson assumes an active buzzer.
- Trying to build the full timer stage before testing the buzzer directly.
- Misplacing the timer chip so pins land on the wrong breadboard rows.
- Changing several wires at once instead of isolating one problem.
- Treating the build like a real household or bedside safety device.
What to say about safety and realism
This is a low-voltage educational model. It is not a fire alarm, a bedside safety device, or a mains-powered home project. Keeping that boundary explicit matters because students often assume any buzzer project can be scaled up without changing the design requirements.
For broader classroom planning, the For Schools and Educators page is the better next step than turning this article into a hard product pitch. If a teacher does want more timed-output practice, the Mr Circuit Lab 5 Digital Electronics STEM Kit is the most natural extension.
FAQ
What is the easiest wake-up alarm circuit for beginners?
The easiest version uses a battery, an active buzzer, and a switch. That gives instant success before students add the 555 timer stage.
Why use a 555 timer in an alarm circuit?
The 555 timer helps create a repeatable timing pattern so students can hear or see how the output changes over time.
Can this project tell time like a real alarm clock?
No. This classroom-safe build models alarm behavior, but it does not keep real time like a clock or microcontroller with a clock module.
Should students use an active buzzer or a passive sounder?
An active buzzer is better for a first project because it makes sound as soon as DC power is applied.
How can students debug the circuit faster?
Test the buzzer first, then the switch, then the timer stage. Breaking the build into sections prevents random guessing.
