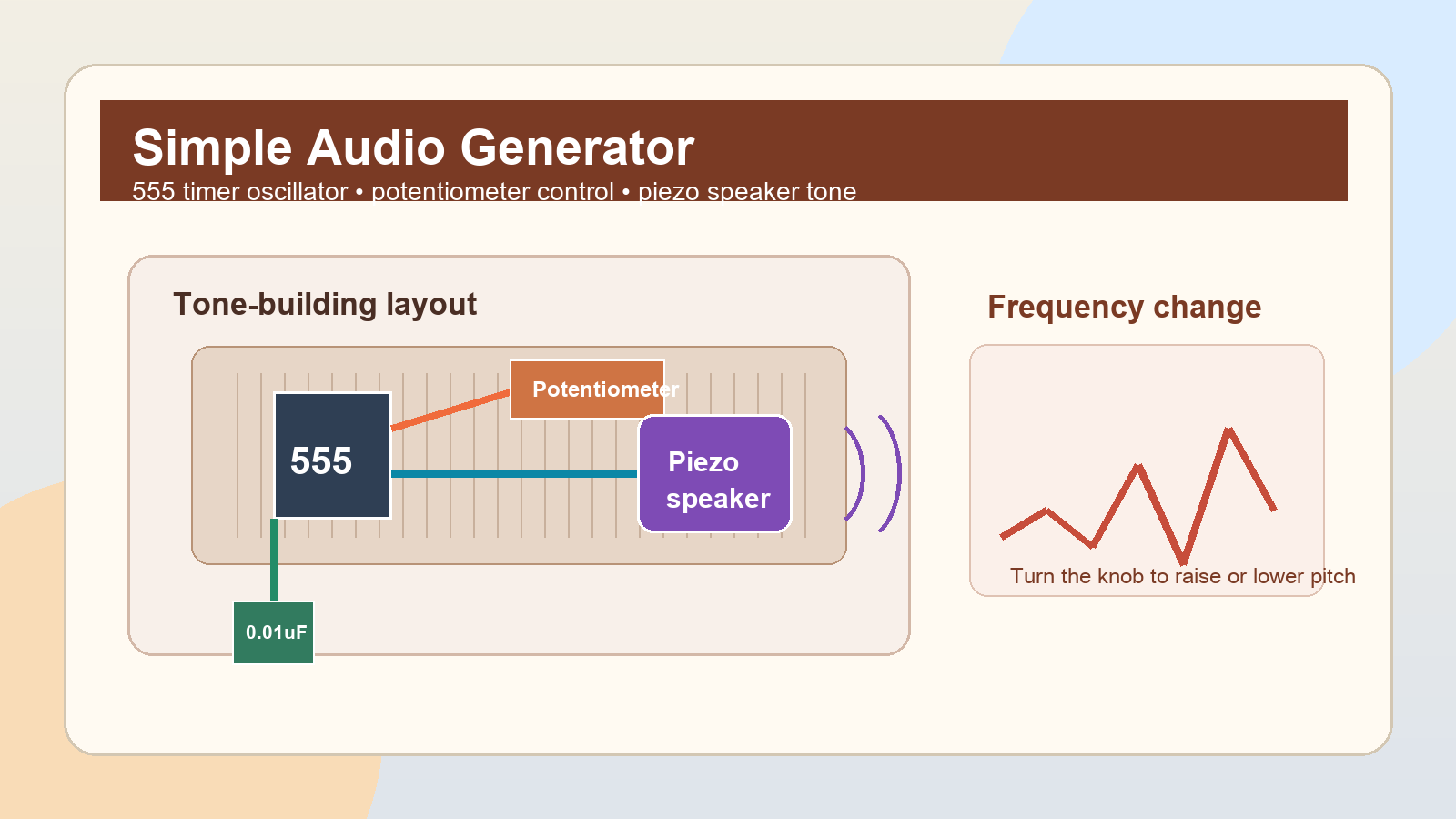

A simple audio generator uses a 555 timer in astable mode to switch on and off fast enough to create an audible tone. When a potentiometer changes the timing resistance, the pitch changes too, which makes this one of the clearest beginner breadboard projects for linking circuit timing to sound.
Last updated: June 30, 2026.
Why this project works so well for beginners
Students usually understand sound faster than they understand formulas. When they turn a knob and hear the pitch go up or down, they immediately see that component changes affect behavior. That makes an audio generator a strong follow-up to a basic 555 lesson because it turns hidden timing into something obvious.
According to the Texas Instruments NE555 product page, the chip still supports astable operation across a practical low-voltage range. That gives teachers a simple way to build an oscillator without a microcontroller.
What the circuit is really doing
The 555 timer repeatedly switches its output high and low. If that switching is slow, students see flashing. If the switching is fast enough, they hear a tone. That is the key idea for this build.
Electronics-Tutorials explains that the resistor-capacitor network controls how quickly the charge and discharge cycle repeats. In classroom language, that means the RC network controls the pitch.
Parts list for a simple breadboard audio generator
| Part | What it does |
|---|---|
| NE555 timer IC | Creates the repeating output waveform |
| 10k resistor | Provides fixed timing resistance |
| 100k potentiometer | Lets students change the pitch |
| 0.01uF timing capacitor | Helps push the oscillator into the audible range |
| Piezo speaker or passive buzzer | Turns the electrical switching into sound |
| Optional LED plus resistor | Adds a visible output indicator |
| 5V to 9V battery pack | Powers the project safely |
| Breadboard and jumper wires | Support fast classroom changes |
Murata's sound-component guide is useful here because it helps teachers explain why a passive piezo or speaker-like part is a better fit for a tone generator than an active buzzer. The passive part needs the fast switching waveform, which is exactly what the 555 is providing.
Step-by-step build routine
- Place the 555 timer across the center gap of the breadboard.
- Connect the power and ground rails first.
- Add the fixed resistor and potentiometer in the astable timing path.
- Connect the small timing capacitor so the oscillator runs in the audible range.
- Wire the piezo speaker or passive buzzer to the output side of the circuit.
- Power the project and turn the potentiometer slowly to hear the pitch change.
- If desired, add an LED indicator with a resistor so students can compare visible and audible outputs.
The SparkFun Red Hat guide supports this approach because it shows a similar 555 sound project driven by adjustment and simple output parts. That makes it a useful credibility check for the classroom version.
How to explain pitch without losing beginners
Start with plain language: faster switching sounds higher, slower switching sounds lower. Only after students understand that idea should you introduce the word frequency. The circuit does not know anything about music notes. It just repeats faster or slower depending on the RC timing.
This is also a good place to revisit what a potentiometer does. Students are not just turning a knob. They are changing resistance and therefore changing the timing cycle.
What students can test during the lesson
- Turn the potentiometer and describe what happens to pitch.
- Swap to a larger timing capacitor and observe the tone move lower.
- Swap to a smaller timing capacitor and observe the tone move higher.
- Compare the sound project with the earlier 555 explainer so the circuit behavior does not feel random.
If you want a short extension, ask students whether this project is closer to a buzzer, a timer, or a signal source. The best answer is that it is a simple signal source.
A useful classroom extension
One of the best follow-up activities is to have students build a simple comparison chart. Give them three potentiometer positions such as low, middle, and high. Then ask them to describe the sound with words first, such as lower, medium, and higher, before introducing frequency language. That keeps the learning grounded in observation.
After that, you can connect the project back to broader electronics thinking. A faster repeat rate is not just a sound idea. It is the same timing principle students will later use in alarms, pulse circuits, and digital timing projects. That is why this build has more value than a novelty noisemaker.
Common mistakes in a first tone-generator build
- Using an active buzzer instead of a passive piezo and then missing the pitch-change effect.
- Choosing a timing capacitor so large that the output becomes a click instead of a tone.
- Assuming the potentiometer changes voltage directly instead of changing timing resistance.
- Wiring the 555 incorrectly across the breadboard gap.
- Testing with a weak battery and assuming the pitch problem is caused by the component values.
When the circuit seems dead, check power, ground, chip orientation, and the speaker path before changing values at random.
Where this fits in the Mr Circuit sequence
This project makes more sense after students already know the basic role of the 555 timer and the output role of a speaker in a circuit. It is also a good bridge into more advanced timing and digital lessons inside the Mr Circuit Lab 5 Digital Electronics STEM Kit.
For larger class planning, the For Schools and Educators page is the better next stop than turning the article into a sales pitch.
FAQ
What is an audio generator in simple terms?
It is a circuit that creates a repeating electrical signal fast enough to make a speaker or piezo produce a tone.
Why does the pitch change when I turn the potentiometer?
The potentiometer changes resistance in the timing network, which changes how fast the 555 repeats.
Why use a small capacitor here?
A smaller timing capacitor helps move the oscillator into the audible range instead of a slow blink or click.
Can I use an active buzzer for this build?
You can, but it reduces the educational value because the buzzer makes its own tone. A passive piezo better reveals the circuit's changing frequency.
What should students learn from this project?
They should learn that RC timing affects output frequency and that frequency can become something they hear as pitch.
