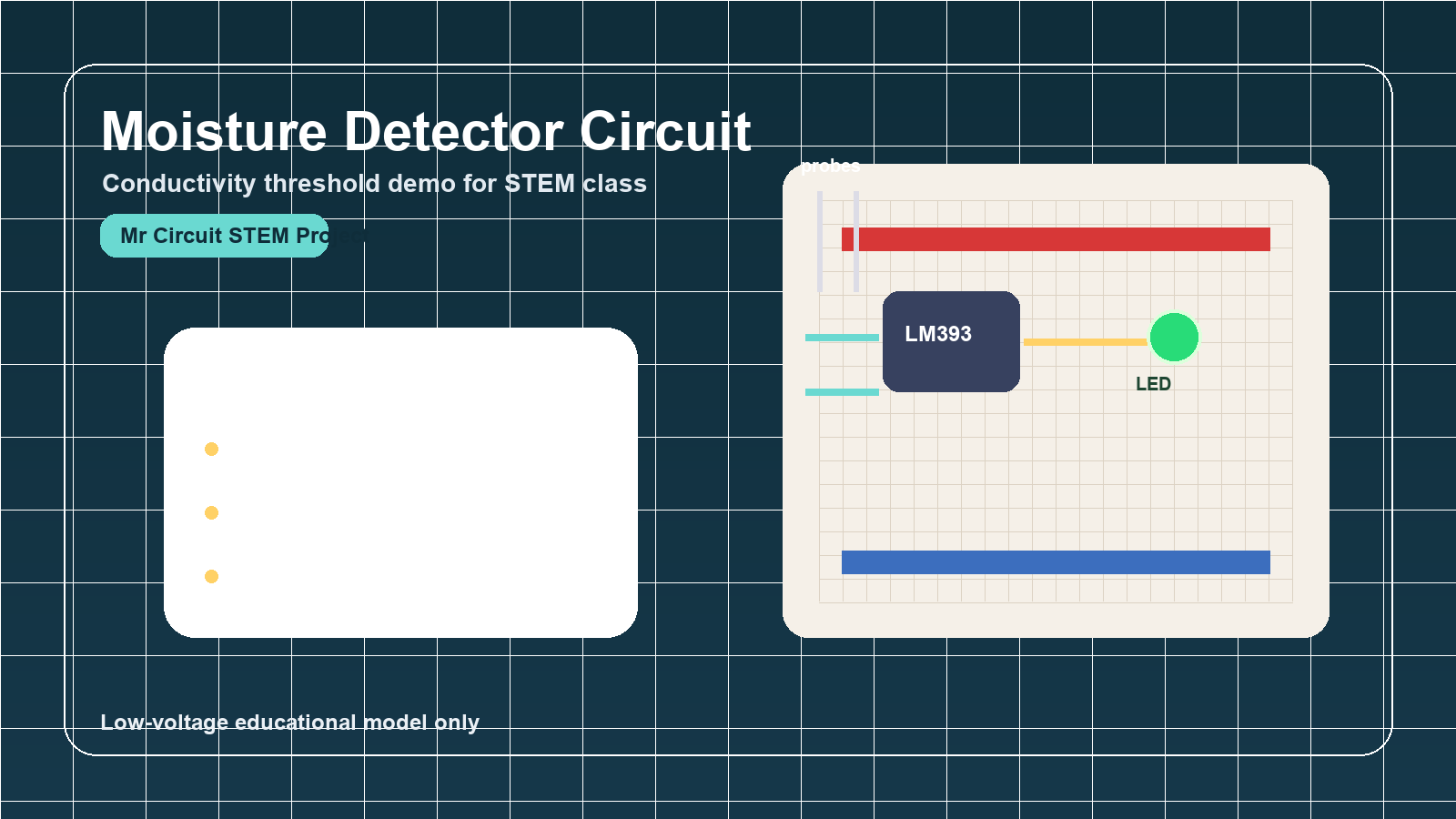

A simple moisture detector circuit uses two probes to sense conductivity and a comparator to decide when an LED or buzzer should turn on. When the material between the probes gets wetter, resistance drops, the sensor voltage changes, and the indicator switches at a chosen threshold.
Last updated: July 1, 2026.
Why this project works in a STEM class
This build gives students a concrete answer to a common question: how can a circuit react to the environment? A moisture detector does not need complicated coding to make that idea visible. It simply uses the fact that wetter materials usually conduct better than dry ones.
The SparkFun Soil Moisture Sensor page describes this clearly: two exposed pads act like a changing resistor because conductivity rises as moisture increases. That makes the project a strong bridge between resistance, current flow, and basic sensor behavior.
What the circuit is really detecting
This is best taught as a conductivity detector, not as a precision soil-science instrument. The two probe leads are placed into a damp paper towel, sponge, or cup of soil. If the material contains more water, it usually allows electricity to move more easily between the probes. That changes the voltage at the sensing point.
According to the SparkFun Soil Moisture Sensor Hookup Guide, readings need calibration because the exact value changes with the material being measured. That is useful in class because students can compare dry versus damp samples instead of pretending the circuit produces one universal number.
Why use a comparator
A comparator is useful when you want the circuit to make a yes-or-no decision. The TI LM393 product page describes the comparator family as a way to compare input levels. In classroom language, that means the chip can decide whether the probe signal is above or below a chosen threshold.
That is easier for beginners than expecting them to interpret every analog change. If the sample gets wet enough, the LED turns on. If it dries out, the LED turns off. TI's comparator design guidelines also explain why a small amount of hysteresis can reduce rapid flicker near the switching point. You do not need to overteach that word, but it is helpful to know why an indicator may chatter when the sample sits right at the threshold.
Parts list for a simple moisture detector
| Part | What it does |
|---|---|
| LM393 or similar comparator | Compares the probe signal to a chosen threshold |
| Two probe wires or metal contacts | Sense conductivity through the damp material |
| 10k potentiometer | Lets students adjust the threshold |
| LED and resistor | Provide a visible output |
| Optional active buzzer | Adds an audible alert |
| Battery pack, breadboard, jumper wires | Power and layout |
Wet versus dry behavior
| Condition | What students usually observe |
|---|---|
| Dry sample | Higher resistance between probes, weaker signal, indicator often off |
| Damp sample | Lower resistance between probes, stronger signal, threshold easier to cross |
| Very wet sample | Indicator turns on quickly and stays on more consistently |
Step-by-step build routine
- Place the comparator chip across the breadboard gap and connect power and ground rails first.
- Use two wire leads or simple probe contacts as the sensing input.
- Add a potentiometer so the comparison threshold can be adjusted.
- Connect the comparator output to an LED and resistor.
- Test the probes with a dry paper towel, then a damp one, and adjust the threshold until the difference is obvious.
- Add an optional buzzer only after the LED version works cleanly.
If students already built a simple night-light circuit, point out the similarity: both projects use a changing resistance to control a circuit response.
What to say while teaching it
Keep the explanation simple: the probes do not detect water magically. They detect that wet material often allows current to move more easily than dry material. That is the classroom value of the project. Students can see a physical condition become an electrical decision.
This is also a good moment to remind students that not every sensor is exact. The goal is not to claim perfect moisture measurement. The goal is to see how a threshold circuit turns a changing input into a usable output.
A practical classroom activity
Set out three labeled samples: dry, slightly damp, and very damp. Ask students to predict which one will trigger the LED first. Then have them adjust the potentiometer until the circuit separates the middle sample from the wettest one. That short routine builds observation, prediction, and calibration thinking in one lesson.
If you want a stronger measurement extension, pair the activity with the Mr Circuit Lab 2 Digital Multimeter STEM Kit so students can compare the indicator behavior with actual voltage checks.
Common mistakes in a first moisture-detector build
- Expecting one threshold setting to work for every material.
- Using rusty or inconsistent probe contacts and blaming the chip.
- Letting the probes touch each other directly.
- Forgetting that the LED still needs a resistor.
- Assuming flicker always means the circuit is broken when it may just be near the switching point.
When the output behaves strangely, return to the same routine used in the Mr Circuit troubleshooting checklist: power, ground, probe spacing, threshold setting, and output wiring.
What this project should and should not claim
This build is excellent for teaching sensor thresholds, but it is not an agricultural irrigation controller or a lab-grade moisture instrument. Keeping that boundary clear improves trust and prevents overstated claims.
For classroom planning beyond one project, the For Schools and Educators page is the better next step than turning the article into a product pitch.
FAQ
What does a moisture detector circuit actually sense?
It senses a change in conductivity or effective resistance between two probes as the material becomes wetter or drier.
Why use a comparator instead of connecting the probes straight to an LED?
A comparator gives the circuit a clear threshold, so the output behaves more like an on-or-off decision instead of a weak and confusing gradual change.
Can students test soil with this project?
Yes, but the reading is relative. Different soils and salts change conductivity, so it should be taught as a comparison activity, not a precision measurement.
Why does the LED flicker near the threshold?
The sample may be right on the edge of the switching point, so small changes in conductivity make the output toggle back and forth.
What is the best first material to test in class?
A dry paper towel versus a damp paper towel works well because the contrast is obvious and the setup is easy to repeat.
