A flip-flop circuit is a digital circuit that stores one bit of information. It can hold a 0 or a 1 at its output until a clock signal or control input tells it to change. That makes flip-flops a key building block for counters, registers, memory, and many other digital systems.
The simplest explanation: one bit of memory
Students often meet logic gates first as circuits that react immediately to inputs. A flip-flop adds a new idea: memory. If a logic gate is like a decision rule, a flip-flop is like a tiny note card that can remember one answer. The output is usually labeled Q, and the stored value at Q is either low or high, 0 or 1.
This is the first major step from combinational logic to sequential logic. In combinational logic, the current inputs decide the output. In sequential logic, the circuit also depends on what it was already storing.
Latch vs flip-flop
A latch and a flip-flop both store state, but they respond to timing differently. A basic latch can respond while its enable input is active. A flip-flop is usually edge-triggered, meaning it updates only at a brief clock transition such as a rising edge. All About Circuits describes this clock-edge behavior as the reason an edge-triggered circuit is called a flip-flop rather than just a latch.
| Term | Beginner meaning | Teaching phrase |
|---|---|---|
| Latch | Stores a bit while controlled by an enable signal. | It listens while the gate is open. |
| Flip-flop | Stores a bit when a clock edge arrives. | It samples at the clock tick. |
How a D flip-flop works
The D flip-flop is the easiest version for many students. D stands for data. On the active clock edge, the circuit copies the value at D and holds it at Q. If D is 1 at the clock edge, Q becomes 1. If D is 0 at the clock edge, Q becomes 0. Between clock edges, Q keeps the stored value.
That single behavior is powerful. It means a circuit can remember a switch position, hold a step in a sequence, divide a signal, or provide the storage bits used by a counter. A real device such as the Texas Instruments CD4013B contains D-type flip-flops with Q and complementary outputs plus set and reset controls, which is a useful manufacturer reference for older students.
A classroom prediction routine
- Draw a simple D, clock, and Q table on the board.
- Tell students that Q changes only when the clock edge happens.
- Give a sequence of D values before several clock ticks.
- Ask students to predict Q after each tick.

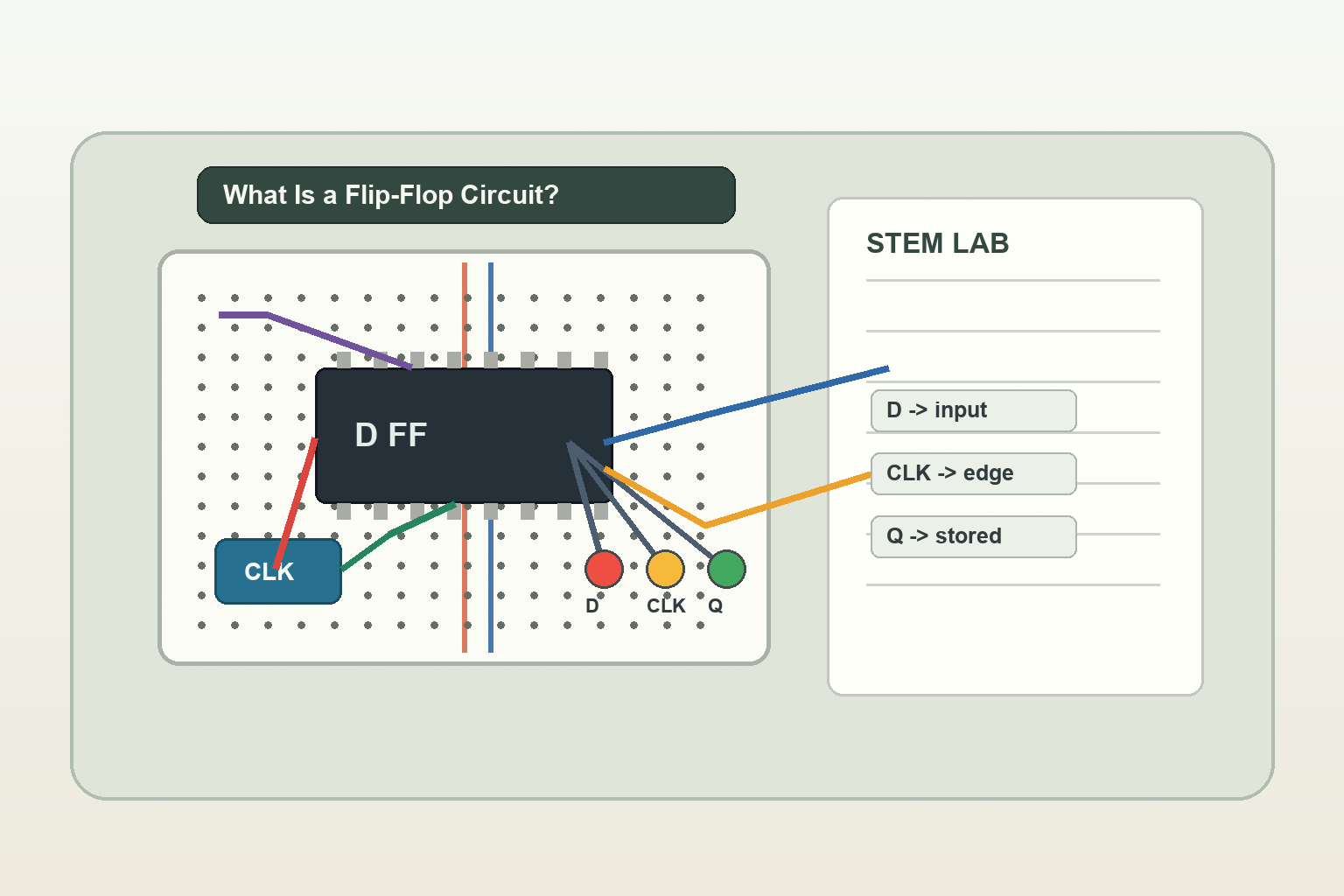

- Then demonstrate with LEDs, a simulator, or a prepared breadboard.
| Moment | D input | Clock event? | Q after event |
|---|---|---|---|
| Start | 0 | No | Previous value |
| Tick 1 | 1 | Yes | 1 |
| Between ticks | 0 | No | 1 |
| Tick 2 | 0 | Yes | 0 |
The table helps students see the point: changing D is not enough. Timing matters.
Why flip-flops matter
Flip-flops make digital systems able to store and step through information. A counter needs several flip-flops so each output bit can remember part of the count. A register uses several flip-flops to hold a small group of bits. A simple control circuit may use flip-flops to remember whether a machine is in one state or another.
This is also a strong bridge to computer science. A variable in code feels abstract, but a flip-flop shows students that stored information can be a real physical state in a circuit.
Common student mistakes
- Thinking Q always follows D. In a flip-flop, Q updates only at the correct clock edge.
- Ignoring the clock. The clock is not just another input; it controls when the data is sampled.
- Mixing up Q and Q-bar. Q-bar is the complement of Q, so it is normally the opposite state.
- Starting with too many flip-flop types. Teach D flip-flops first, then compare S-R or J-K after students understand one-bit memory.
How to connect this to earlier digital logic
Before teaching flip-flops, students should be comfortable with logic gates, truth tables, and binary inputs and outputs. After this lesson, a counter circuit is the natural next step because students can see several one-bit memory elements working together.
Sources and further reading
- All About Circuits: The S-R Latch
- All About Circuits: Edge-triggered Latches and Flip-Flops
- All About Circuits: The J-K Flip-Flop
- Texas Instruments CD4013B dual D-type flip-flop datasheet
FAQ
What is a flip-flop circuit in simple words?
It is a digital circuit that stores one bit, either 0 or 1, until a clock or control signal changes it.
Why is it called a flip-flop?
The name describes a circuit that can switch between two stable states and hold either state.
What does a D flip-flop do?
It copies the D input to the Q output on the active clock edge, then holds that value between clock edges.
Is a flip-flop the same as a latch?
They are related memory circuits, but a flip-flop is typically edge-triggered while a latch responds while an enable input is active.
Where are flip-flops used?
They are used in counters, registers, memory, timing circuits, state machines, and many digital control systems.
