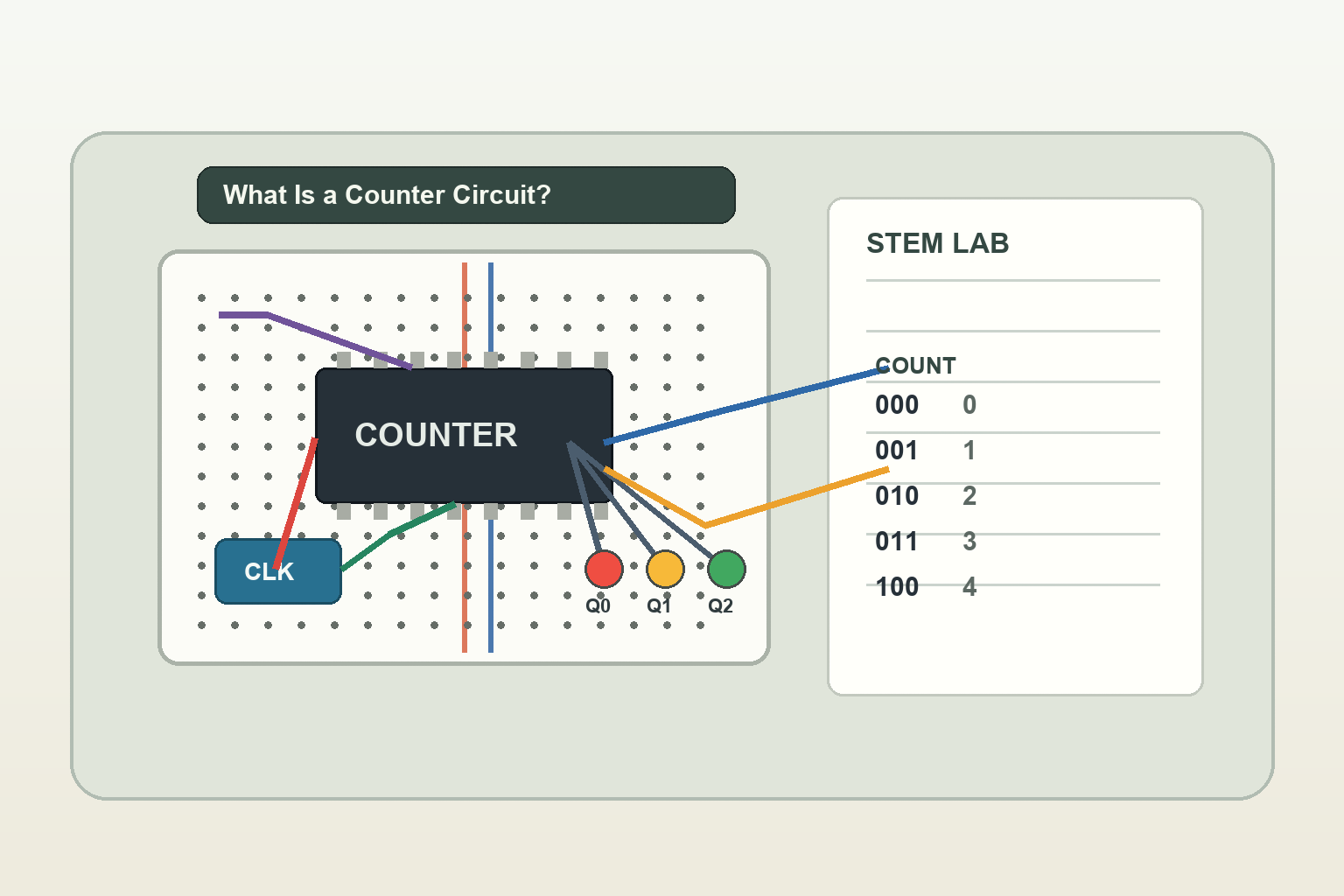

A counter circuit is a digital circuit that changes its output each time it receives a clock pulse. In beginner terms, it is a circuit that can count events: button presses, timing pulses, sensor trips, or steps in a sequence. The count is usually shown as binary outputs, often with LEDs labeled Q0, Q1, Q2, and so on.
What a counter circuit does
A counter connects time to number. Each pulse on the clock input tells the circuit to move to the next state. If the outputs are connected to LEDs, students can watch the pattern move from 000 to 001 to 010 to 011 and continue upward. That visual pattern is why counters are useful in digital electronics lessons: students can see that binary is not only a worksheet idea, but a real electrical state.
The key classroom phrase is: one pulse, one step. The pulse may come from a push button, a 555 timer, a microcontroller pin, or another logic circuit. The counter does not care what the pulse represents. It simply advances when the clock edge arrives.
Counter circuits and binary counting
Most beginner counters are easiest to explain as binary counters. Each output bit represents a place value. Q0 is the ones place, Q1 is the twos place, Q2 is the fours place, and Q3 is the eights place. When students understand that each LED has a place value, the output pattern becomes readable instead of mysterious.
| Pulse count | Q2 | Q1 | Q0 | Binary output |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 000 |
| 1 | 0 | 0 | 1 | 001 |
| 2 | 0 | 1 | 0 | 010 |
| 3 | 0 | 1 | 1 | 011 |
| 4 | 1 | 0 | 0 | 100 |
Before building, ask students to predict which LEDs will be on after the next pulse. That turns the counter from a blinking gadget into a reasoning exercise.
Why flip-flops matter in counters
Inside many counter designs, flip-flops hold the output states. A flip-flop can store one bit, and several flip-flops can store several bits. When a clock pulse arrives, the circuit decides which flip-flops should change. That is why a counter belongs to sequential logic: its output depends on the current input and on the state it was already holding.
All About Circuits explains asynchronous counters as cascaded flip-flops, where one stage can trigger the next. That is helpful for teachers because it gives a concrete mental model: each output stage hands timing information to the next stage. It also introduces a real engineering tradeoff. Ripple counters are simple, but their stages do not all change at exactly the same instant.
Asynchronous vs synchronous counters
| Counter type | Beginner explanation | Classroom note |
|---|---|---|
| Asynchronous or ripple counter | Output changes ripple from one stage to the next. | Good for visible LED demonstrations, but not ideal for fast precision timing. |
| Synchronous counter | Flip-flops respond to the same clock together. | Better bridge to real digital systems and faster designs. |
For a first class period, it is fine to focus on the visible idea of count sequence. Save propagation delay and timing diagrams for advanced students after they can already read the LED pattern.
A simple classroom demonstration
- Label three LEDs Q0, Q1, and Q2.
- Show the binary count table before powering the circuit.
- Use a push button or slow clock source so students can see one pulse at a time.
- After each pulse, pause and ask students to write the binary output.
- Have students convert the output to decimal using 1, 2, and 4 as place values.
- Ask what would happen if a fourth LED, Q3, were added.
This routine works well after students have read binary inputs and outputs with switches and LEDs and truth tables. A digital logic kit can make the build more manageable, but the concept can also be introduced with a simulator or teacher demo.
Common student mistakes
- Thinking the LEDs count in order from left to right. Label the place values clearly so Q0 is not treated like the biggest bit.
- Confusing clock pulse with power. Power keeps the circuit alive; the clock tells it when to step.
- Expecting decimal numerals. A counter output is usually binary unless another circuit decodes it for a display.
- Ignoring bounce on push buttons. A mechanical button can create multiple fast pulses unless the circuit or demonstration accounts for it.
Where counter circuits show up
Students meet counters in timers, scoreboards, frequency dividers, clocks, event counters, simple games, and digital displays. Counters are also a useful bridge between electronics and computer science because they show that storing and updating state is a physical circuit behavior, not only a programming idea.
Sources and further reading
- All About Circuits: Binary Count Sequence
- All About Circuits: Asynchronous Counters
- All About Circuits: Synchronous Counters
- Texas Instruments SN74HC161 counter datasheet
FAQ
What is a counter circuit in simple words?
It is a digital circuit that changes its output each time it receives a clock pulse, so it can count events or timing steps.
Is a counter circuit analog or digital?
A counter circuit is digital because its outputs are logic states such as 0 and 1.
Why do counters use flip-flops?
Flip-flops store bits. A counter needs stored bits so it can remember the current count and move to the next count.
What is a ripple counter?
A ripple counter is an asynchronous counter where changes pass from one flip-flop stage to the next instead of all stages changing at the exact same time.
What is the easiest way to teach counters?
Use a slow button or clock, three labeled LEDs, and a binary count table so students can predict each step before they observe it.
