NAND and NOR Gates for Beginners

Learn what NAND and NOR gates do, how their truth tables work, and why teachers call them universal gates in beginner digital logic.

T
The Mr Circuit Team Mr Circuit
July 22, 2026 4 min read

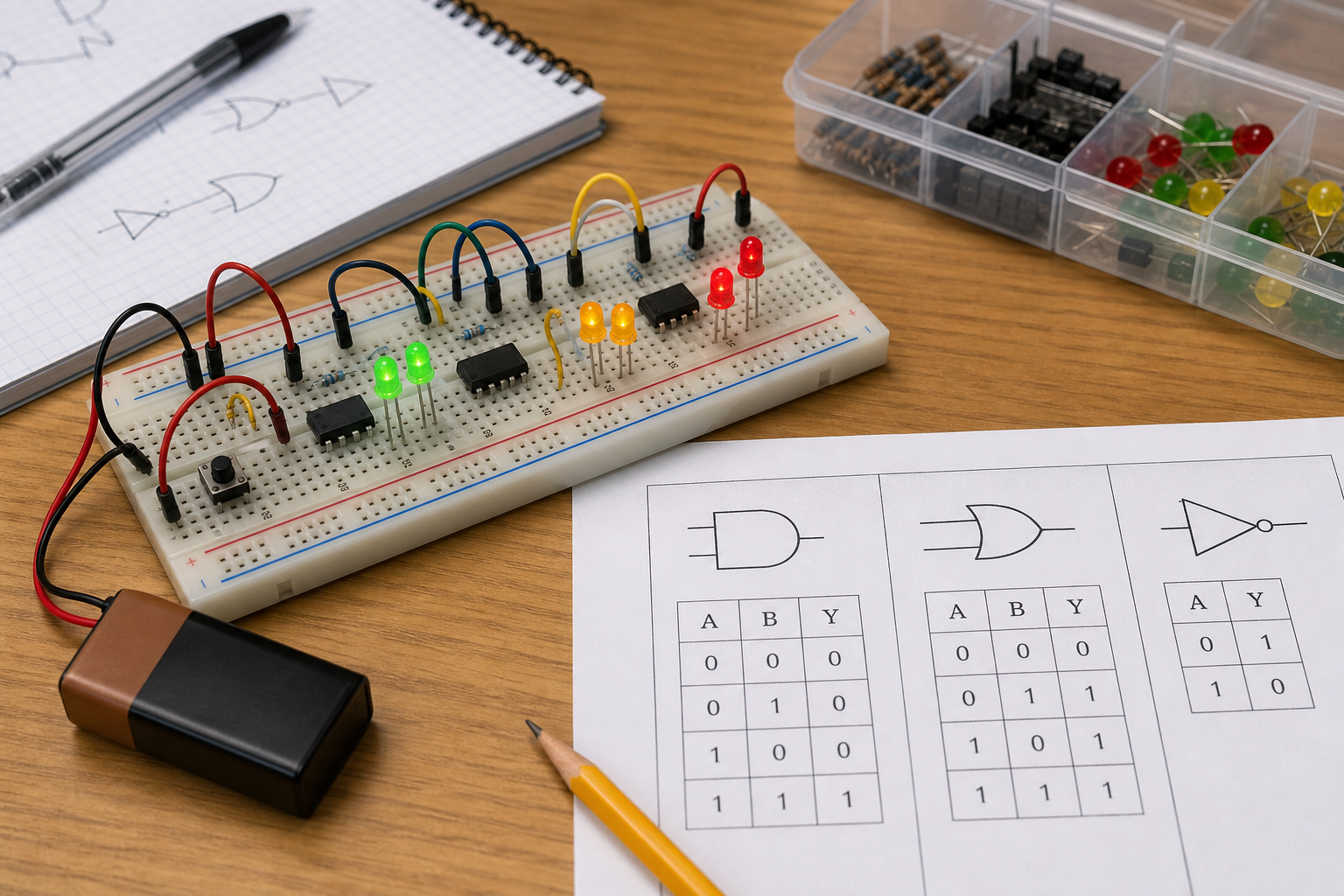

Breadboard digital logic lesson with labeled inputs and LEDs showing NAND and NOR gate behavior

NAND and NOR gates are logic gates that invert the results of AND and OR. A NAND gate turns off only when both inputs are on, while a NOR gate turns on only when both inputs are off. For beginners, they matter because they show students how a simple rule can be flipped and still stay predictable.

Last updated: July 6, 2026

They also matter because teachers will often hear that NAND and NOR are universal gates. That sounds advanced, but the classroom idea is simple: if students understand how one clear rule works, they can start building many other logic behaviors from it.

What a NAND gate does

Analog Devices defines NAND as “NOT AND.” In plain language, that means a NAND gate checks whether both inputs are 1 and then flips the result. If both inputs are on, the output becomes 0. In every other two-input case, the output is 1.

That makes NAND useful for beginner lessons because it creates a visible “everything is on except one case” pattern. Students can test it with two switches and one LED, then compare the single off-output case with the truth table.

What a NOR gate does

NOR means “NOT OR.” It checks whether either input is on and then flips that result. The output becomes 1 only when both inputs are 0. As soon as either input turns on, the output turns off.

That creates the opposite beginner pattern from NAND. With NOR, there is only one output-on case instead of one output-off case. Students can see that the inversion is not random. It is a strict rule that changes every time in the same way.

Gate Plain-language rule When output is 1 When output is 0
NAND NOT both Any case except 11 Only when both inputs are 1
NOR NOT either Only when both inputs are 0 Any case with at least one 1

How NAND and NOR compare with AND and OR

The easiest way to teach these gates is to start with rules students already know. AND means both conditions must be true. OR means at least one condition must be true. NAND flips AND. NOR flips OR.

That means the truth-table work should be done in pairs:

  • Teach AND and then show NAND as the inverted version.
  • Teach OR and then show NOR as the inverted version.
  • Keep the input combinations identical so students focus on the changed output rule.

This connects naturally to the existing Mr Circuit posts on What Are Logic Gates?, Truth Tables: A Student-Friendly Guide, and Binary Inputs and Outputs Explained With Switches and LEDs.

Why teachers hear the phrase universal gates

All About Circuits explains that NAND and NOR have a special property called universality. Inference from that source: the practical classroom meaning is that enough NAND gates alone, or enough NOR gates alone, can be combined to recreate the behavior of other common gates.

Most beginner students do not need the full construction diagrams on day one. What they do need is the idea that digital systems are built from reusable rules. A universal gate is a strong example of that idea because it shows that one rule family can be reused to make other logic behaviors.

A simple classroom lesson sequence

  1. Review binary inputs as 0 and 1.
  2. Show AND and OR first with switches or paper cards.
  3. Introduce the word invert and connect it to NOT.
  4. Show NAND as AND plus inversion.
  5. Show NOR as OR plus inversion.
  6. Ask students to predict the one “special case” for each gate before testing.
  7. Use an LED, simulator, or truth table to confirm the output.

That routine keeps the lesson conceptual and visible. Students do not have to memorize symbols first. They can reason from the rule and then check whether the output matches.

Common mistakes students make

  • Thinking NAND and NOR are completely new ideas instead of inverted versions of gates they already know.
  • Memorizing the names without comparing the truth tables.
  • Missing the single special case in each table.
  • Confusing a wiring mistake with a logic mistake.
  • Treating universality like a vocabulary word instead of a design idea.

The fastest fix is to put the truth tables side by side and ask students what changed. If they can explain why only one row flips, they usually understand the concept.

Where Mr Circuit fits naturally

If you want students to move from paper truth tables into a real classroom build, the Mr Circuit Lab 3 Digital Logic Gates STEM Kit is the natural product-adjacent resource. It works best after students already understand broad logic ideas and are ready to test visible input-output rules in a hands-on lesson.

For teacher planning, internal purchasing questions, or program rollout support, the For Schools and Educators page is the better planning link.

Frequently Asked Questions

What is the easiest way to explain a NAND gate?

Tell students it is an AND gate with the answer flipped. The only time the output becomes 0 is when both inputs are 1.

What is the easiest way to explain a NOR gate?

Tell students it is an OR gate with the answer flipped. The only time the output becomes 1 is when both inputs are 0.

Why are NAND and NOR called universal gates?

Because enough NAND gates alone, or enough NOR gates alone, can be combined to make the other basic logic functions.

Do students need to build these with chips to understand them?

No. Students can learn them through switch cards, truth tables, simulators, or simple visible outputs before working with chips.

Which should teachers introduce first?

Usually AND and OR first, then NAND and NOR as inverted versions. That reduces confusion and makes the patterns easier to see.
