Mr Circuit Lab 1 PDF Lesson Plans – 4 Lessons + 30 Experiments (34 Total)

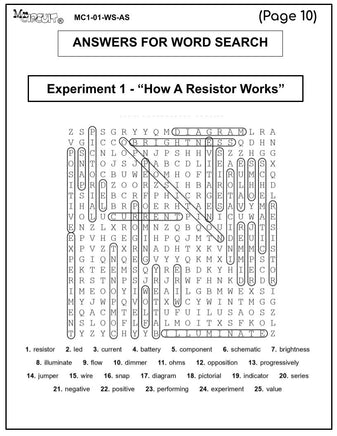

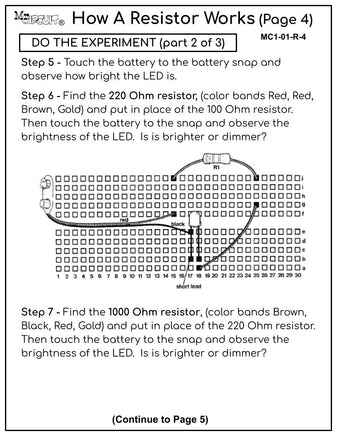

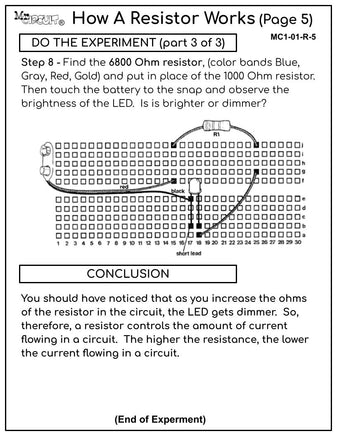

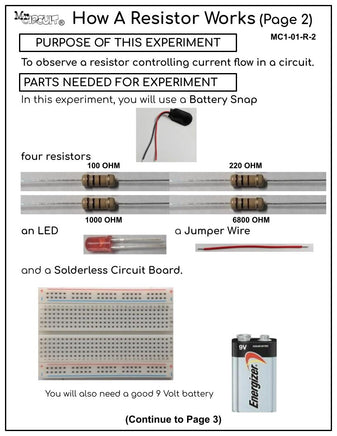

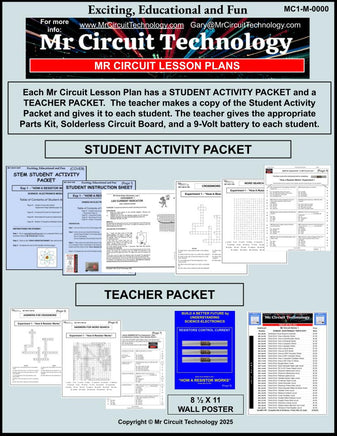

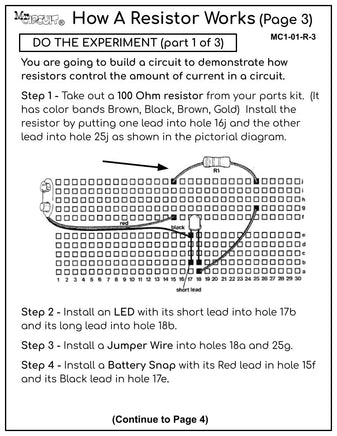

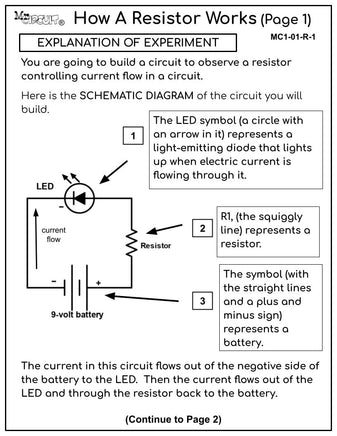

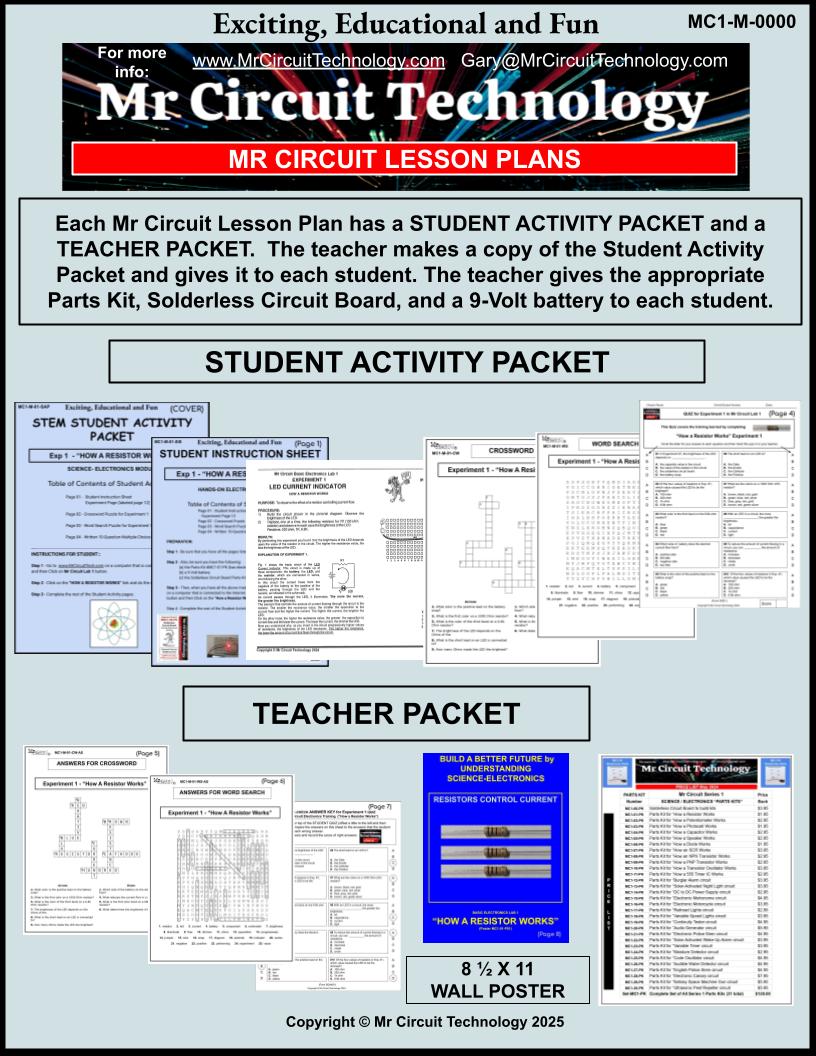

Mr Circuit Lab 1 Digital PDF Package After payment, the PDF download link will be emailed to the email address used for your order. This complete package includes 4 lessons and 30 experiments — 34 lesson/experiment materials in total. The files are provided digitally, so teachers can print the materials they need for their students and source the electronic components locally. No physical product or components will be shipped. Included experiments How a Resistor Works How a Potentiometer Works How a Photocell Works How a Capacitor Works How a Speaker Works How a Diode Works How an SCR Works How an NPN Bipolar Transistor Works How a PNP Bipolar Transistor Works How a Two-Transistor Oscillator Works How a 555 Timer IC Works Burglar Alarm Circuit Solar-Activated Night Light Circuit DC-to-DC Power Supply Circuit Electronic Metronome Circuit Electronic Motorcycle Circuit Railroad Lights Circuit Variable Speed Lights Circuit Continuity Tester Circuit Audio Generator Circuit Electronic Police Siren Circuit Solar-Activated Wake-Up Alarm Circuit Variable Timer Circuit Moisture Detector Circuit Code Oscillator Circuit Audible Water Detector Circuit English Police Siren Circuit Electronic Canary Circuit Fantasy Space Machine Gun Circuit Ultrasonic Pest Repeller Circuit Complete Lab 1 PDF digital package: $79.90
